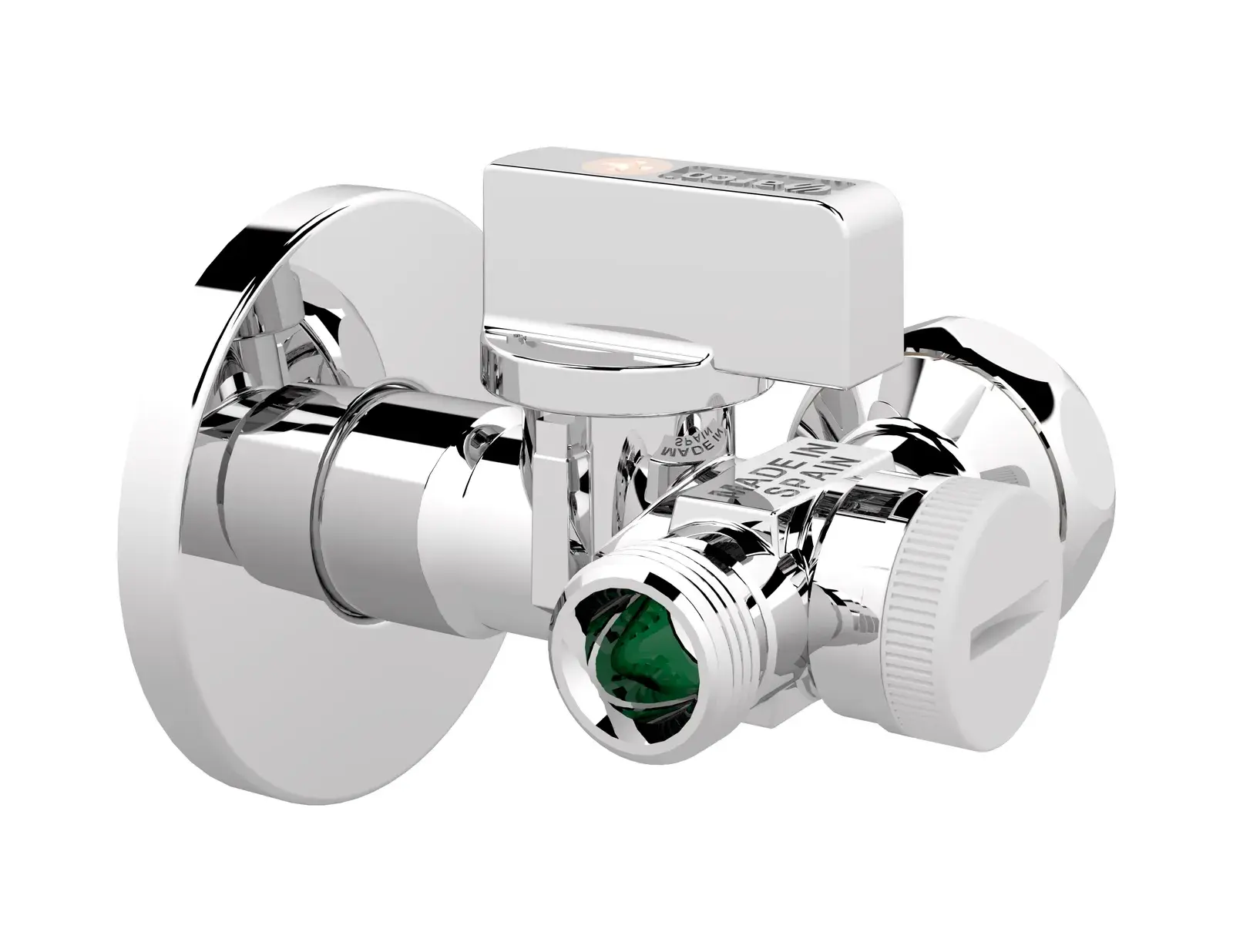

Dual washing machine valve with filter Dual Filter 1/2" M x 3/8" M x 3/4" M DUAL29
The ARCO DUAL29 from the Dual Filter range is a dual washing machine valve with filter and a metal handle. DUAL FILTER is a quarter-turn angle ball valve for surface mounting with built-in filter and two simultaneous outlets in a single body. This valve allows the water supply to be cut off independently to the equipment connected at each of its two outlets, providing the following advantages: The VITAQ system increases the valve life span and flow comfort in hard water areas.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 1/2" M x 3/8" M x 3/4" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- A single water inlet and two simultaneous outlets.
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- Built-in filter to prevent small solids from entering the faucet.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring, ensures external leaktightness.
- Metal handle.
- Avoids unnecessary work when there is only one water point and two services are required.
- Fewer threaded fittings.
- More than 80% reduction in installation time.
- Compact, less installation space needed.
- Increased reliability and safety of the installation thanks to fewer connections.
Application
Designed for indoor plumbing installations, allowing to individually cut off the water supply to each of the 2 services connected to each outlet.
The filter makes them especially suitable for preventing the entry of small solids and other impurities, protecting elements of the installation such as the taps.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | DUAL29 |
| Brand | ARCO |
| Series | Dual Filter |
| Connection | 1/2" M x 3/8" M x 3/4" M (supplier notation: 1/2M-3/8M X 3/4M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material rosette | Stainless steel |
| Material o-rings | NBR |
| Material handle | Zamak, chrome plated |
| Material filter | Anti-lime polymer, VITAQ |
| Material o-ring | NBR |
| Material stem-ball | Anti-lime polymer, VITAQ |
| Material seat | NBR |
| Material flat joint | NBR |
| Dimension A | 79 mm |
| Dimension B | 45 mm |
| Dimension C | 43 mm |
| Dimension D | 59 mm |
| Packaging | Individual (outer box 40 pcs) |
| EAN code | 8428519055014 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
