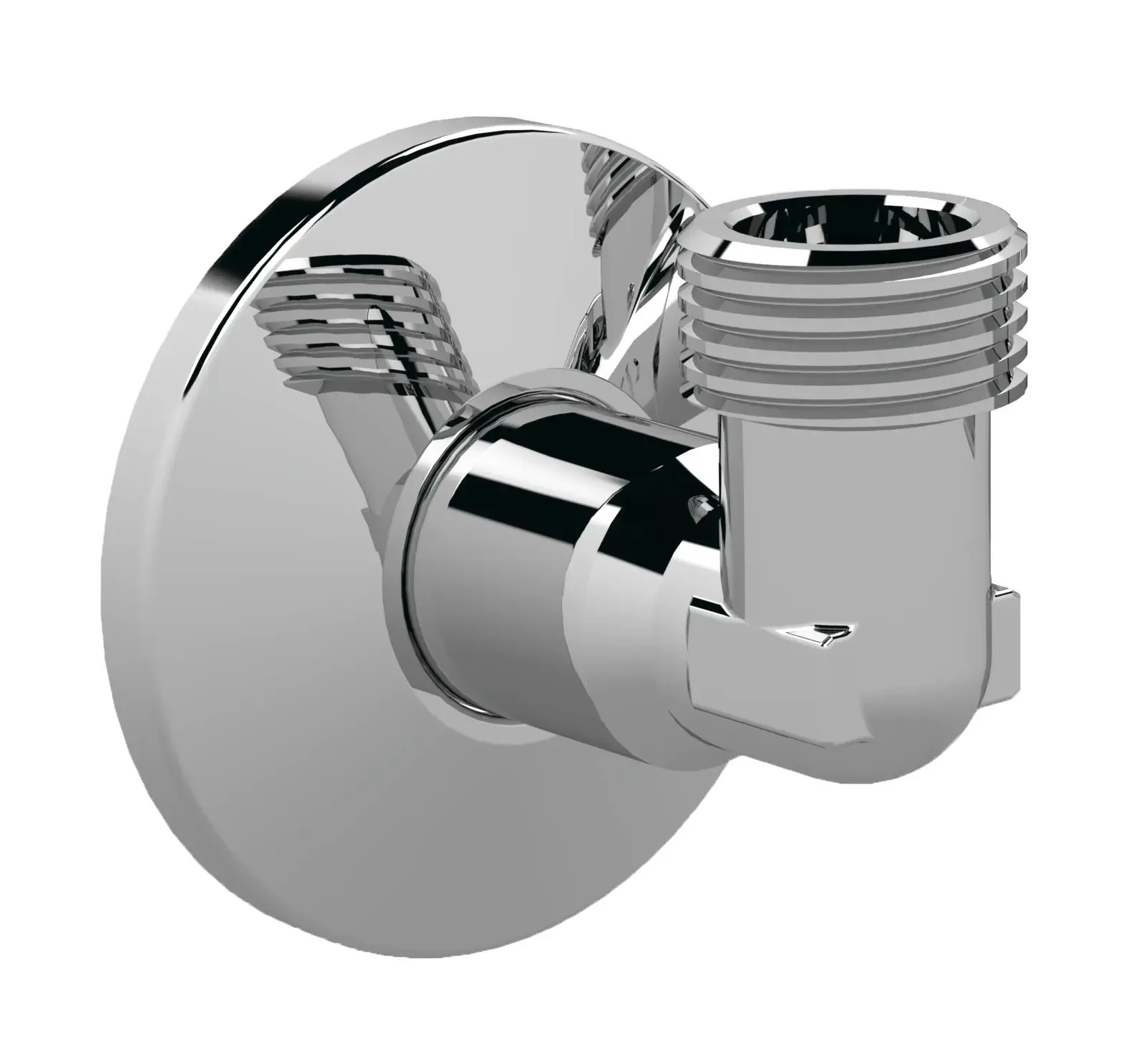

Elbow with rosette 1/2" M x 3/8" M B3152
The ARCO B3152 is an elbow with rosette. One-piece elbow with the same dimensions as an A-80, designed to connect a flexible hose and prevent it from bending. Due to its size and cross section, it does not reduce the flow rate.
This version has a 1/2" M x 3/8" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- Easy installation thanks to its design with two planes in the body.
- Strong one-piece body construction for secure installations.
- Longer valve life span: consistent wall thickness in the curved area.
- Includes stainless steel rosette to cover imperfections in the enclosure.
Application
Outlets for water heaters and instantaneous heaters, as well as any installation that does not require an appliance valve. Hot and cold sanitary water installations.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | B3152 |
| Brand | ARCO |
| Connection | 1/2" M x 3/8" M (supplier notation: 1/2M-3/8M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material rosette | Stainless steel |
| Material body | Brass CW617N, chrome plated |
| Dimension A | 56 mm |
| Dimension B | 48 mm |
| Dimension C | 24 mm |
| Packaging | Supplier packaging: inner box 25 pcs, outer box 50 pcs |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Hygienic Certificate B-BK-60110.0912.2024 |
| EAN code | 8428519012536 |
