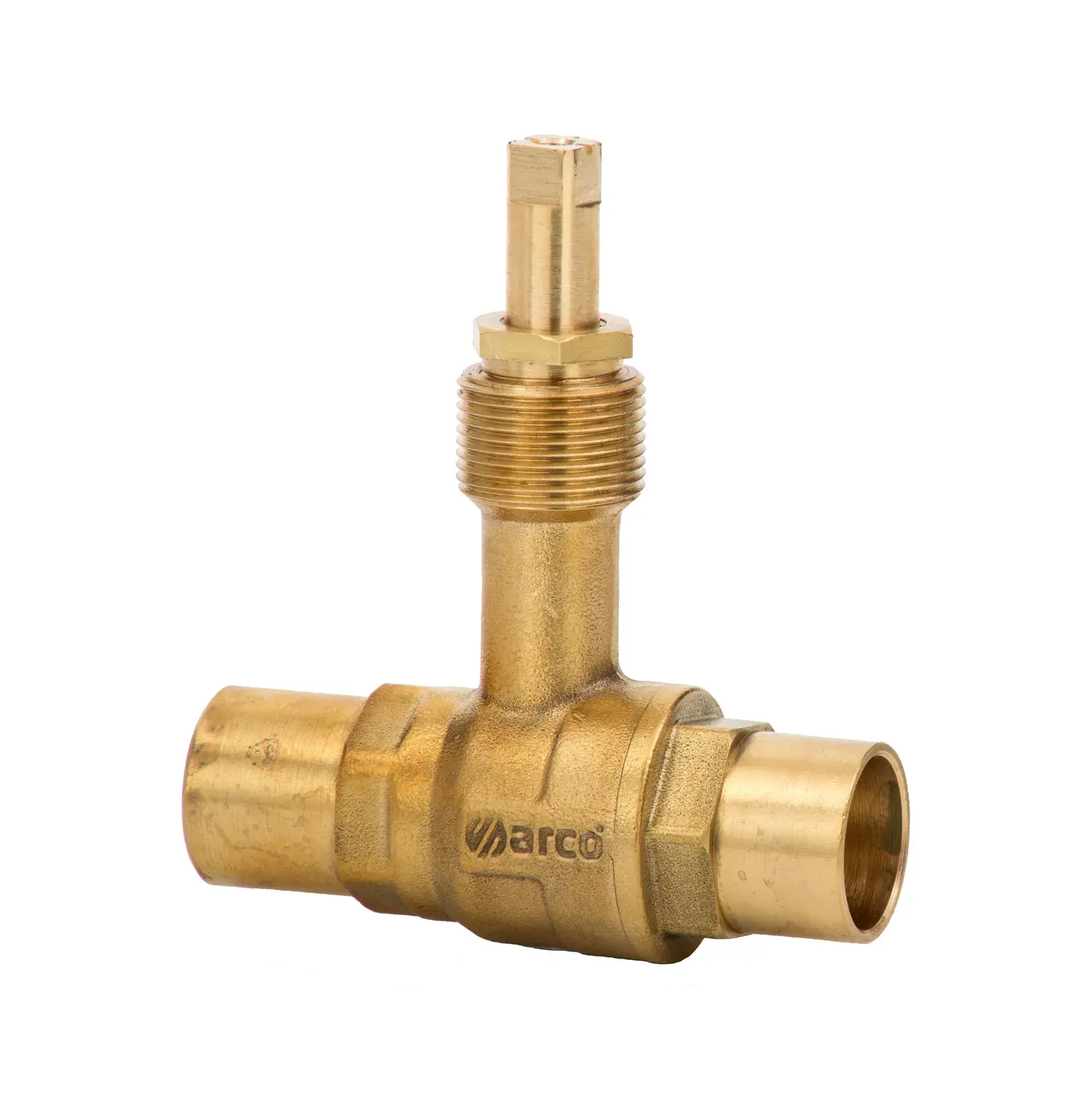

Embedded ball valve for soldering Texas 18 mm x 18 mm 36225
The ARCO 36225 from the Texas range is an embedded ball valve for soldering. Ball valves with manual operation for embedded installations in the wall. The connection to the pipe is made by threaded ends or by welding for copper pipes. Wide range of handles, both in design and finishes, adapting to the set of elements of the premises or room.
This version has a 18 mm x 18 mm connection, a maximum working pressure of PN 30 bar and a temperature range of -20 to 120 °C. The body is made of Brass CW617N, brass color.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- Wide range of handles available, both in design and finishes.
- Valve-handle assembly regulation system for perfect fixing and adaptation to the wall.
- 100% valves are tested for inner leakage.
- Without reducing flow.
- Strong construction for safe installations.
- Nickel-free in the passage of water.
Application
Designed for drinking water and domestic hot water installations recessed in the wall.
And in general, all those applications that require a valve capable of shutting off the supply of a fluid, guaranteeing tightness in accordance with the specified service conditions.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 36225 |
| Brand | ARCO |
| Series | Texas |
| Connection | 18 mm x 18 mm (supplier notation: 18-18) |
| Max. pressure | PN 30 bar |
| Temperature | -20 to 120 °C |
| Material body | Brass CW617N, brass color |
| Material ball | Brass CW614N, chrome plated |
| Material stem | Brass CW614N, brass color |
| Material seat | PTFE |
| Dimension A | 73 mm |
| Dimension B | 72 mm |
| Packaging | Supplier packaging: inner box 5 pcs, outer box 20 pcs |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1176.2023 |
| EAN code | 8428519048139 |
