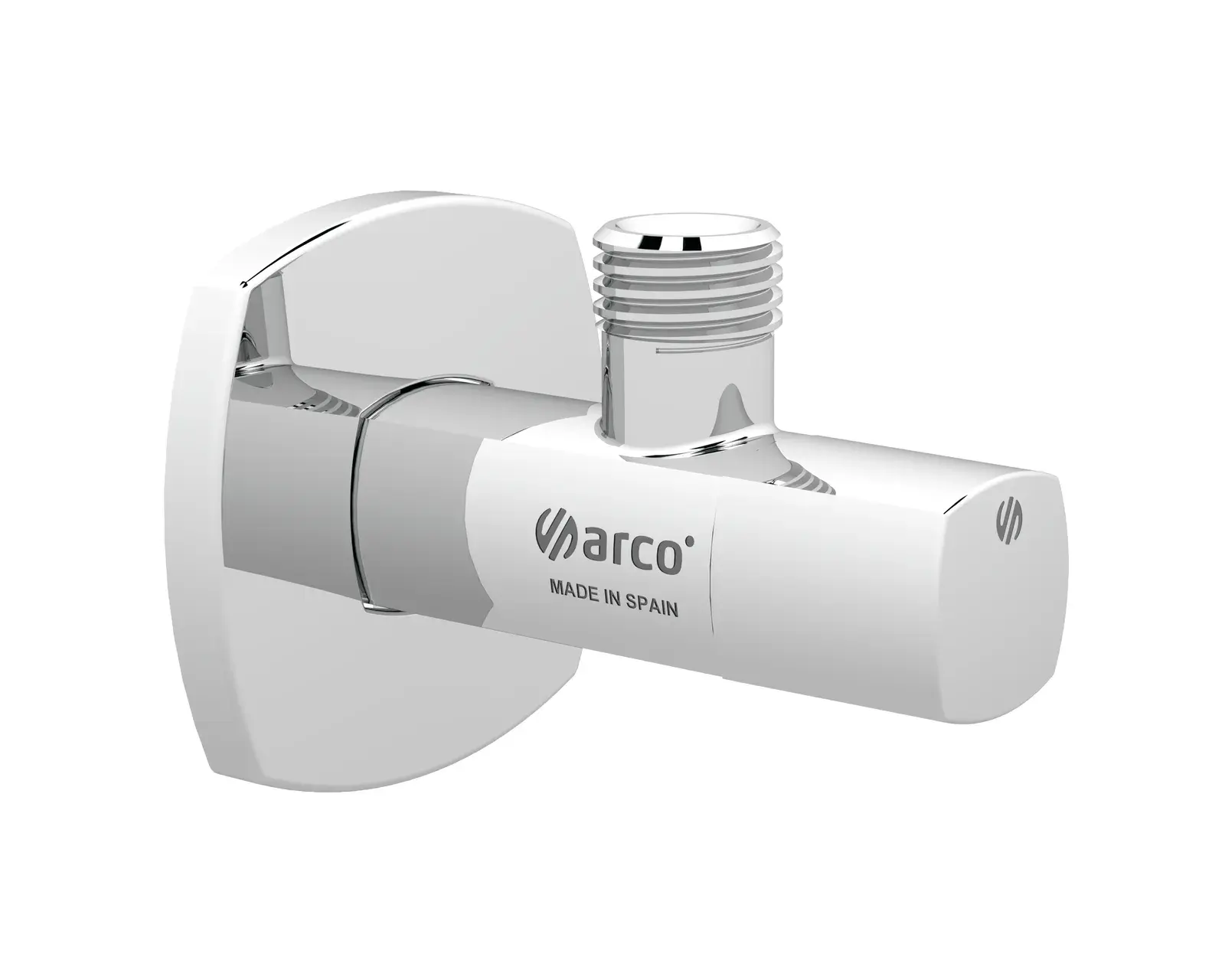

Extra polished chrome angle valve A-80 Lipstick 1/2" M x 3/8" M 202502
The ARCO 202502 from the A-80 Lipstick range is an extra polished chrome angle valve with a metal handle. Quarter-turn angle ball valves for surface mounting with manual operation where the connection is made by threaded ends. Unique design and finishes for the most demanding installations. The VITAQ system increases the valve life span and flow comfort in hard water areas.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 1/2" M x 3/8" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N.
Features
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- Unique design, maximum performance.
- Polished surfaces without roughness.
- European Brass, DW (4MS) quality for use in drinking water installations.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 202502 |
| Brand | ARCO |
| Series | A-80 Lipstick |
| Connection | 1/2" M x 3/8" M (supplier notation: 1/2M-3/8M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N (depending on model) |
| Material rosette | ABS or Zamak (depending on model) |
| Material seat | NBR |
| Material o-rings | NBR |
| Material stem-ball | Anti-lime polymer, VITAQ |
| Material handle | Zamak (depending on model) |
| Dimension A | 82 mm |
| Dimension B | 48 mm |
| Dimension C | 28 mm |
| Packaging | Individual (inner box 6 pcs, outer box 12 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 236 |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
| Certificate | Acoustic certificate PAI-IX 047/IA |
| EAN code | 8428519079942 |
