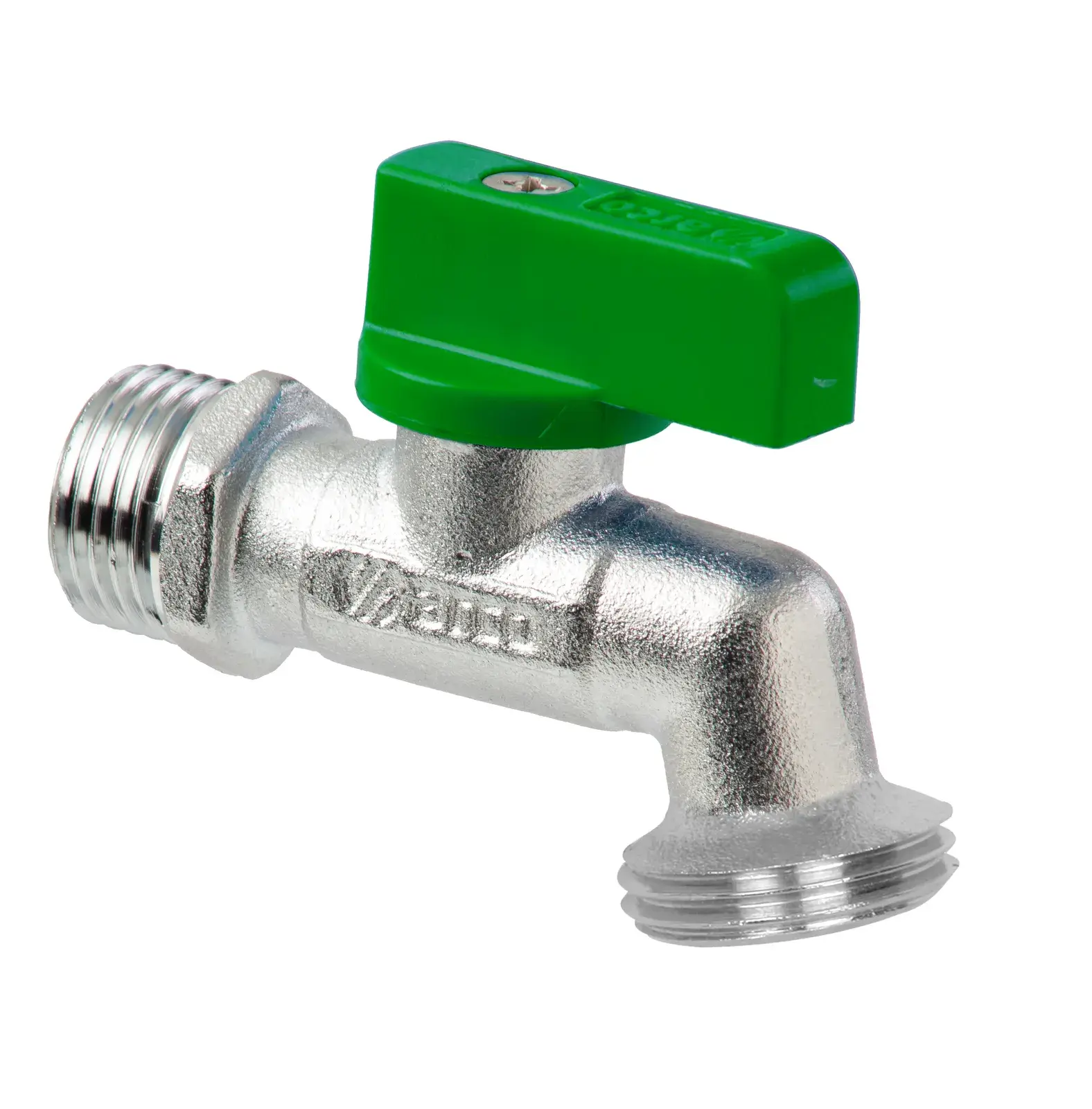

Garden tap Nano with green handle 1/2" M NPT x 3/4" hose thread 00463
The ARCO 00463 from the Nano range is a garden tap with green handle. Quarter-turn ball tap with manual operation for plumbing installations, connected by threaded ends. The VITAQ system increases the life span of the tap and keeps the flow comfortable in hard water areas.
VITAQ anti-limescale system for a longer life, with a carefully designed finish.
This version has a 1/2" M NPT x 3/4" hose thread connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 90 °C. The body is made of brass.
Features
- VITAQ system: longer life and less limescale, also at higher temperatures.
- Full flow is maintained for lasting comfort at the tapping point.
- European brass in DW (4MS) quality for use in drinking water installations.
- 100% of the taps are tested for internal leakage.
- Strong one-piece body for a reliable installation.
- Double O-ring for external tightness.
Application
Specially designed for outdoor installations such as gardens, terraces and yards, or for indoor installations where a service tap is required.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 00463 |
| Brand | ARCO |
| Series | Nano |
| Connection | 1/2" M NPT x 3/4" hose thread (supplier notation: 1/2M [NPT]-3/4HT) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 90 °C |
| Material o-ring | EPDM |
| Material handle | PA, green |
| Material body | Brass CW617N, chrome plated |
| Material seat | NBR |
| Dimension A | 76 mm |
| Dimension B | 35 mm |
| Dimension C | 32 mm |
| Packaging | Per piece (outer box 48 pcs) |
| Technical sheet | Download PDF |
