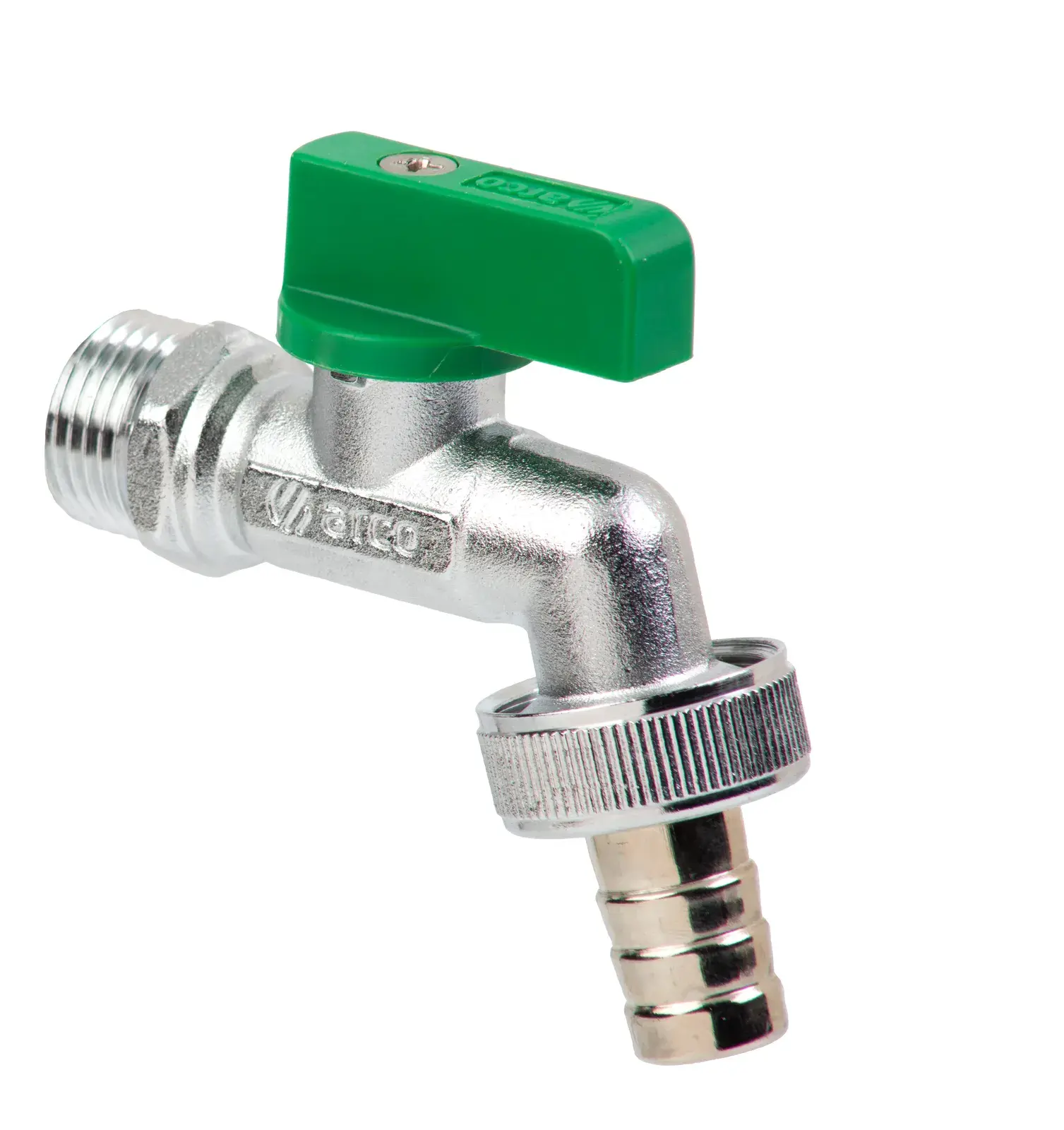

Garden tap Nano with green handle 1/2" M x 1/2" M, 15 mm hose nozzle 0046001
The ARCO 0046001 from the Nano range is a garden tap with green handle. Quarter-turn ball tap with manual operation for plumbing installations, connected by threaded ends. The VITAQ system increases the life span of the tap and keeps the flow comfortable in hard water areas. A hose connection nozzle is included.
VITAQ anti-limescale system for a longer life, with a carefully designed finish.
This version has a 1/2" M x 1/2" M, 15 mm hose nozzle connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 90 °C. The body is made of brass.
Features
- VITAQ system: longer life and less limescale, also at higher temperatures.
- Full flow is maintained for lasting comfort at the tapping point.
- European brass in DW (4MS) quality for use in drinking water installations.
- 100% of the taps are tested for internal leakage.
- Strong one-piece body for a reliable installation.
- Double O-ring for external tightness.
Application
Specially designed for outdoor installations such as gardens, terraces and yards, or for indoor installations where a service tap is required.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 0046001 |
| Brand | ARCO |
| Series | Nano |
| Connection | 1/2" M x 1/2" M, 15 mm hose nozzle (supplier notation: 1/2M-1/2M X 15) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 90 °C |
| Material body | Brass CW617N, chrome plated |
| Material handle | PA, green |
| Material o-rings | EPDM |
| Material o-ring | NBR |
| Material nozzle | Brass CW617N, nickel plated |
| Material seat | NBR |
| Dimension A | 78 mm |
| Dimension B | 35 mm |
| Dimension C | 32 mm |
| Packaging | Per piece (inner box 12 pcs, outer box 24 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 236 |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1176.2023 |
