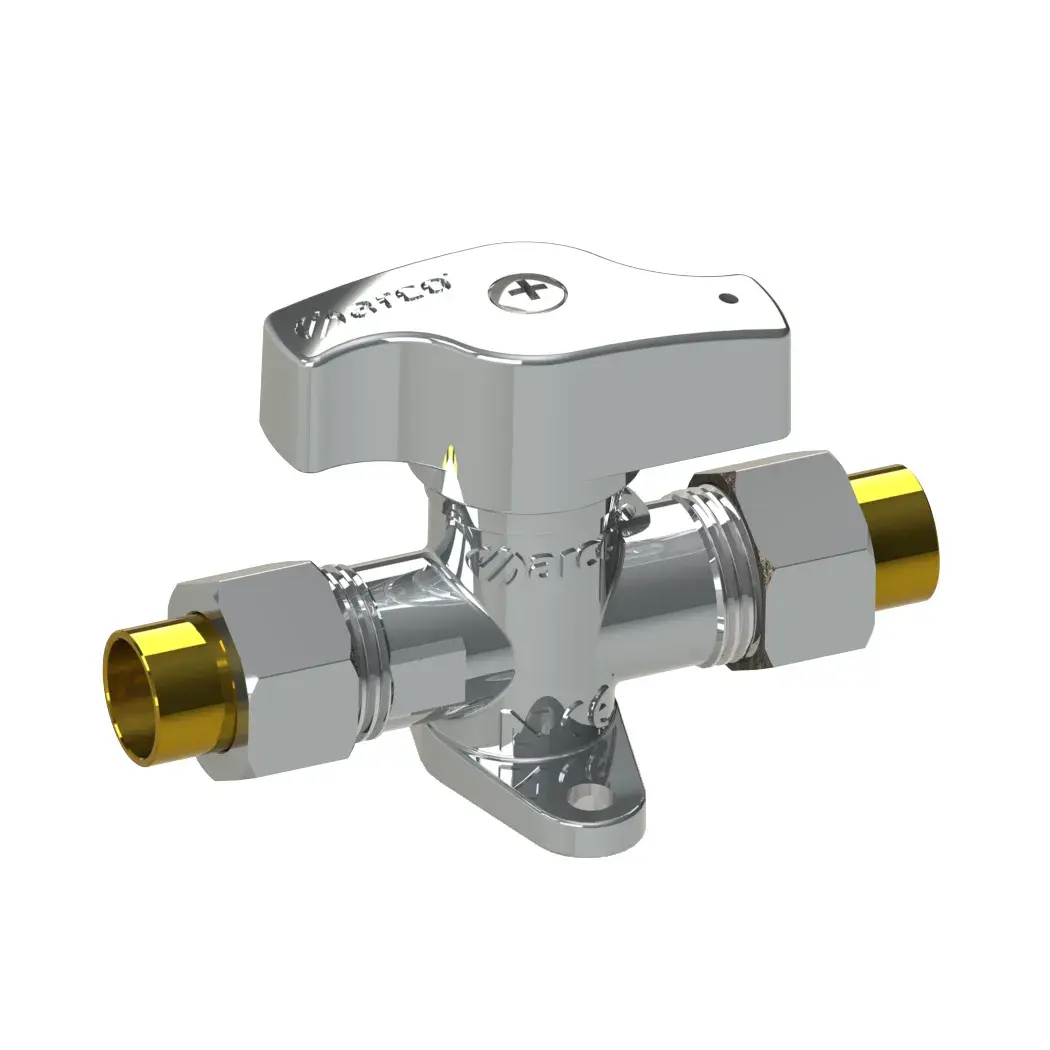

Gas appliance valve V-82 for soldering 10 x 10 mm, dimension A 79 mm 00905
The ARCO 00905 from the V-82 range is a gas appliance valve for soldering. Quarter-turn metal ball valve of the V series for connecting gas appliances. The valve cannot be dismantled, so the parts in contact with gas cannot be tampered with, and the handle locks automatically in the closed position.
This version has a 10 x 10 mm connection, a maximum operating pressure of MOP 5 and a temperature range of -40 to 60 °C. The body is made of brass.
Application
For domestic and commercial gas installations as an appliance or in-line valve (not for burial or embedding). Suitable for gases of the 1st, 2nd and 3rd family according to EN 437; maximum operating pressure MOP 5, temperature class -40 to 60 °C.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 00905 |
| Brand | ARCO |
| Series | V-82 |
| Connection | 10 x 10 mm (supplier notation: 10-10) |
| Max. operating pressure | MOP 5 (5 bar) |
| Temperature | -40 to 60 °C |
| Material body | Brass |
| Dimension A | 79 mm |
| Dimension B | 50 mm |
| Dimension C | 38 mm |
| Packaging | Per piece (outer box 45 pcs) |
| EAN code | 8428519003374 |
| Technical sheet | Download PDF |
| Certificate | Certificate AENOR 053/000135 for manually operated ball valves for installations using gaseous fuels - DN10 |
