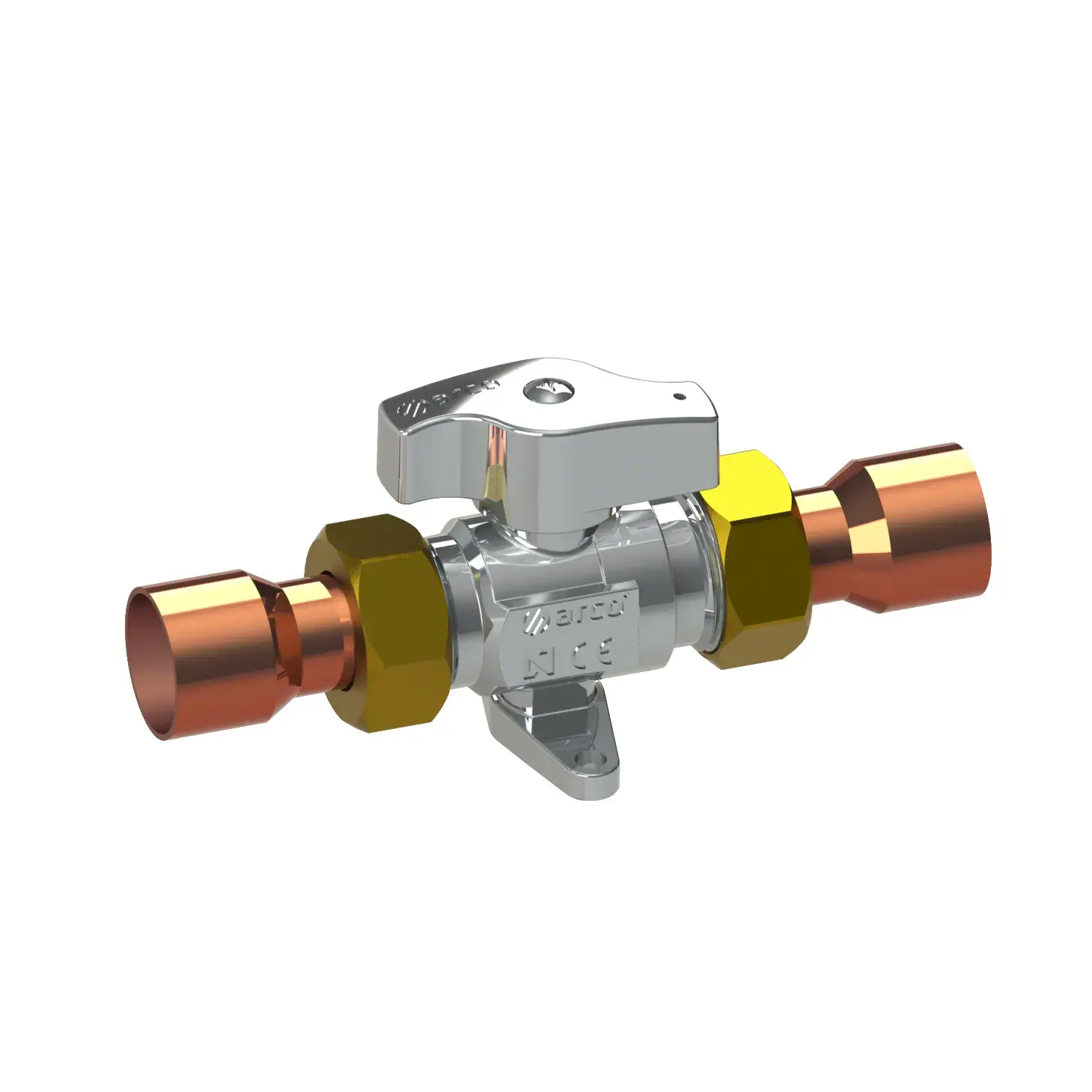

Gas appliance valve V-83 with solder tails 22 mm solder x 22 mm solder 00601R
The ARCO 00601R from the V-83 range is a gas appliance valve with solder tails. Quarter-turn metal ball valve of the V series for connecting gas appliances. The valve cannot be dismantled, so the parts in contact with gas cannot be tampered with, and the handle locks automatically in the closed position.
This version has a 22 mm solder x 22 mm solder connection, a maximum operating pressure of MOP 5 and a temperature range of -40 to 60 °C. The body is made of brass.
Application
For domestic and commercial gas installations as an appliance or in-line valve (not for burial or embedding). Suitable for gases of the 1st, 2nd and 3rd family according to EN 437; maximum operating pressure MOP 5, temperature class -40 to 60 °C.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 00601R |
| Brand | ARCO |
| Series | V-83 |
| Connection | 22 mm solder x 22 mm solder (supplier notation: Soldening 22 X 3/4-3/4 X Solder 22) |
| Max. operating pressure | MOP 5 (5 bar) |
| Temperature | -40 to 60 °C |
| Material body | Brass |
| Dimension A | 133 mm |
| Dimension B | 50 mm |
| Dimension C | 38 mm |
| Packaging | Per piece (outer box 28 pcs) |
| EAN code | 8428519055458 |
| Technical sheet | Download PDF |
| Certificate | Certificate AENOR 053/000091 for manually operated ball valves for installations using gaseous fuels - DN15 |
