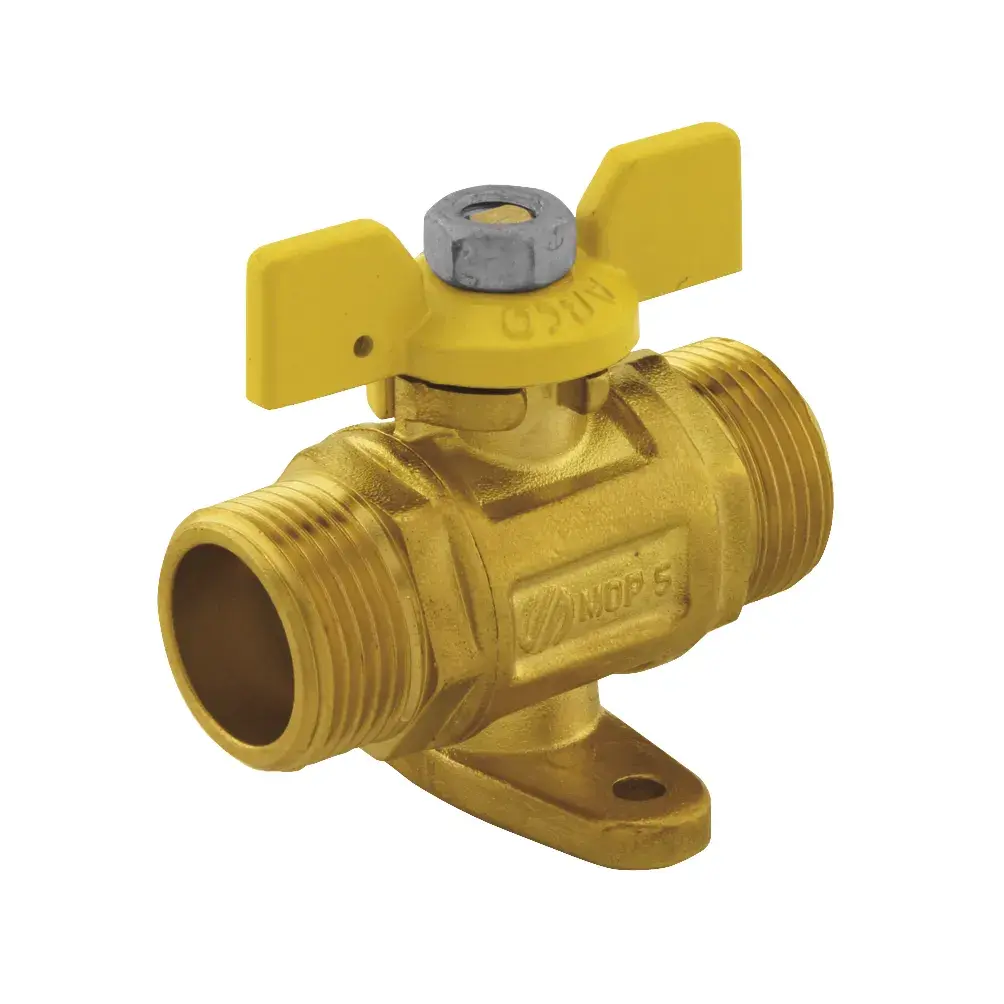

Gas ball valve Ter with wall plate and yellow butterfly handle 16 mm solder x 16 mm solder 00603R
The ARCO 00603R from the Ter range is a gas ball valve with wall plate and yellow butterfly handle. Quarter-turn metal ball valve of the TER series for gas installations. The valve cannot be dismantled, so the parts in contact with gas cannot be tampered with, and it has locking and sealing features.
This version has a 16 mm solder x 16 mm solder connection, a maximum operating pressure of MOP 5 and a temperature range of -40 to 60 °C. The body is made of brass.
Application
For domestic and commercial gas installations, straight or angled, inside or outside the building (not for burial or embedding). Suitable for gases of the 1st, 2nd and 3rd family according to EN 437; maximum operating pressure MOP 5, temperature class -40 to 60 °C.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 00603R |
| Brand | ARCO |
| Series | Ter |
| Connection | 16 mm solder x 16 mm solder (supplier notation: Soldening 16 X 1/2M-1/2M X Solder 16) |
| Max. operating pressure | MOP 5 (5 bar) |
| Temperature | -40 to 60 °C |
| Material body | Brass |
| Dimension A | 93 mm |
| Dimension B | 48 mm |
| Dimension C | 33 mm |
| Packaging | Per piece (outer box 40 pcs) |
| Technical sheet | Download PDF |
| Certificate | Certificate AENOR 053/000091 for manually operated ball valves for installations using gaseous fuels - DN15 |
| Certificate | Certificate AENOR 053/000135 for manually operated ball valves for installations using gaseous fuels - DN10 |
