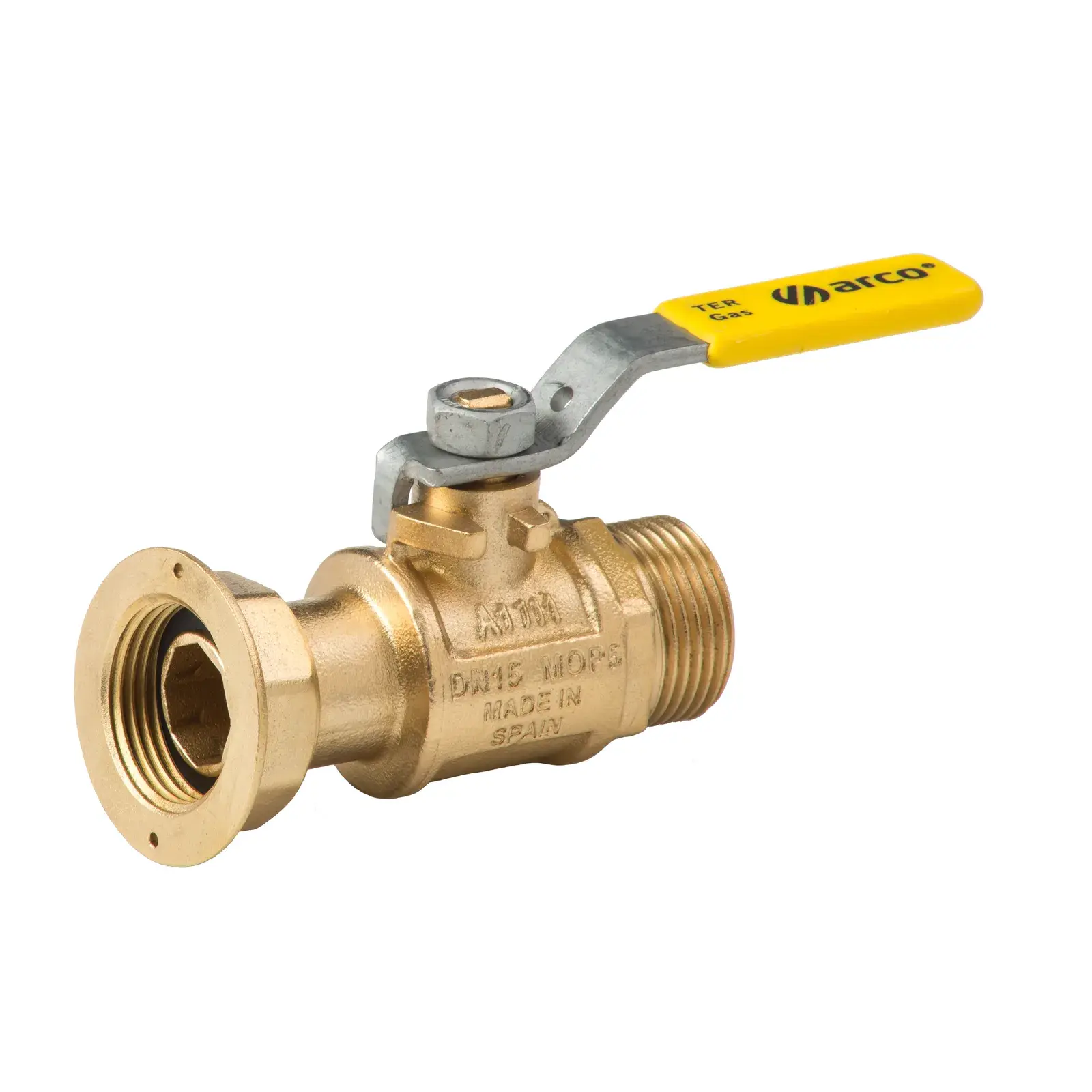

Gas meter valve Ter with lever handle and yellow cover 1" M x 1" loose nut 00595
The ARCO 00595 from the Ter range is a gas meter valve with lever handle and yellow cover. Quarter-turn metal ball valve of the TER series for gas installations. The valve cannot be dismantled, so the parts in contact with gas cannot be tampered with, and it has locking and sealing features.
This version has a 1" M x 1" loose nut connection, a maximum operating pressure of MOP 5 and a temperature range of -40 to 60 °C. The body is made of brass.
Application
For domestic and commercial gas installations, straight or angled, inside or outside the building (not for burial or embedding). Suitable for gases of the 1st, 2nd and 3rd family according to EN 437; maximum operating pressure MOP 5, temperature class -40 to 60 °C.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 00595 |
| Brand | ARCO |
| Series | Ter |
| Connection | 1" M x 1" loose nut (supplier notation: 1M-1LN) |
| Max. operating pressure | MOP 5 (5 bar) |
| Temperature | -40 to 60 °C |
| Material body | Brass |
| Packaging | Per piece (inner box 15 pcs, outer box 30 pcs) |
| Technical sheet | Download PDF |
| Certificate | Certificate AENOR 053/000059 for manually operated ball valves for installations using gaseous fuels - DN20 |
| Certificate | Certificate AENOR 053/000060 for manually operated ball valves for installations using gaseous fuels - DN25 |
| Certificate | Certificate AENOR 053/000091 for manually operated ball valves for installations using gaseous fuels - DN15 |
