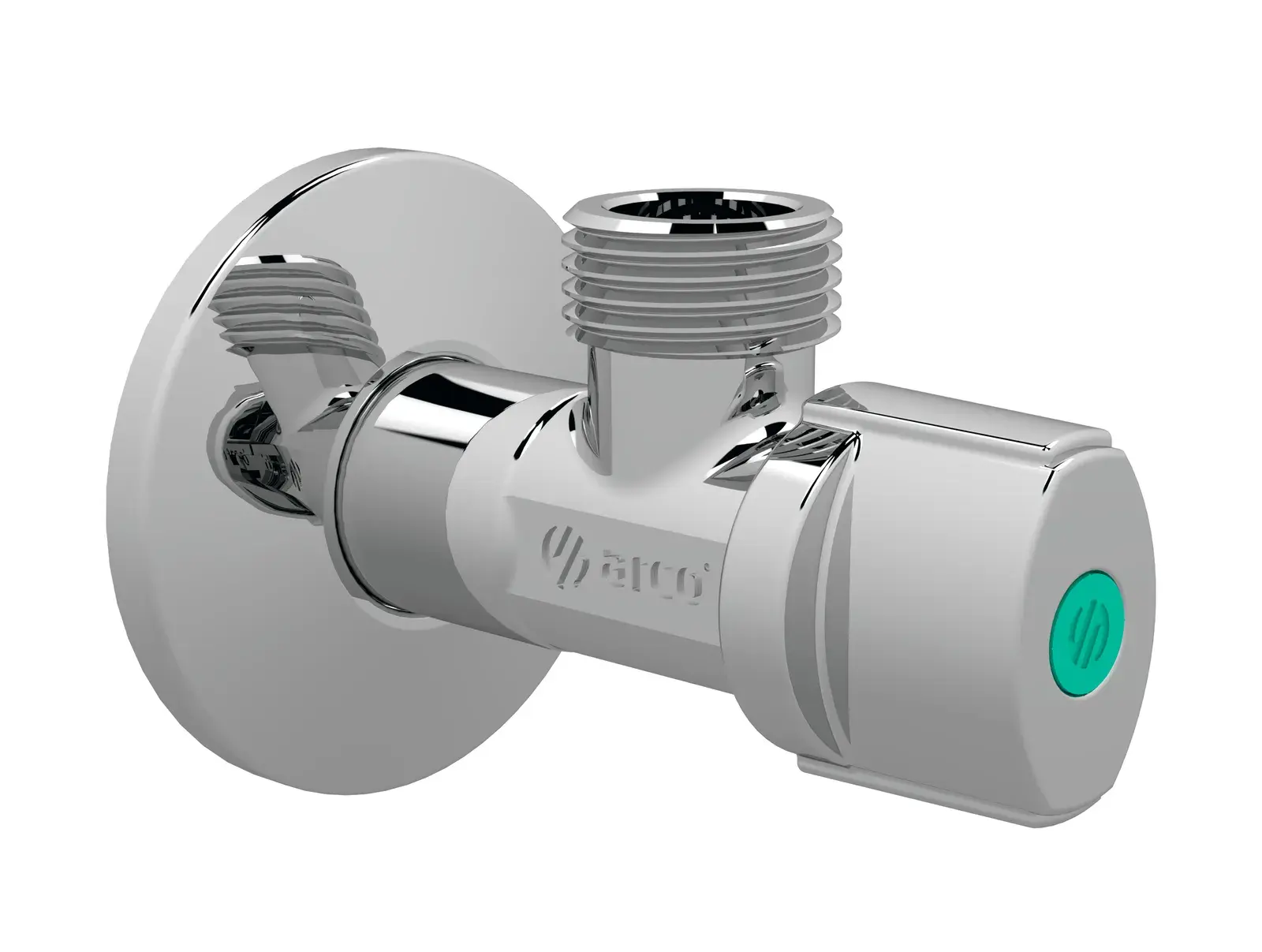

High-flow angle valve A-80 X-FLOW 1/2" M x 1/2" M NOV54MAC
The ARCO NOV54MAC from the A-80 X-FLOW range is a high-flow angle valve with a chrome-plated metal Nova handle. Quarter-turn angle ball valves with manual operation and a ball-stem with larger water flow, for surface mounting where greater flow comfort is required without compromising a compact appearance. The VITAQ system increases the valve life span and flow comfort in hard water areas.
Ideal for electric water heaters or any other tank.
This version has a 1/2" M x 1/2" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- VITAQ system, more life, less lime at higher temperatures.
- Bigger passage section, lower pressure loss and lower noise level.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring.
Application
Specially designed for installations of electric water heaters and instantaneous water heaters, as well as any other installation that requires an appliance valve with a higher service flow.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | NOV54MAC |
| Brand | ARCO |
| Series | A-80 X-FLOW |
| Connection | 1/2" M x 1/2" M (supplier notation: 1/2M-1/2M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Dimension A | 83 mm |
| Dimension B | 47 mm |
| Dimension C | 26 mm |
| Packaging | Individual (outer box 50 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
| EAN code | 8428519078761 |
