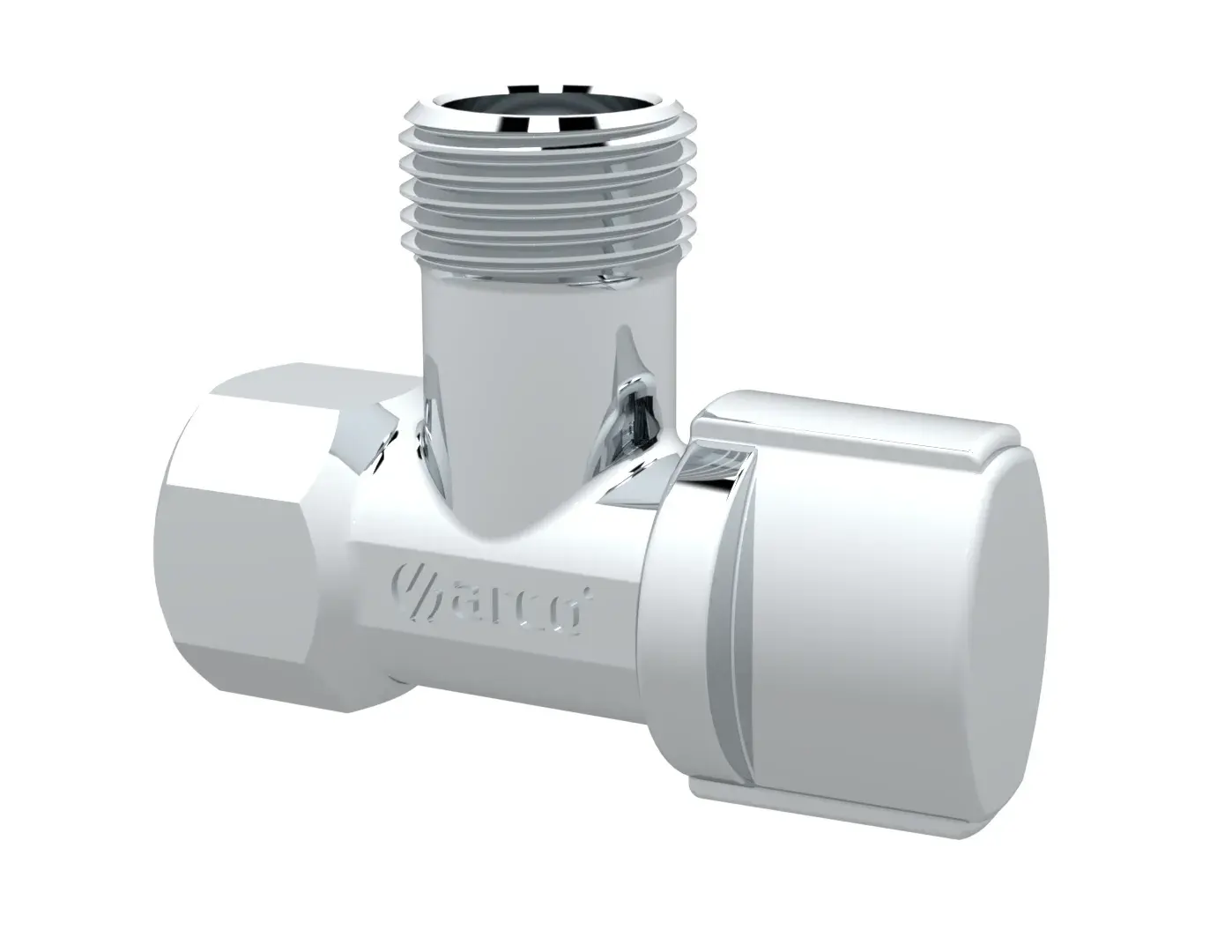

High-flow water heater valve with check valve A-80 X-FLOW 1/2" F NPT x 1/2" M NPSM 201230
The ARCO 201230 from the A-80 X-FLOW range is a high-flow water heater valve with check valve and a chrome-plated ABS Nova handle. Quarter-turn angle ball valves with manual operation and ball-stem with larger water flow for surface mounting where the connection is made by threaded ends.
This version has a 1/2" F NPT x 1/2" M NPSM connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- VITAQ system, more life, less lime at higher temperatures.
- Bigger passage section, lower pressure loss and lower noise level.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring, ensures external leaktightness.
Application
Specially designed for indoor plumbing installations that require a valve with a higher service flow, allowing individual shut-off of the water supply to sinks, washbasins, cisterns and other points of use.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 201230 |
| Brand | ARCO |
| Series | A-80 X-FLOW |
| Connection | 1/2" F NPT x 1/2" M NPSM (supplier notation: 1/2FIP-1/2M [NPSM]) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material handle | ABS, chrome plated |
| Material o-rings | NBR |
| Material stem-ball | Brass CW614N, brass color |
| Material seat | NBR |
| Dimension A | 62 mm |
| Dimension B | 27 mm |
| Dimension C | 34 mm |
| Packaging | Individual (outer box 100 pcs) |
| Technical sheet | Download PDF |
