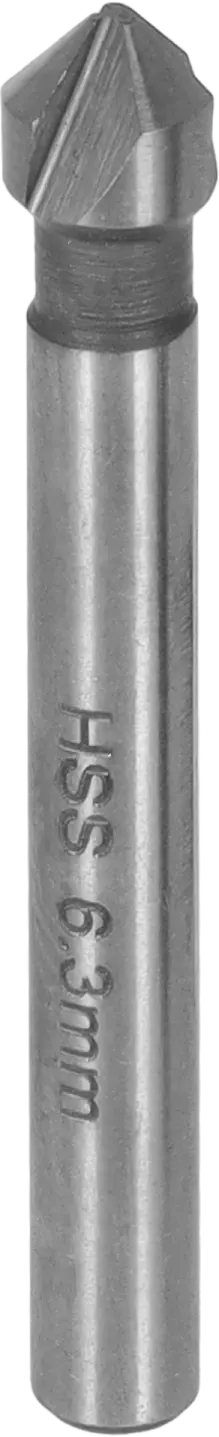

HSS countersink ø6.3 mm, Length 45 mm, Shank ø5 mm STALCO PERFECT S-72501
- Conical reamers DIN 335 / 90° High-Speed Steel (HSS).
- High-alloy steel.
- Mainly used for the production of cutting tools.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
English
The HSS-TiN countersink is a highly useful tool. The cylindrical shank allows mounting in drills, screwdrivers, or milling machines. The countersink is used for deburring and countersinking holes and should be operated at low speeds.
It is suitable for working with all types of metals such as steel, cast iron, and non-ferrous metals. The HSS-TiN STALCO PERFECT countersink offers excellent durability and service life. It is made of high-speed steel (HSS), and the working tip is additionally coated with titanium nitride.

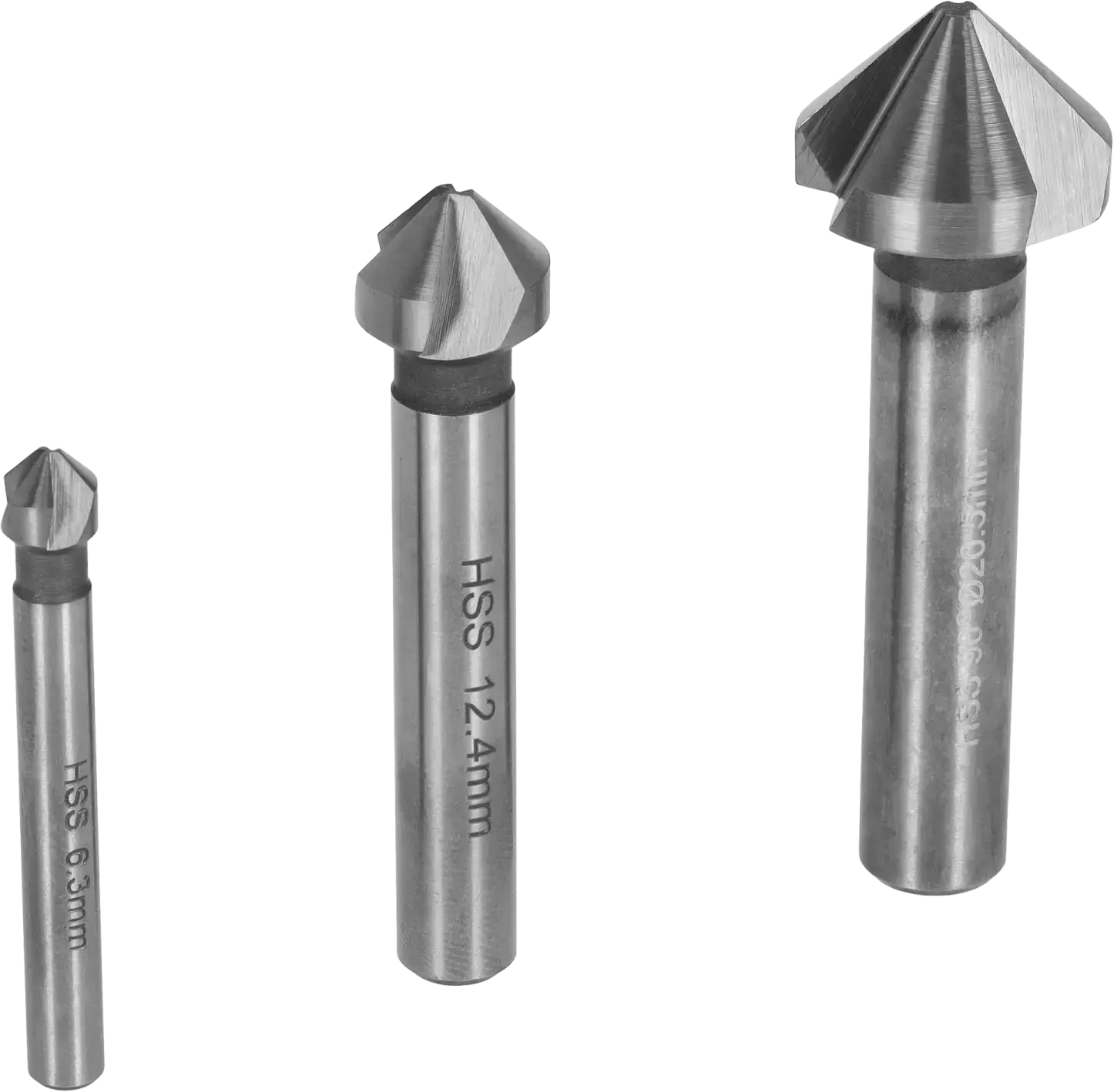

Thanks to this coating, the tool maintains its dimensions for a long time, even when working with difficult materials. Work efficiency is further enhanced by the 90-degree countersink angle and three cutting edges. The countersink is available in three diameters: 6.3 mm, 12.4 mm, and 20.5 mm, allowing the processing of many standard screw holes.
FEATURES AND BENEFITS:
- Ground, sharp cutting edges speed up work and reduce processing time
- Ideal for working with metals, wood, and plastics
- Allows precise countersinking and finishing of holes
- Very long service life significantly reduces operating costs
- TiN coating greatly improves efficiency and working comfort
FEATURES:
- Conical countersinks DIN 335 / 90°
- Structural coating: TiN titanium nitride coating
ADVANTAGES OF STRUCTURAL COATINGS:
- Optimal ratio of hardness to internal stress, ensuring high geometry stability and even wear of cutting edges
- Higher thermal and chemical resistance, enabling dry machining at higher speeds and reduced flank wear
- Improved sliding properties, resulting in better chip formation and higher surface quality
- Greater wear resistance, reducing tooling costs
- Maximum operating temperature approx. 600°C
PRODUCT MATERIAL:
HSS steel.
PRODUCT APPLICATION:
Drilling and countersinking holes in steel, plastics, and wood.
APPLICATION – MATERIAL:
- Steel (N/mm²) < 900, non-ferrous metals, plastics
- Aluminium – use without TiN coating
APPLICATION – USE:
- HSS-TiN countersinks are used on sheets, pipes, profiles, and similar materials
- Grinding oil or compressed air can be used as cooling and lubricating agents
TECHNICAL DATA:
- Countersink diameter: 6.3 mm
- Length: 45 mm
- Shank diameter: 5 mm
PROPERTIES:
The DIN 335, 90° conical countersink is designed for professional hole machining at a 90-degree angle. It is suitable for enlarging, countersinking, and face machining of holes, especially for creating seats for countersunk screws.
Manufactured in accordance with DIN 335 dimensional standards from special high-speed HSS steel. The high-quality titanium nitride (TiN) coating is abrasion-resistant and suitable for machining steel, non-ferrous metals, thermoplastics, and thermoset plastics.
Suitable drive tools: handheld drill, column drill.
Add your review
Your email address will not be published. Required fields are marked *
Please login to write review!
Looks like there are no reviews yet.
Stalco
HSS-TiN countersink ø6.3 mm, Length 45 mm, Shank ø5 mm STALCO PERFECT S-72507

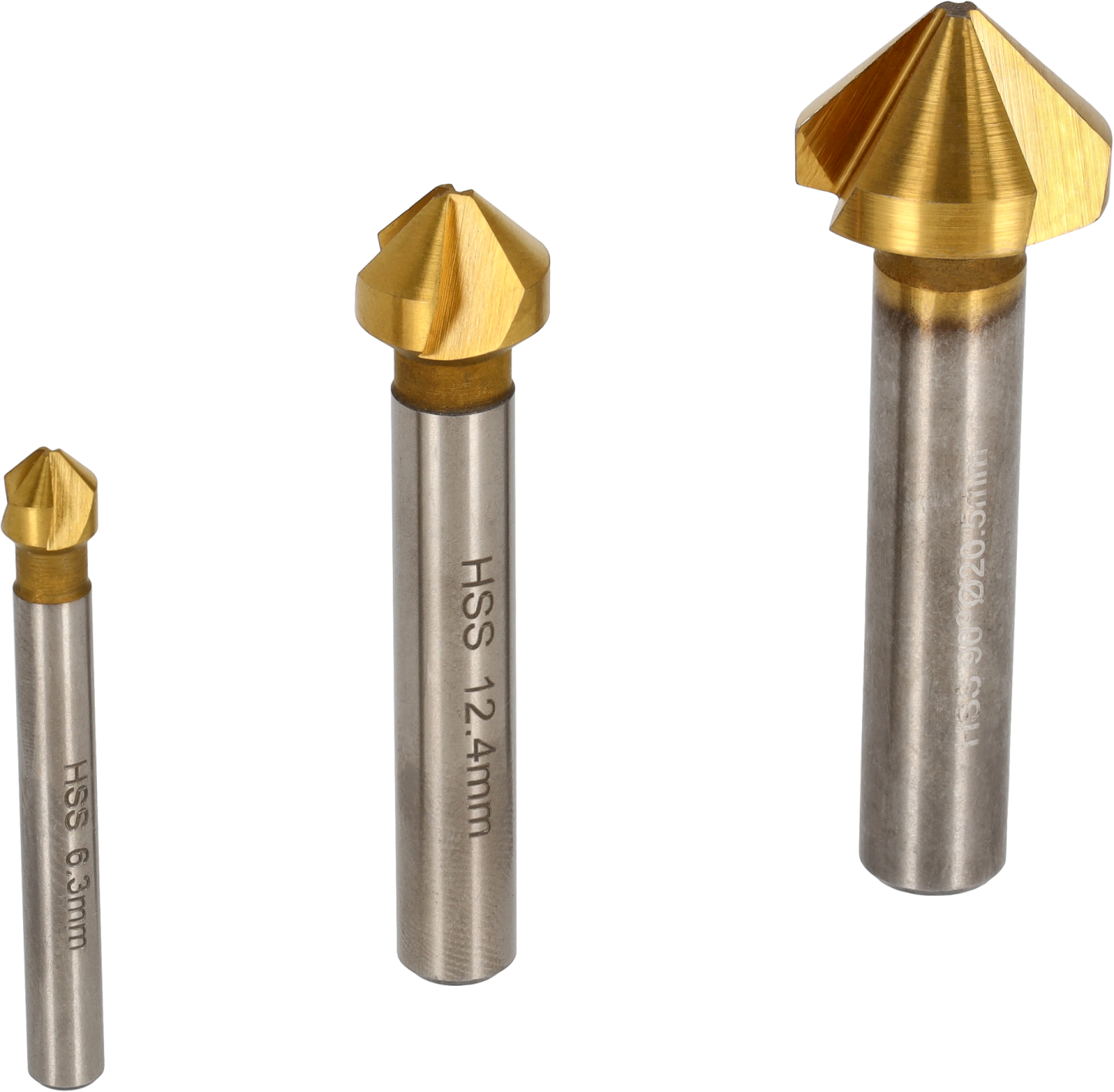

Countersink set HSS TiN 3 pcs STALCO PERFECT S-72512
