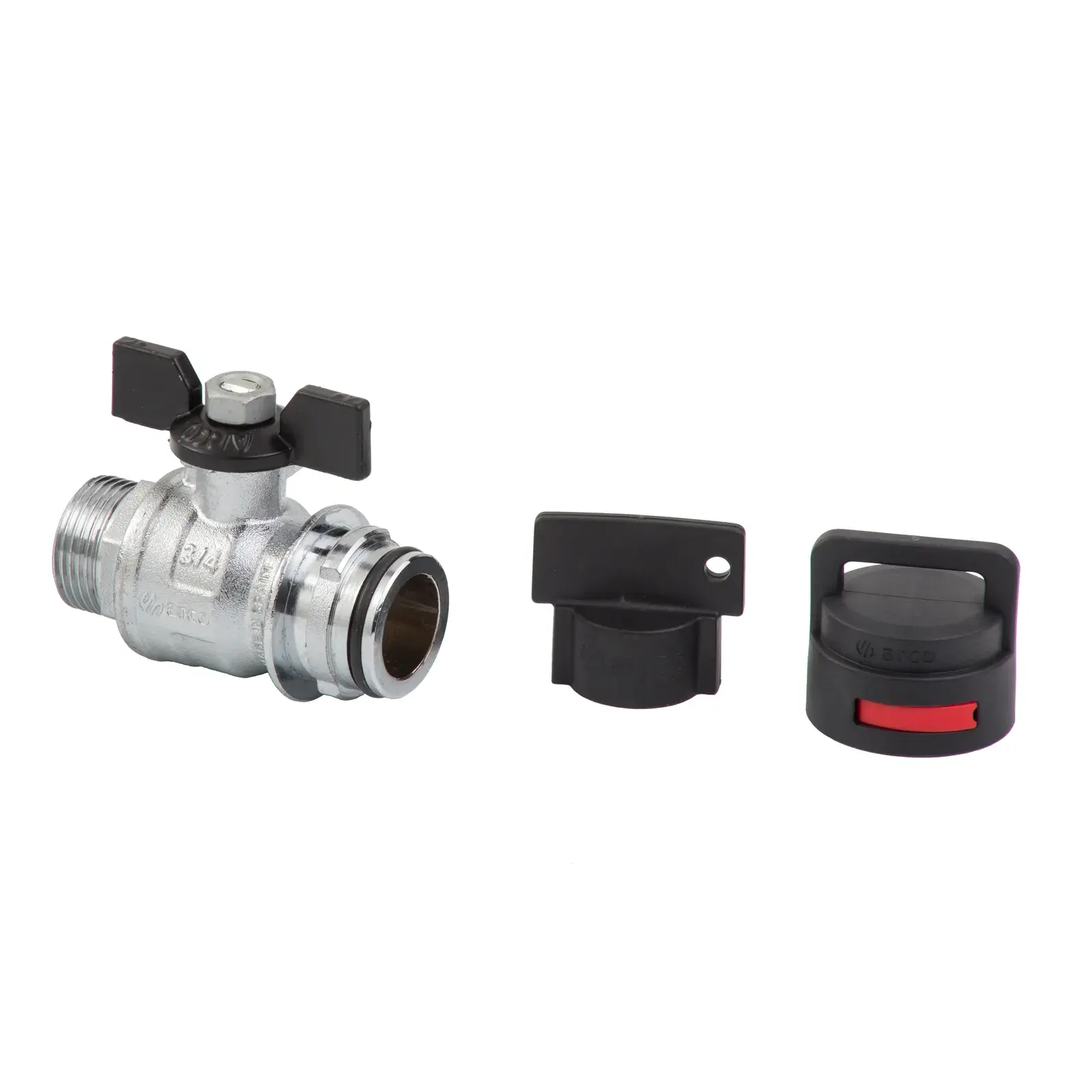

Kit: modular manifold valve + female end cap UNO 40130
The ARCO 40130 from the UNO Manifolds range is a kit: modular manifold valve + female end cap. Modular manifolds with ball valves and manual operation for centralised plumbing installations. The outlet of each module is available for multilayer pipe or with threaded connection. The VITAQ system extends the life of the manifold and the flow comfort in areas with hard water.
This version has a maximum working pressure of PN 10 bar and a temperature range of 0 to 85 °C. The body is made of brass.
Features
- Quick assembly thanks to the 'CLICK CLACK' system.
- 100% verified during production.
- Double O-ring ensures external watertightness.
- Robust construction in a single body for safe installation.
Application
Designed for drinking water and domestic hot water installations, allowing the water supply to be individually cut off to different consumption points.
As it is a modular system, it allows the number and type of collectors to be configured according to the installation needs.
It is recommended not to chain more than 8 modules on the same line, to avoid a significant pressure difference when more than 5 services are used simultaneously.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 40130 |
| Brand | ARCO |
| Series | UNO Manifolds |
| Connection | 3/4M-Quick connection M |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 85 °C |
| Material body | Brass |
| Dimension A | 73 mm |
| Dimension B | 56 mm |
| Dimension C | 43 mm |
| Packaging | Supplier packaging: outer box 16 pcs |
| EAN code | 8428519060278 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
