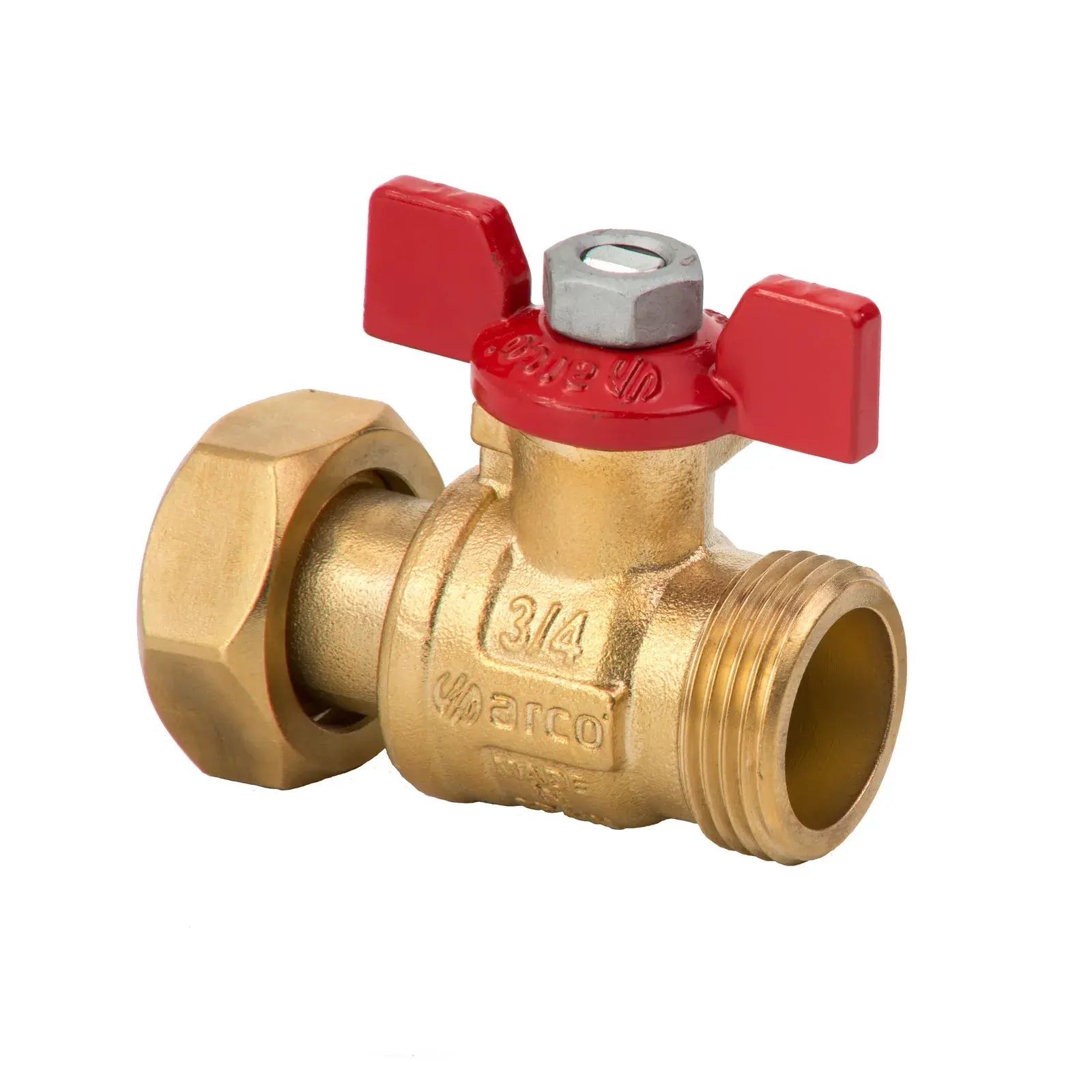

Manifold ball valve Turia 3/4" M x 3/4" loose nut F1174
The ARCO F1174 from the Turia range is a manifold ball valve with a red butterfly handle. Quarter-turn ball valves with manual operation. Various types of threading ends are available: female-female, male-female, male-male, male-loose nut, female-manifold coupling.
This version has a 3/4" M x 3/4" loose nut connection, a maximum working pressure of PN 40 bar and a temperature range of -20 to 140 °C. The body is made of brass.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Without reducing flow.
- Strong construction and safe installations.
- Lever handle with Black Epoxy protection.
Application
Specially designed for heating, DHW or mixed installations, as well as distribution networks and drinking water connections.
And in general, all those applications that require a valve capable of shutting off the supply of a fluid, guaranteeing tightness in accordance with the specified service conditions.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | F1174 |
| Brand | ARCO |
| Series | Turia |
| Connection | 3/4" M x 3/4" loose nut (supplier notation: 3/4M-3/4LN) |
| Max. pressure | PN 40 bar |
| Temperature | -20 to 140 °C |
| Material body | Brass |
| Dimension A | 59 mm |
| Dimension B | 48 mm |
| Dimension C | 38 mm |
| Packaging | Supplier packaging: inner box 25 pcs, outer box 50 pcs |
| EAN code | 8428519048566 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 23 ACC NY 006 |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1176.2023 |
