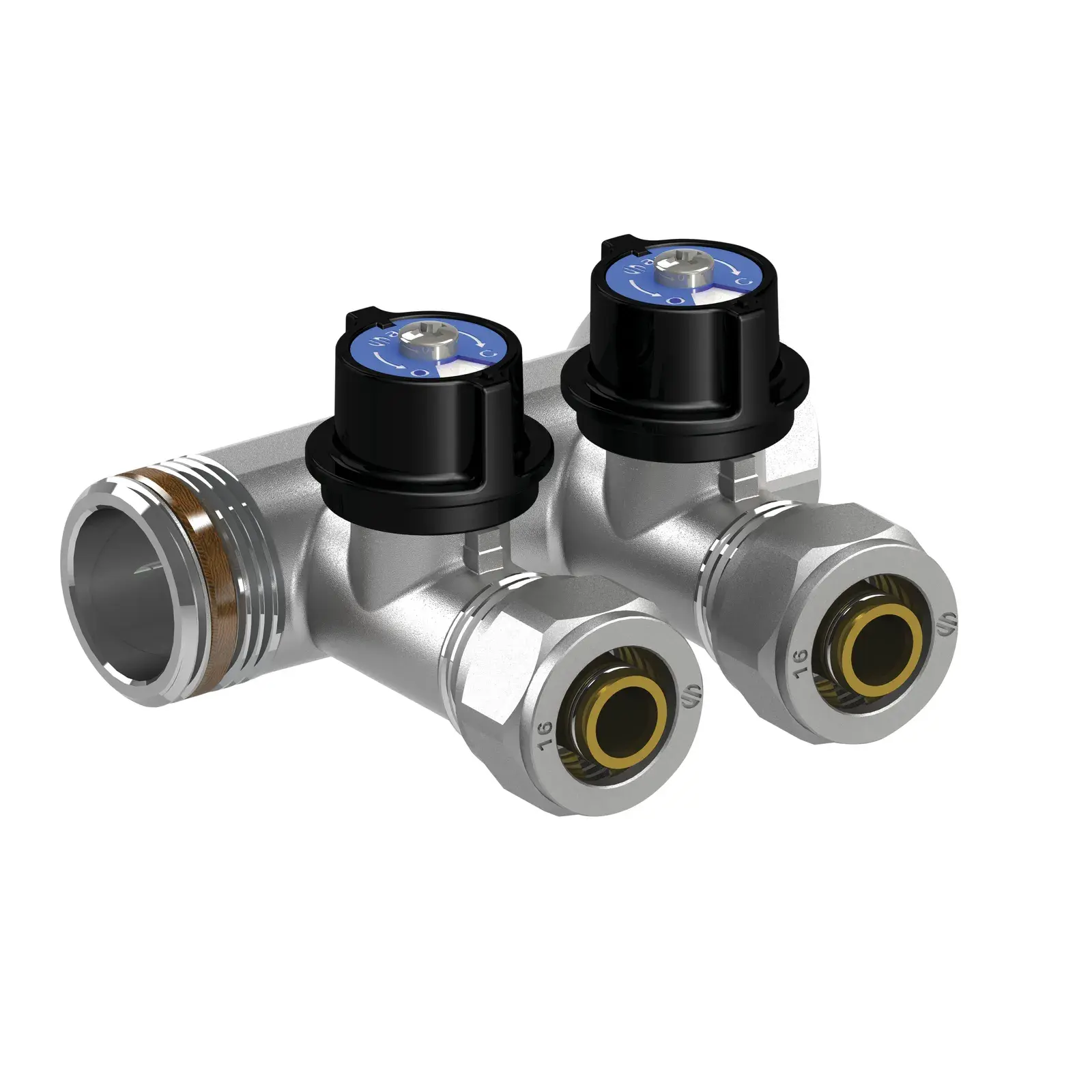

Manifold for multilayer pipe 3/4" M X 3/4" F-3 ways 16X2 38130
The ARCO 38130 is a manifold for multilayer pipe. Fixed manifolds with ball valves and manual operation for centralised plumbing installations. The male threaded inlet connection incorporates a Teflon ring. Each of its outlets has a compression connection for multilayer pipe. The VITAQ system extends the life of the manifold and the flow comfort in areas with hard water.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- European brass in DW quality (4MS) approved for use in drinking water applications.
- 100% valves are tested for inner leakage.
- Robust construction in a single body for safe installation.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 38130 |
| Brand | ARCO |
| Connection | 3/4M X 3/4F-3 vías 16X2 |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material seat | NBR |
| Material o-ring | NBR |
| Material handle | PA, black |
| Material stem-ball | Anti-lime polymer, VITAQ |
| Dimension A | 120 mm |
| Dimension B | 28 mm |
| Dimension C | 63 mm |
| Dimension D | 81 mm |
| Dimension E | 35 mm |
| Packaging | Supplier packaging: outer box 12 pcs |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
| EAN code | 8428519058480 |
