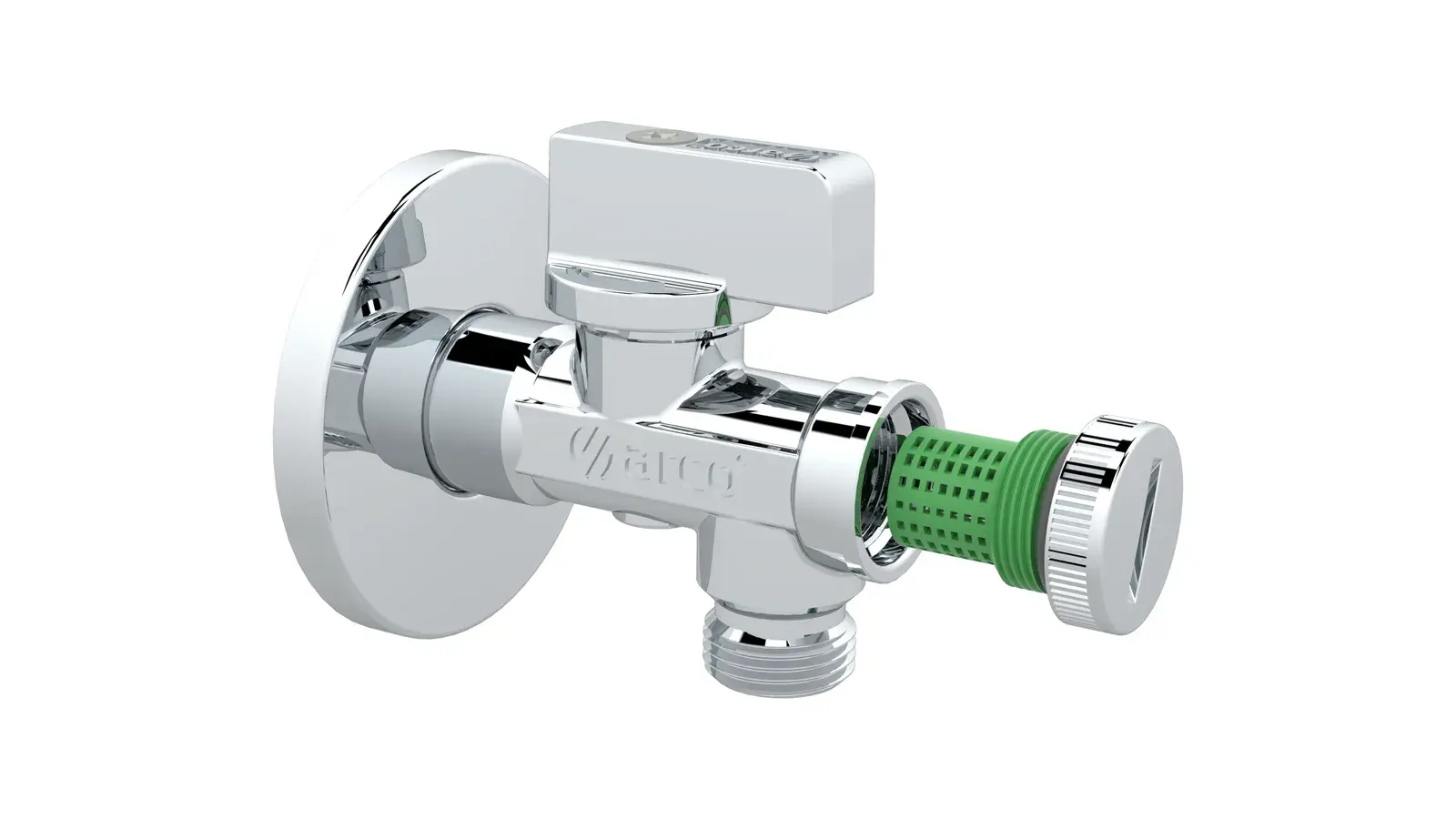

Mini angle ball valve with filter 1/2" M x 1/2" M 02400MAC
The ARCO 02400MAC from the Mini Filter range is a mini angle ball valve with filter and a chrome-plated metal handle. Quarter-turn angle ball valves with built-in filter and manual operation for surface mounting, where the connection is made by threaded ends. The VITAQ system increases the valve life span and flow comfort in hard water areas.
Protect the tap with a filter.
This version has a 1/2" M x 1/2" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- Built-in filter to prevent small solids from entering the faucet.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 02400MAC |
| Brand | ARCO |
| Series | Mini Filter |
| Connection | 1/2" M x 1/2" M (supplier notation: 1/2M-1/2M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material rosette | Stainless steel |
| Material body | Brass CW617N, chrome plated |
| Material handle | Zamak, chrome plated |
| Material o-rings | NBR |
| Material filter | Anti-lime polymer, VITAQ |
| Material o-ring | NBR |
| Material stem-ball | Anti-lime polymer, VITAQ |
| Material seat | NBR |
| Dimension A | 76 mm |
| Dimension B | 56 mm |
| Dimension C | 24 mm |
| Dimension D | 33 mm |
| Packaging | Individual (outer box 44 pcs) |
| EAN code | 8428519052105 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
