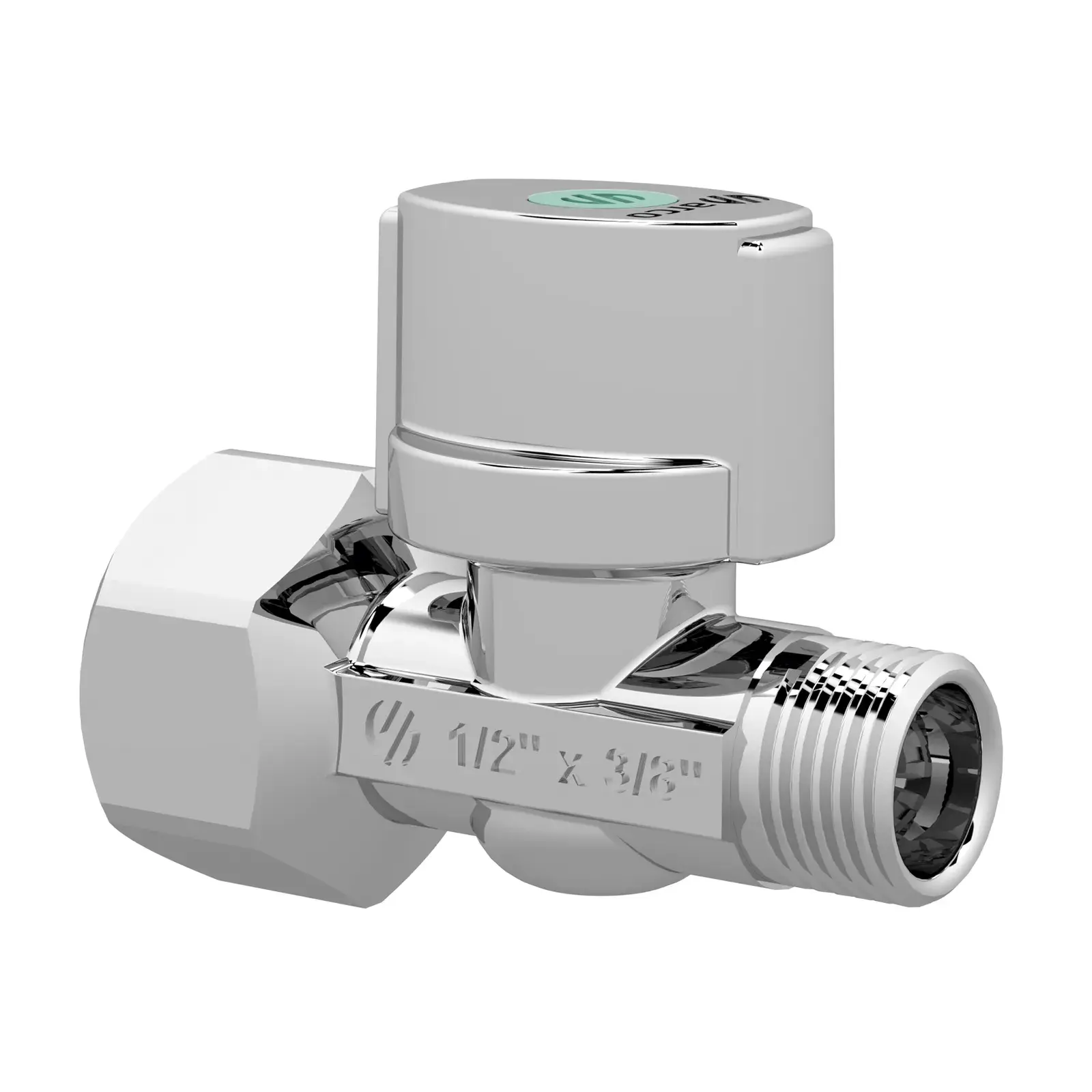

Mini ball valve 1/2" F NPT x 3/8" OD 207110
The ARCO 207110 from the Mini range is a mini ball valve with a chrome-plated ABS handle. Quarter-turn straight ball valves for surface mounting with manual operation, where the connection is made by threaded ends. The VITAQ system increases the valve life span and flow comfort in hard water areas.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 1/2" F NPT x 3/8" OD connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, washing machines, and other points of use.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 207110 |
| Brand | ARCO |
| Series | Mini |
| Connection | 1/2" F NPT x 3/8" OD (supplier notation: 1/2FIP-3/8OD) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Dimension A | 52 mm |
| Dimension B | 29 mm |
| Dimension C | 31 mm |
| Packaging | Supplier packaging: outer box 100 pcs |
| Technical sheet | Download PDF |
