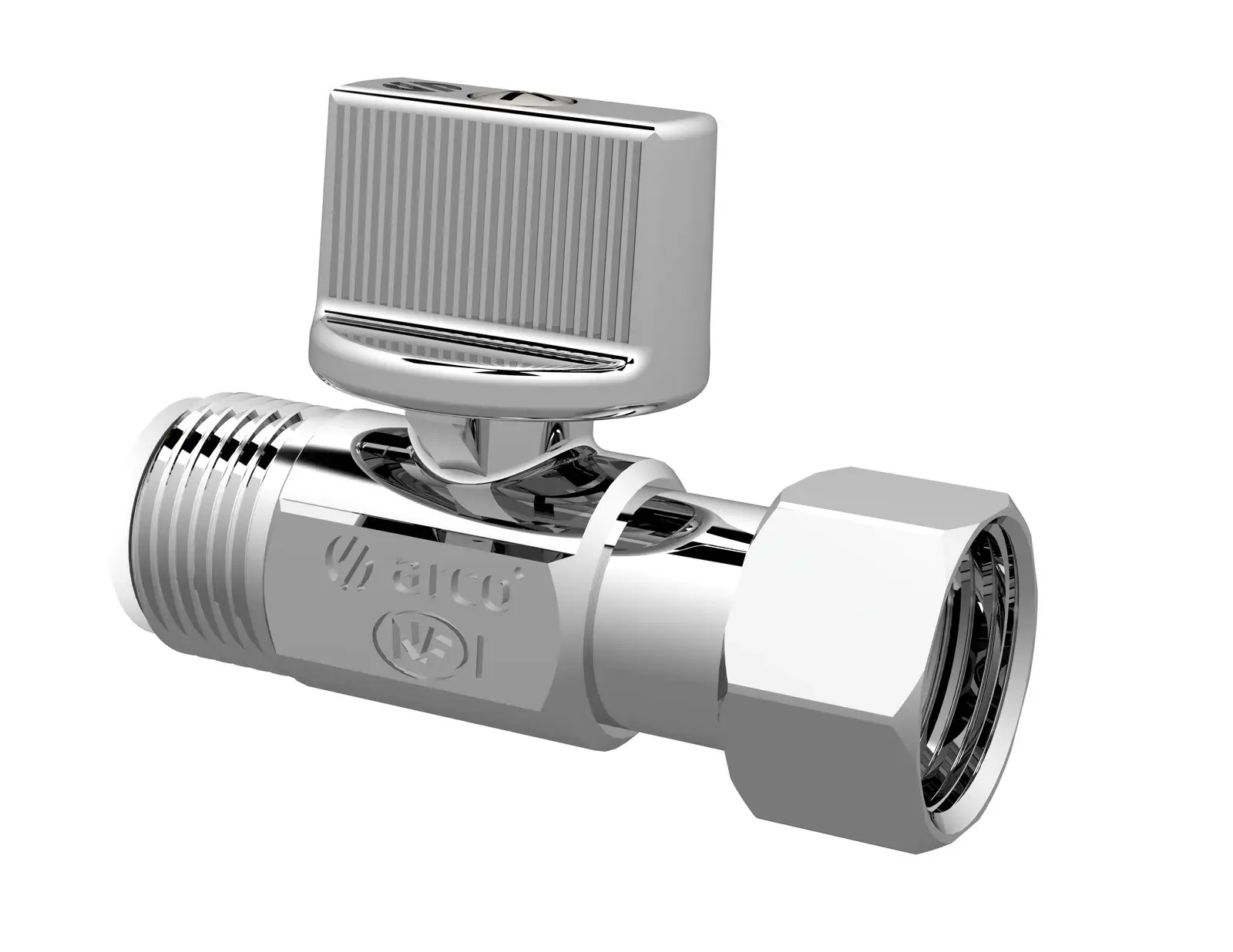

Mini ball valve 3/8" M x 3/8" loose nut 02267U
The ARCO 02267U from the Mini range is a mini ball valve with a chrome-plated metal handle. Quarter-turn straight ball valves for surface mounting with manual operation, where the connection is made by means of a threaded connection, compression or loose nut according to model.
This version has a 3/8" M x 3/8" loose nut connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- The knurled inlet thread (depending on the model) makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Double o-ring, ensures external leaktightness.
- Strong one-piece body construction for secure installations.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, washing machines, and other points of use.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 02267U |
| Brand | ARCO |
| Series | Mini |
| Connection | 3/8" M x 3/8" loose nut (supplier notation: 3/8M-3/8LN) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material handle | Zamak, chrome plated |
| Material stem | Brass CW614N, brass color |
| Material o-rings | NBR |
| Material nut | Brass CW614N, chrome plated |
| Material ball | Brass CW614N, chrome plated |
| Material seat | NBR |
| Dimension A | 52 mm |
| Dimension B | 23 mm |
| Dimension C | 28 mm |
| Packaging | Supplier packaging: inner box 50 pcs, outer box 150 pcs |
| Technical sheet | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 105 |
| Certificate | Certificate NF Sanitary tapware 339-M1-25/1 |
| Certificate | Certificate WRAS Water fittings 2109349 |
