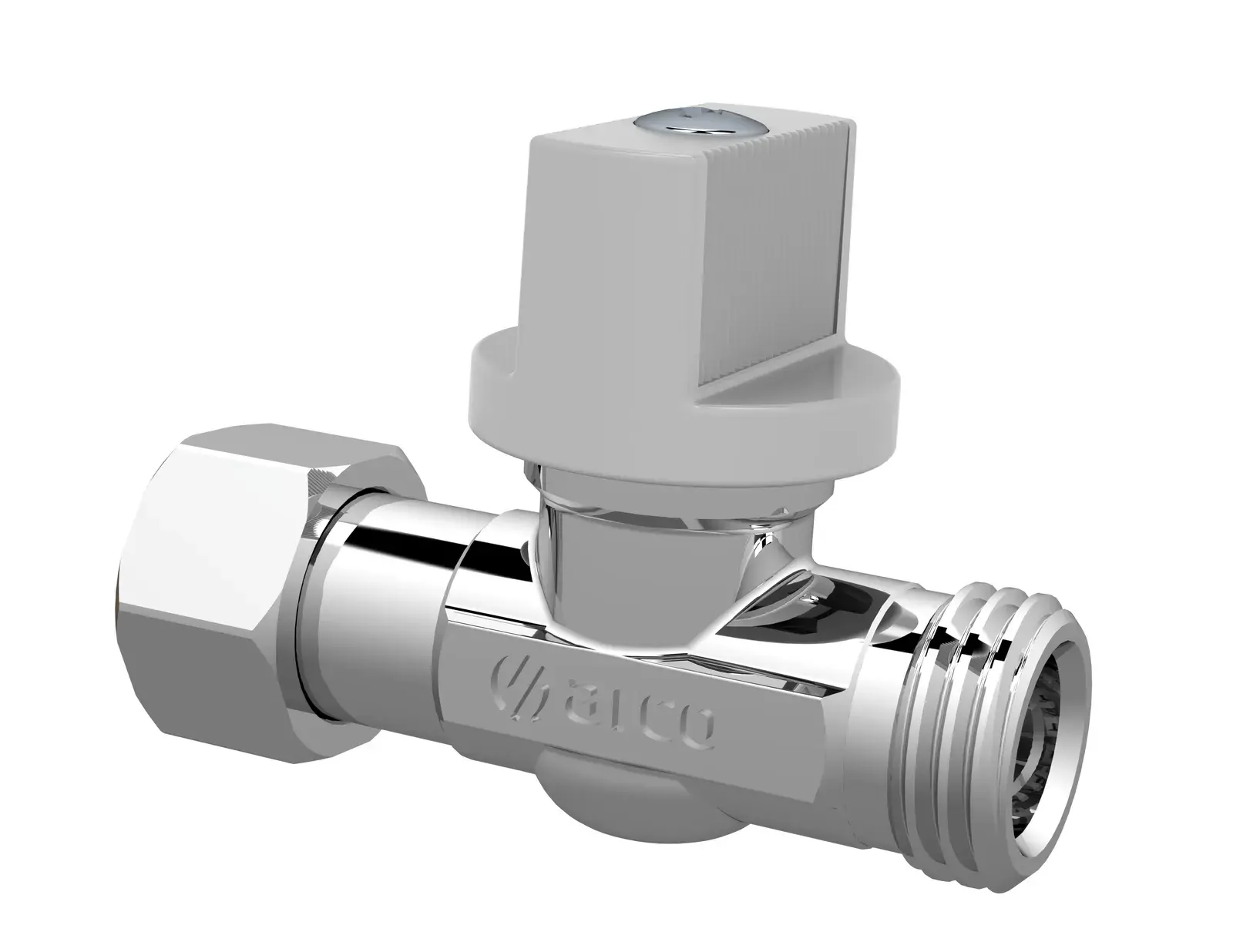

Mini ball valve Delta 3/8" M x 3/8" loose nut (5 pieces) 212005U
The ARCO 212005U from the Mini Delta range is a mini ball valve with a grey ABS Delta handle. Quarter-turn straight ball valves for surface mounting with manual operation, where the connection is made by means of a threaded connection or loose nut according to model.
This version has a 3/8" M x 3/8" loose nut connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
This item is supplied in a bag of 5 pieces.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Double o-ring, ensures external leaktightness.
- Strong one-piece body construction for secure installations.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, washing machines, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 212005U |
| Brand | ARCO |
| Series | Mini Delta |
| Connection | 3/8" M x 3/8" loose nut (supplier notation: 3/8M-3/8LN) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material handle | ABS, grey |
| Material o-rings | NBR |
| Material nut | Brass CW614N, chrome plated |
| Material stem-ball | POM |
| Material seats | NBR |
| Dimension A | 55 mm |
| Dimension B | 32 mm |
| Dimension C | 31 mm |
| Packaging | Bag of 5 pcs (outer box 150 pcs) |
| EAN code | 8428519062371 |
| Technical sheet | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 105 |
