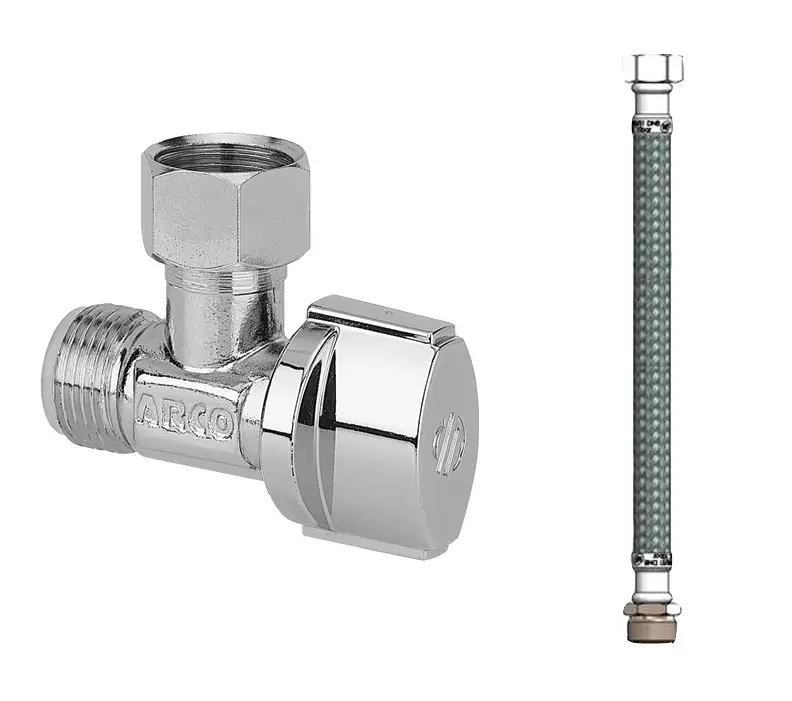

Mini ball valve + stainless steel flexible hose (set) 3/8" M x 3/8" F, 30 cm FV0111
The ARCO FV0111 is a mini ball valve + stainless steel flexible hose (set) with a chrome-plated metal handle. Flexible hoses made of materials suitable for contact with drinking water. Stainless steel flexible hose: to guarantee external durability, both the hose and the ferrule are made of AISI 304 stainless steel. Black flexible hose: to guarantee external durability, the braiding is made of polyamide and the ferrule of AISI 304 stainless steel, both highly resistant to corrosion.
This version has a 3/8" M x 3/8" F, 30 cm connection, a maximum working pressure of PN 10 bar and a temperature range of 0 to 70 °C. The body is made of brass.
This set contains the ARCO articles 02270, 963001.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- Flexible hoses and kits in two finishes: chrome plated/stainless steel or matte black.
- EPDM certified joints.
- Braiding of the flexible hose in stainless steel, or polyamide mesh for the black finish.
- Ferrules of both types of flexible hose in AISI 304.
Application
Designed for indoor plumbing installations, for both drinking water and domestic hot water.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | FV0111 |
| Brand | ARCO |
| Connection | 3/8" M x 3/8" F, 30 cm (supplier notation: 3/8M-3/8F - 30CM) |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 70 °C |
| Material nut | Brass CW617N, nickel plated |
| Dimension A | 220 mm |
| Set contents (article codes) | 02270, 963001 |
| Packaging | Supplier packaging: outer box 20 pcs |
| Technical sheet | Download PDF |
| EAN code | 8428519079867 |
