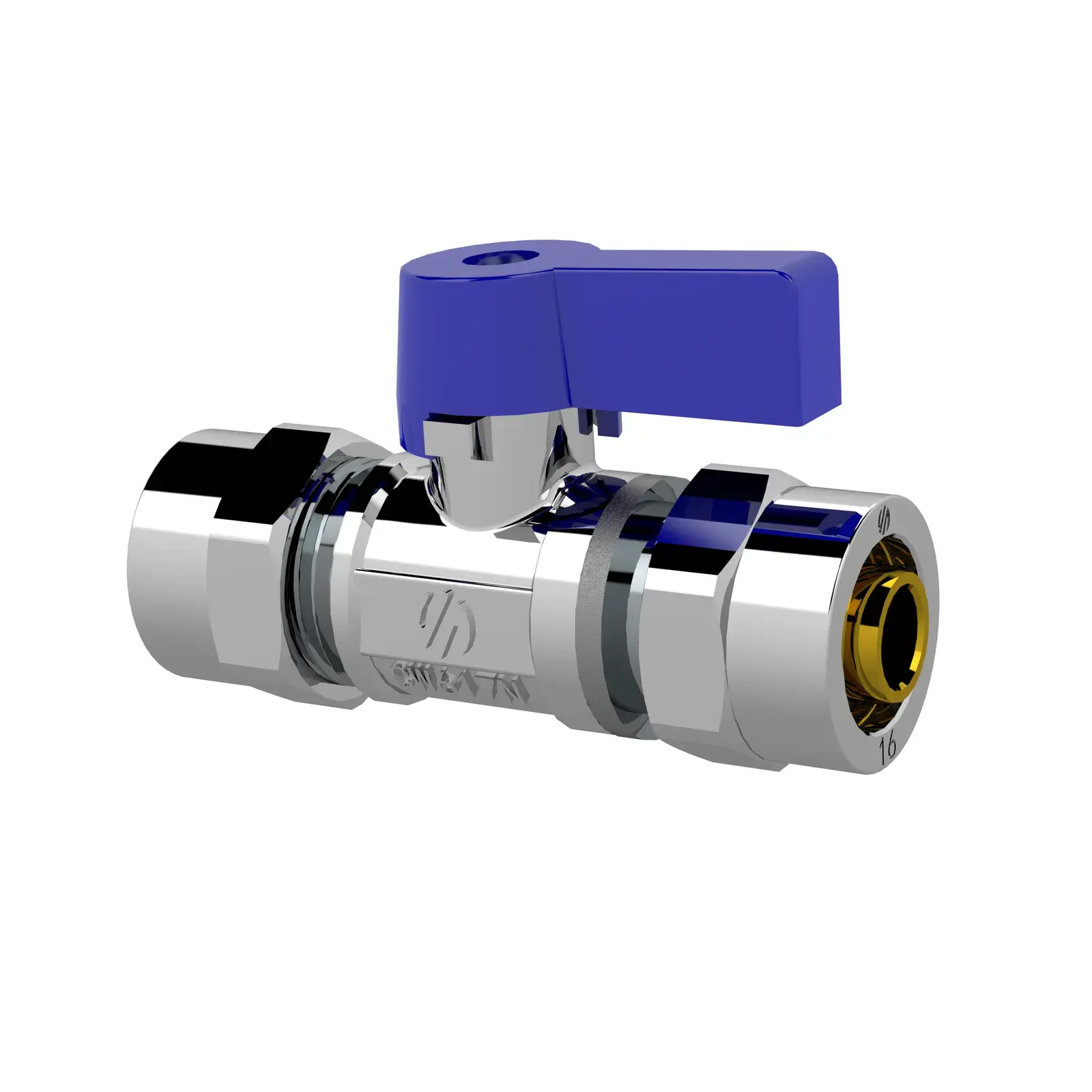

Mini ball valve with blue handle Multilayer 16x2 mm x 16x2 mm 868030
The ARCO 868030 from the Mini Multilayer range is a mini ball valve with a blue metal handle. Quarter-turn straight ball valves for surface mounting with manual operation, where the connection is made by compression for PEX or multilayer according to model.
This version has a 16x2 mm x 16x2 mm connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, nickel plated.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Metal handle.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, washing machines, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 868030 |
| Brand | ARCO |
| Series | Mini Multilayer |
| Connection | 16x2 mm x 16x2 mm (supplier notation: 16X2-16X2) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material nut | Brass CW617N, nickel plated |
| Material sleeve | Brass CW617N, brass color |
| Material body | Brass CW617N, nickel plated |
| Material stem | Brass CW617N, brass color |
| Material handle | Zamak, blue or Red (depending on model) |
| Material o-rings | NBR |
| Material o-ring | NBR |
| Material ball | Brass CW617N, chrome plated |
| Material seats | PTFE |
| Dimension A | 70 mm |
| Dimension B | 35 mm |
| Dimension C | 31 mm |
| Packaging | Supplier packaging: inner box 35 pcs, outer box 70 pcs |
| EAN code | 8428519077665 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
