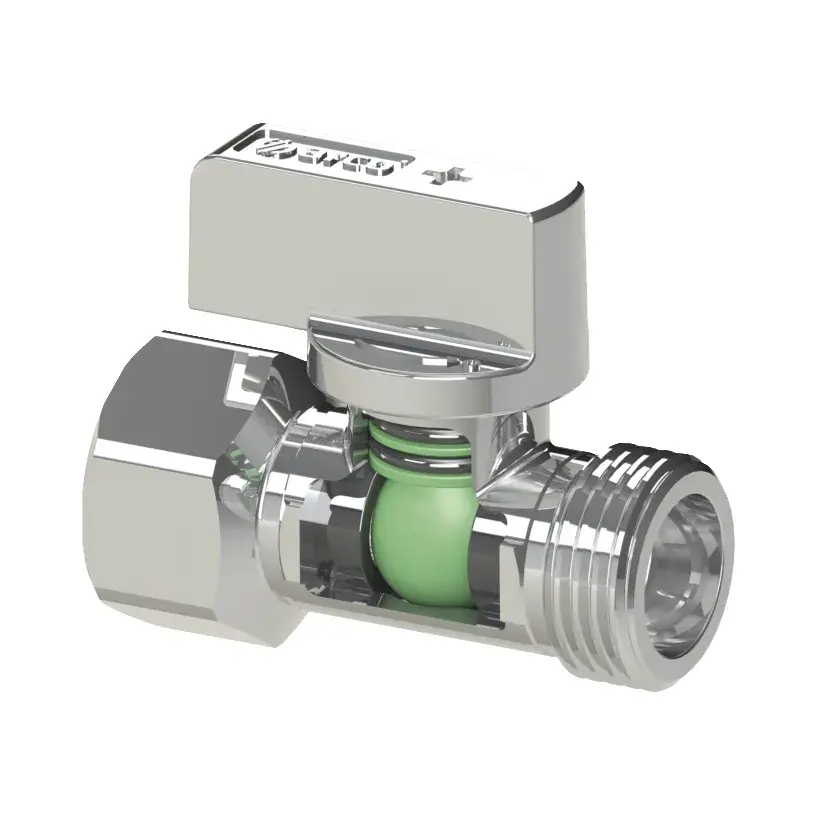

Mini ball valve with chrome handle 1/2" M x 1/2" F (5 pieces) 201015
The ARCO 201015 from the Mini range is a mini ball valve with a chrome-plated metal handle. Quarter-turn straight ball valves for surface mounting with manual operation, where the connection is made by threaded ends. The VITAQ system increases the valve life span and flow comfort in hard water areas.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 1/2" M x 1/2" F connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
This item is supplied in a bag of 5 pieces.
Features
- VITAQ system, more life, less lime at higher temperatures.
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Without reducing flow.
- Double o-ring.
- Strong one-piece body construction for secure installations.
- Prolongs flow comfort at the points of use.
- Metal handle.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, washing machines, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 201015 |
| Brand | ARCO |
| Series | Mini |
| Connection | 1/2" M x 1/2" F (supplier notation: 1/2M-1/2F) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material handle | Zamak, chrome plated |
| Material stem-ball | Anti-lime polymer, VITAQ |
| Material o-rings | NBR |
| Material seats | NBR |
| Dimension A | 53 mm |
| Dimension B | 30 mm |
| Dimension C | 33 mm |
| Packaging | Bag of 5 pcs (outer box 100 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
| EAN code | 8428519060049 |
