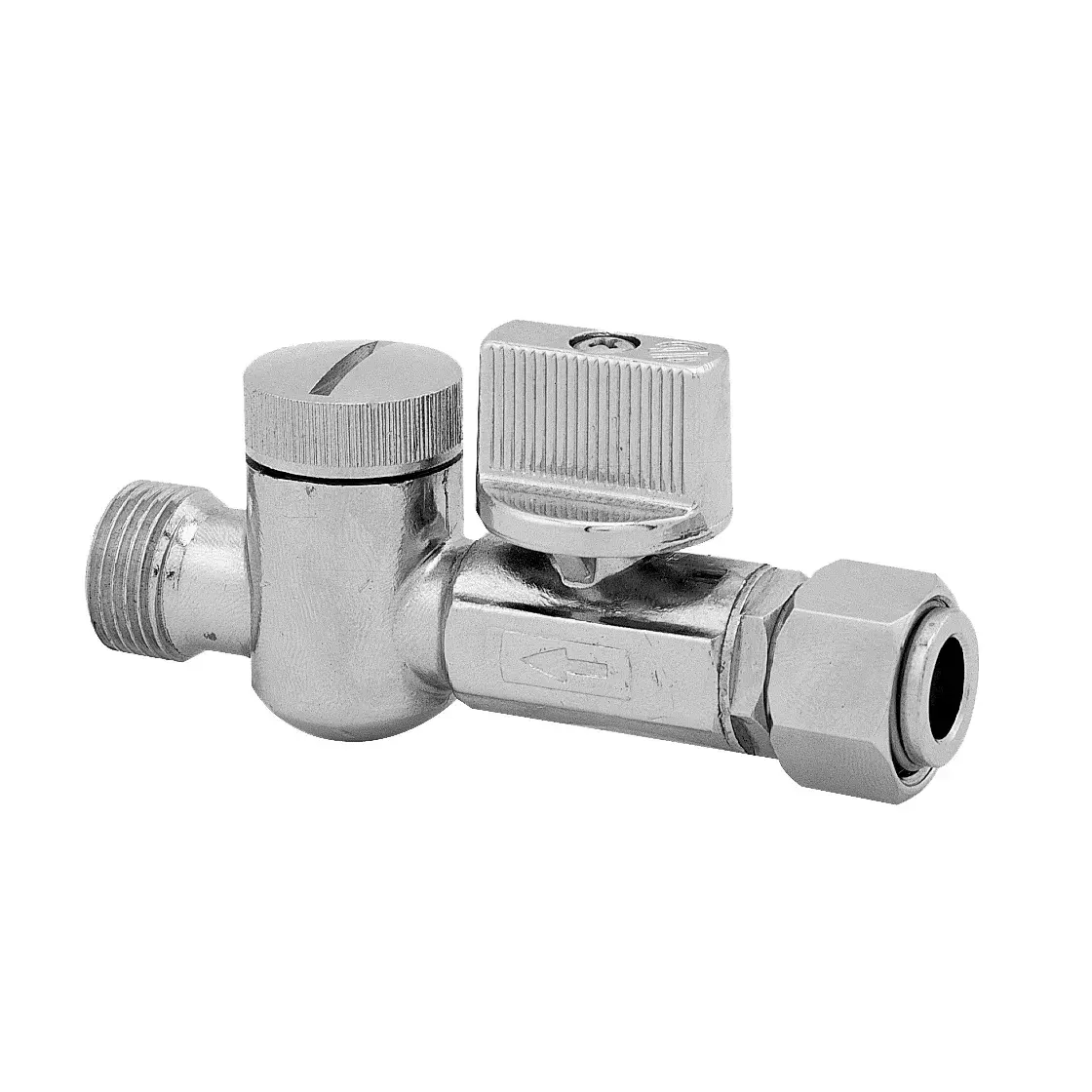

Mini ball valve with filter 3/8" M x 3/8" loose nut (2 pieces) MF210
The ARCO MF210 from the Mini Filter range is a mini ball valve with filter and a chrome-plated metal handle. Quarter-turn straight ball valves for surface mounting with manual operation, where the connection is made by means of a threaded connection, compression or loose nut according to model.
Ideal to protect the mixer tap.
This version has a 3/8" M x 3/8" loose nut connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
This item is supplied in a bag of 2 pieces.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- The knurled inlet thread (depending on the model) makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Double o-ring, ensures external leaktightness.
- Strong one-piece body construction for secure installations.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, washing machines, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | MF210 |
| Brand | ARCO |
| Series | Mini Filter |
| Connection | 3/8" M x 3/8" loose nut (supplier notation: 3/8M-3/8LN) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material nut | Brass CW614N, chrome plated |
| Material handle | Zamak, chrome plated |
| Material stem | Brass CW614N, brass color |
| Material o-rings | NBR |
| Material o-ring | NBR |
| Material body | Brass CW617N, chrome plated |
| Material filter | POM |
| Material ball | Brass CW614N, chrome plated |
| Material seat | NBR |
| Dimension A | 88 mm |
| Dimension B | 39 mm |
| Dimension C | 28 mm |
| Dimension D | 25 mm |
| Packaging | Bag of 2 pcs (outer box 60 pcs) |
| EAN code | 8428519025482 |
| Technical sheet | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 105 |
