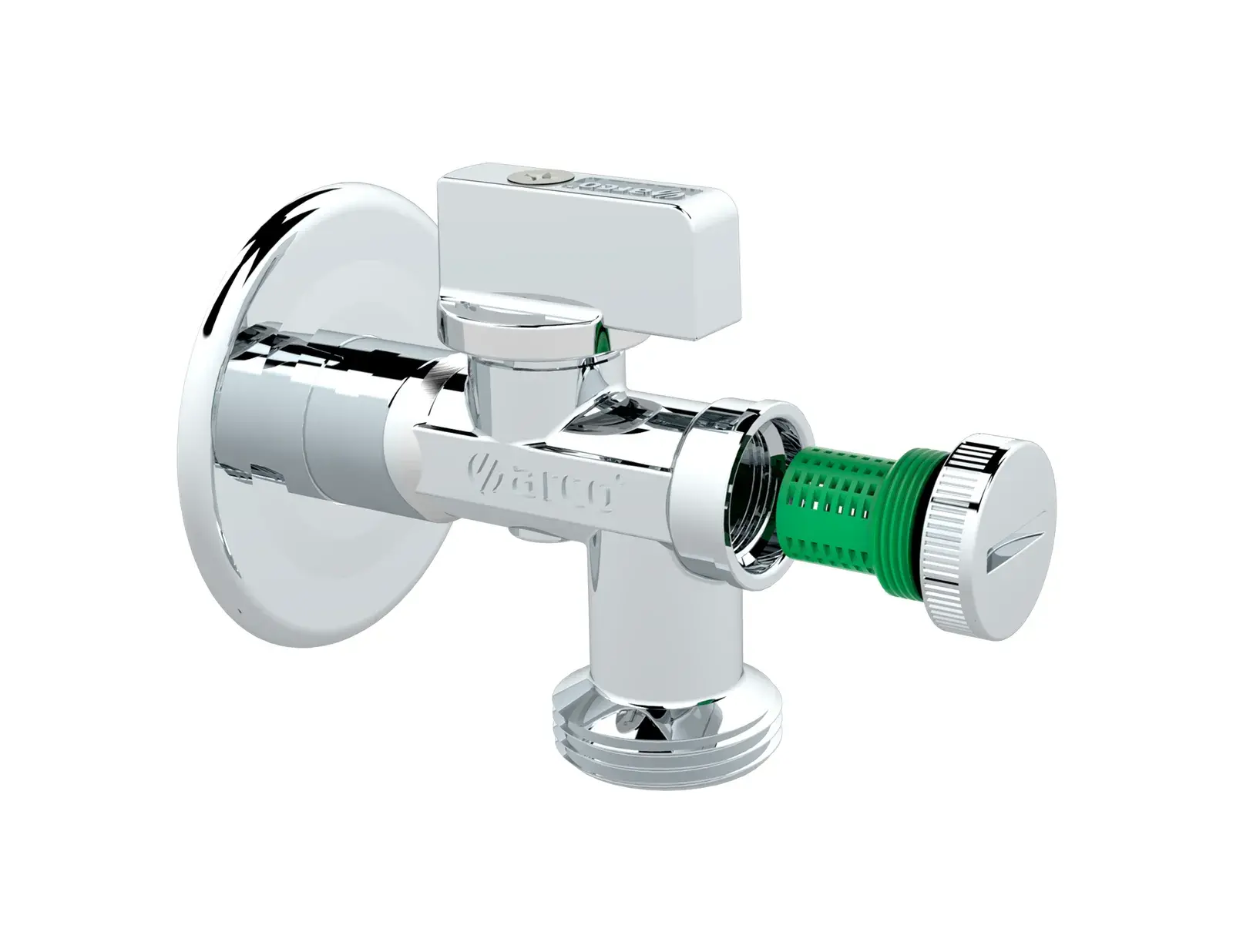

Mini washing machine valve with filter 1/2" M x 3/4" M 02408MAC
The ARCO 02408MAC from the Mini Filter range is a mini washing machine valve with filter and a chrome-plated metal handle. VITAQ FILTER is a quarter-turn angle ball valve with built-in filter and manual operation for surface mounting, where the connection is made by threaded ends. The VITAQ system increases the valve life span and flow comfort in hard water areas.
Vertical handle allows access from above.
This version has a 1/2" M x 3/4" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of brass.
Features
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- Built-in filter to prevent small solids from entering the faucet.
- European Brass, DW (4MS) quality for use in drinking water installations.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring, ensures external leaktightness.
Application
Designed for indoor plumbing installations, allowing to individually cut off the water supply to each of the 2 services connected to each outlet.
The filter makes them especially suitable for preventing the entry of small solids and other impurities, protecting elements of the installation such as the taps.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 02408MAC |
| Brand | ARCO |
| Series | Mini Filter |
| Connection | 1/2" M x 3/4" M (supplier notation: 1/2M-3/4M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass |
| Dimension A | 75 mm |
| Dimension B | 56 mm |
| Dimension C | 32 mm |
| Packaging | Individual (outer box 44 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
| EAN code | 8428519080818 |
