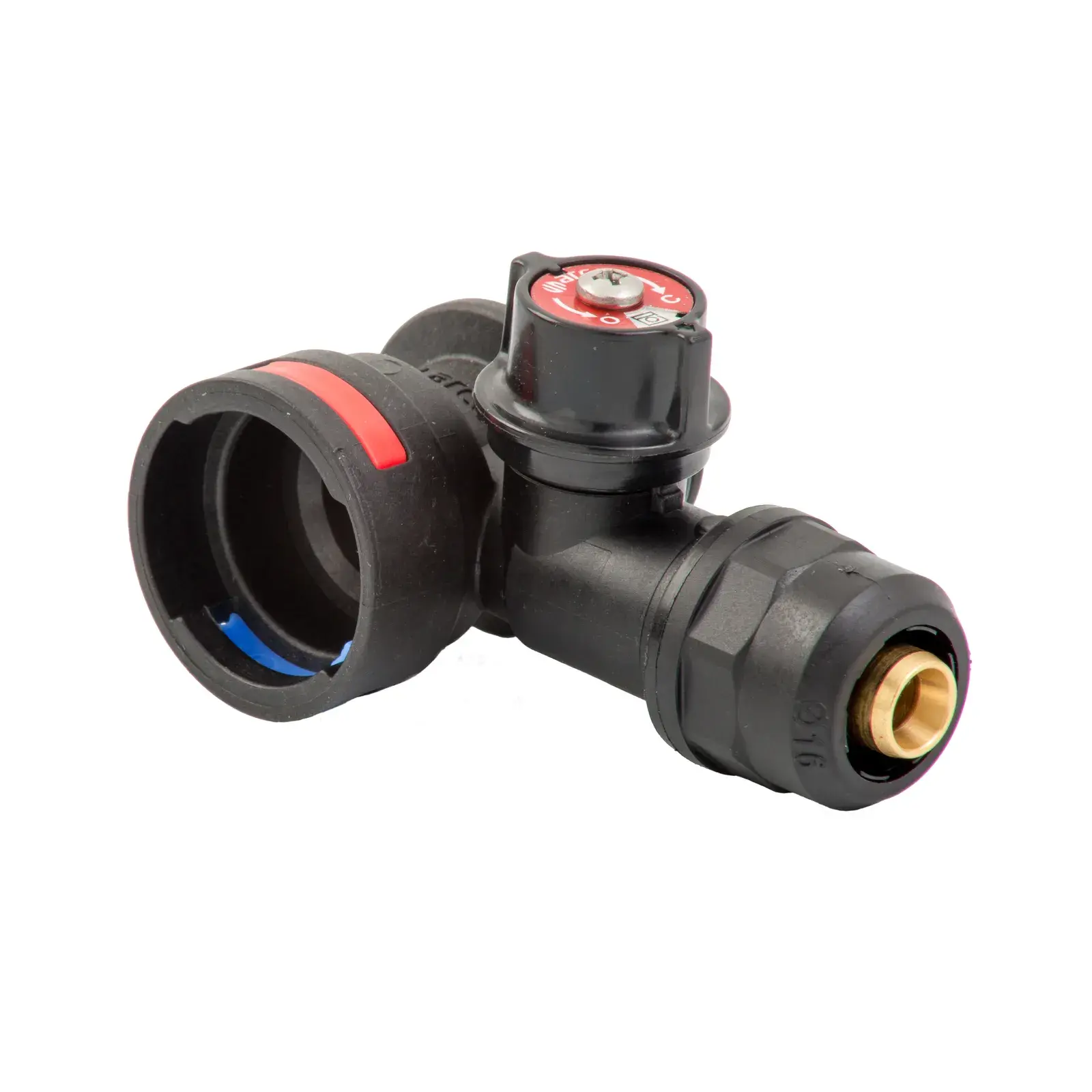

Modular manifold module for multilayer pipe UNO quick connector M x F, 1 outlet 16x2 mm 40100
The ARCO 40100 from the UNO Manifolds range is a modular manifold module for multilayer pipe. Modular manifolds with ball valves and manual operation for centralised plumbing installations. The outlet of each module is available for multilayer pipe or with threaded connection. The VITAQ system extends the life of the manifold and the flow comfort in areas with hard water.
Make easily the manifold you need.
This version has a maximum working pressure of PN 10 bar and a temperature range of 0 to 85 °C. The body is made of technical polymer.
Features
- Quick assembly thanks to the 'CLICK CLACK' system.
- 100% verified during production.
- Double O-ring ensures external watertightness.
- Robust construction in a single body for safe installation.
Application
Designed for drinking water and domestic hot water installations, allowing the water supply to be individually cut off to different consumption points.
As it is a modular system, it allows the number and type of collectors to be configured according to the installation needs.
It is recommended not to chain more than 8 modules on the same line, to avoid a significant pressure difference when more than 5 services are used simultaneously.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 40100 |
| Brand | ARCO |
| Series | UNO Manifolds |
| Connection | Quick connection M X F-1 way 16X2 |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 85 °C |
| Material body | Technical polymer |
| Dimension A | 58 mm |
| Dimension B | 28 mm |
| Dimension C | 74 mm |
| Dimension D | 93 mm |
| Dimension E | 33 mm |
| Packaging | Supplier packaging: outer box 25 pcs |
| EAN code | 8428519059715 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
