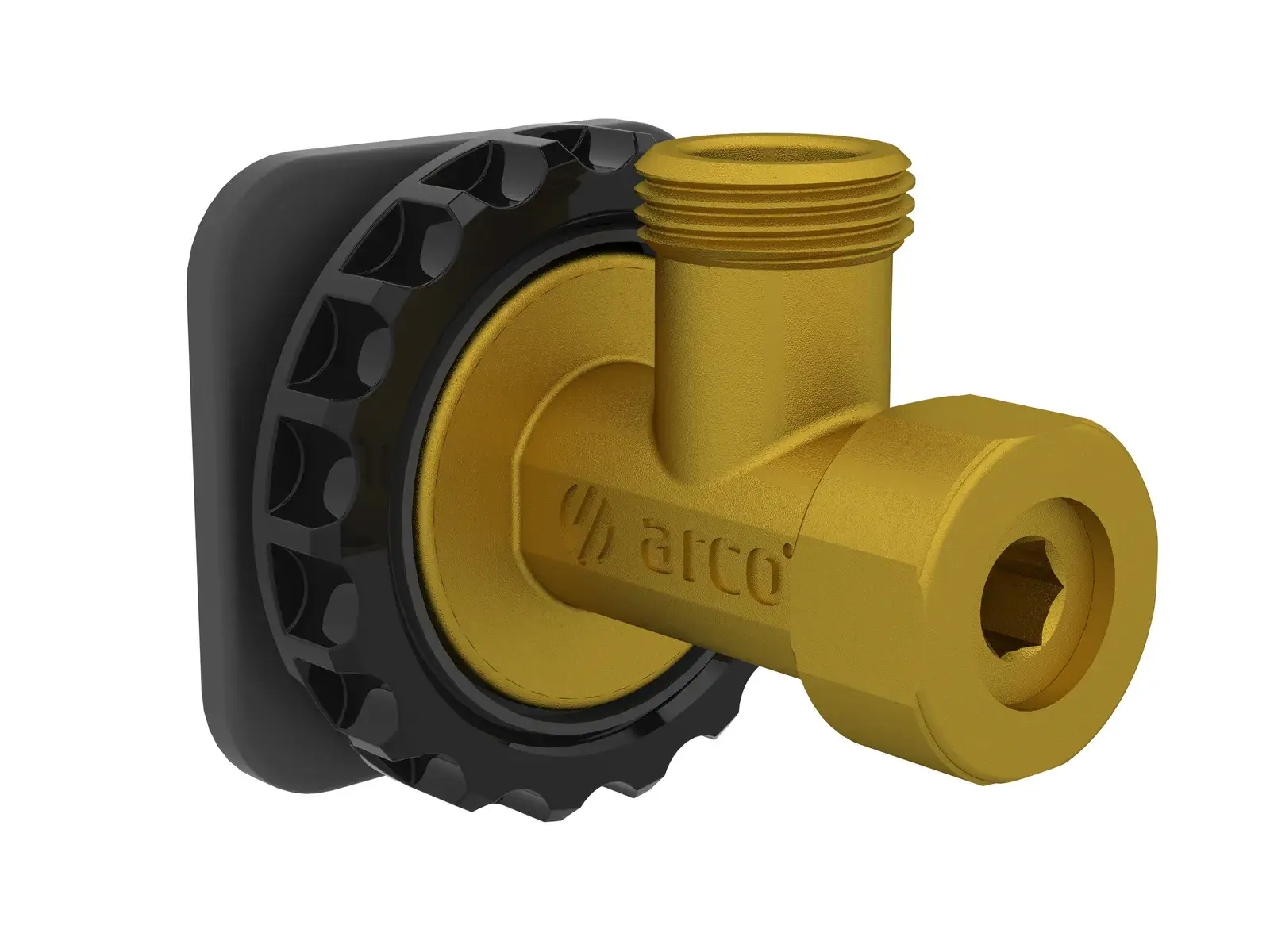

Multiturn angle valve for concealed cistern A-80 Regula 1/2" M x 3/8" M 201240
The ARCO 201240 from the A-80 Regula range is a multiturn angle valve for concealed cistern with a concealed handle. Manually operated and regulating valves for concealed cisterns. Connection to the installation is made by means of a threaded union. The spindle shutter allows fine regulation of the flow at the valve outlet.
This version has a 1/2" M x 3/8" M connection, a maximum working pressure of PN 10 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, brass color.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- Metal cap with central hole for valve operation by Allen key.
- Allows the replacement of the stem by removing the metal cap (only by professionals).
- The knurled inlet thread makes it easy to apply the sealant.
- Includes adapter and nut for fixing to the cistern.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-rings ensure external tightness.
Application
Designed for plumbing installations of concealed cisterns, allowing the water supply to be shut off.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 201240 |
| Brand | ARCO |
| Series | A-80 Regula |
| Connection | 1/2" M x 3/8" M (supplier notation: 1/2M-3/8M) |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, brass color |
| Material seat | EPDM |
| Material stem | Brass CW614N, brass color |
| Material o-rings | EPDM |
| Dimension A | 66 mm |
| Dimension B | 48 mm |
| Dimension C | 24 mm |
| Dimension D | 27 mm |
| Packaging | Supplier packaging: inner box 30 pcs, outer box 60 pcs |
| Technical sheet | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 21 ACC NY 253 |
| Certificate | Certificate NF Sanitary tapware 339-M1-25/1 |
| Certificate | Certificate KIWA K20141/08 stop and connecting cocks |
| Certificate | Certificate WRAS Water fittings 2111341 |
| EAN code | 8428519080900 |
