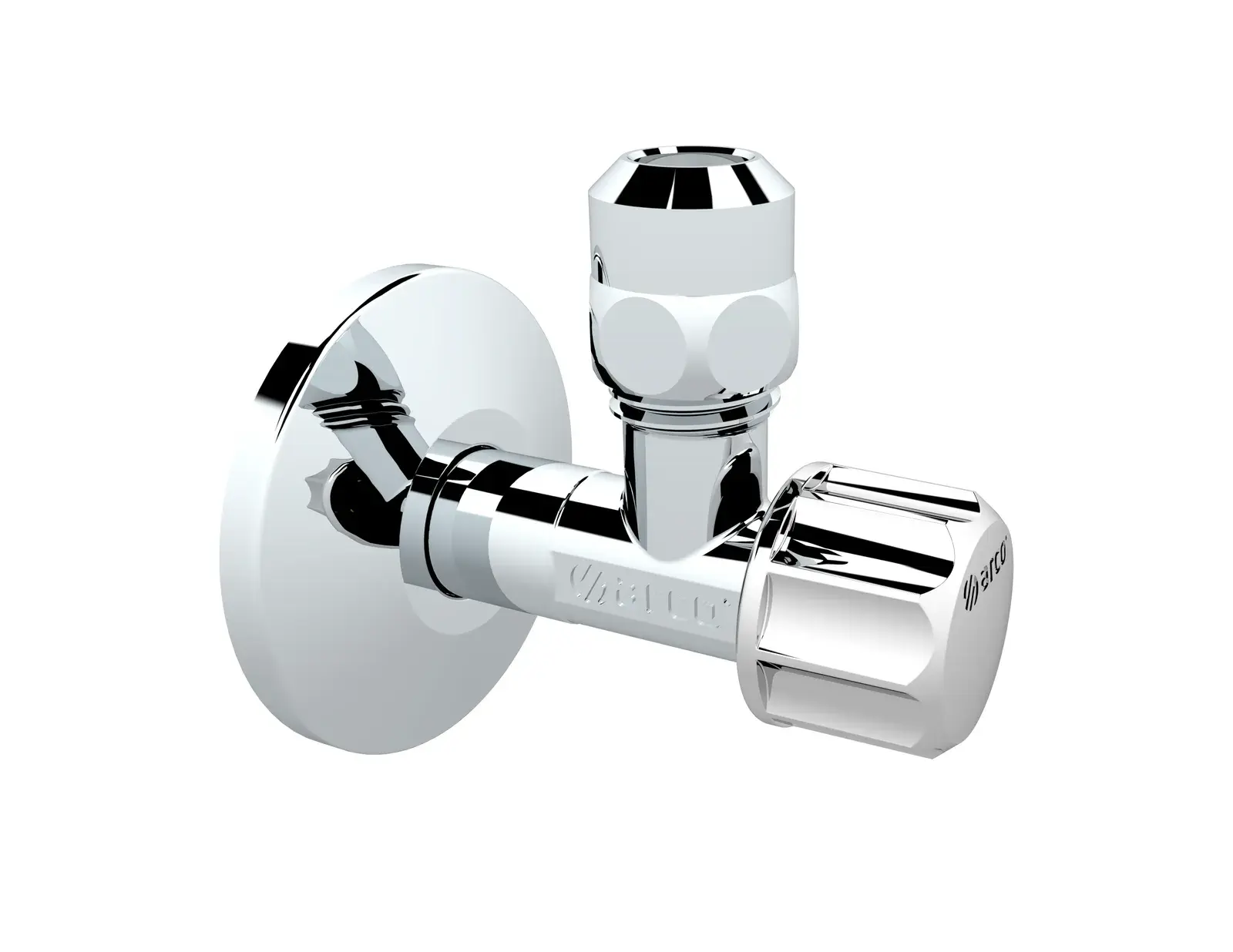

Multiturn angle valve Regula 3/8" M x 3/8" x 10 mm Z0590
The ARCO Z0590 from the Regula range is a multiturn angle valve with a chrome-plated ABS round handle. Manually operated and regulating valves for visible installations. Connection to the installation is made by means of a threaded union. The spindle shutter allows fine regulation of the flow at the valve outlet.
This version has a 3/8" M x 3/8" x 10 mm connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- Compact handle with curved surfaces for easier handling and better grip.
- Secure, riveted body prevents spindle extraction.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring ensures external tightness.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | Z0590 |
| Brand | ARCO |
| Series | Regula |
| Connection | 3/8" M x 3/8" x 10 mm (supplier notation: 3/8M-3/8 X 10) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material rosette | Stainless steel |
| Material sleeve | PA (depending on model) |
| Material nut | Brass CW614N, chrome plated (depending on model) |
| Material o-rings | EPDM |
| Material handle | ABS + PC, chrome plated |
| Dimension A | 84 mm |
| Dimension B | 48 mm |
| Dimension C | 41 mm |
| Packaging | Individual (outer box 84 pcs) |
| Technical sheet | Download PDF |
| Certificate | Acoustic certificate PAI-IX 046/IA |
| Certificate | Certificate of sanitary conformity (ACS) 24 ACC NY 233 |
| EAN code | 8428519084847 |
