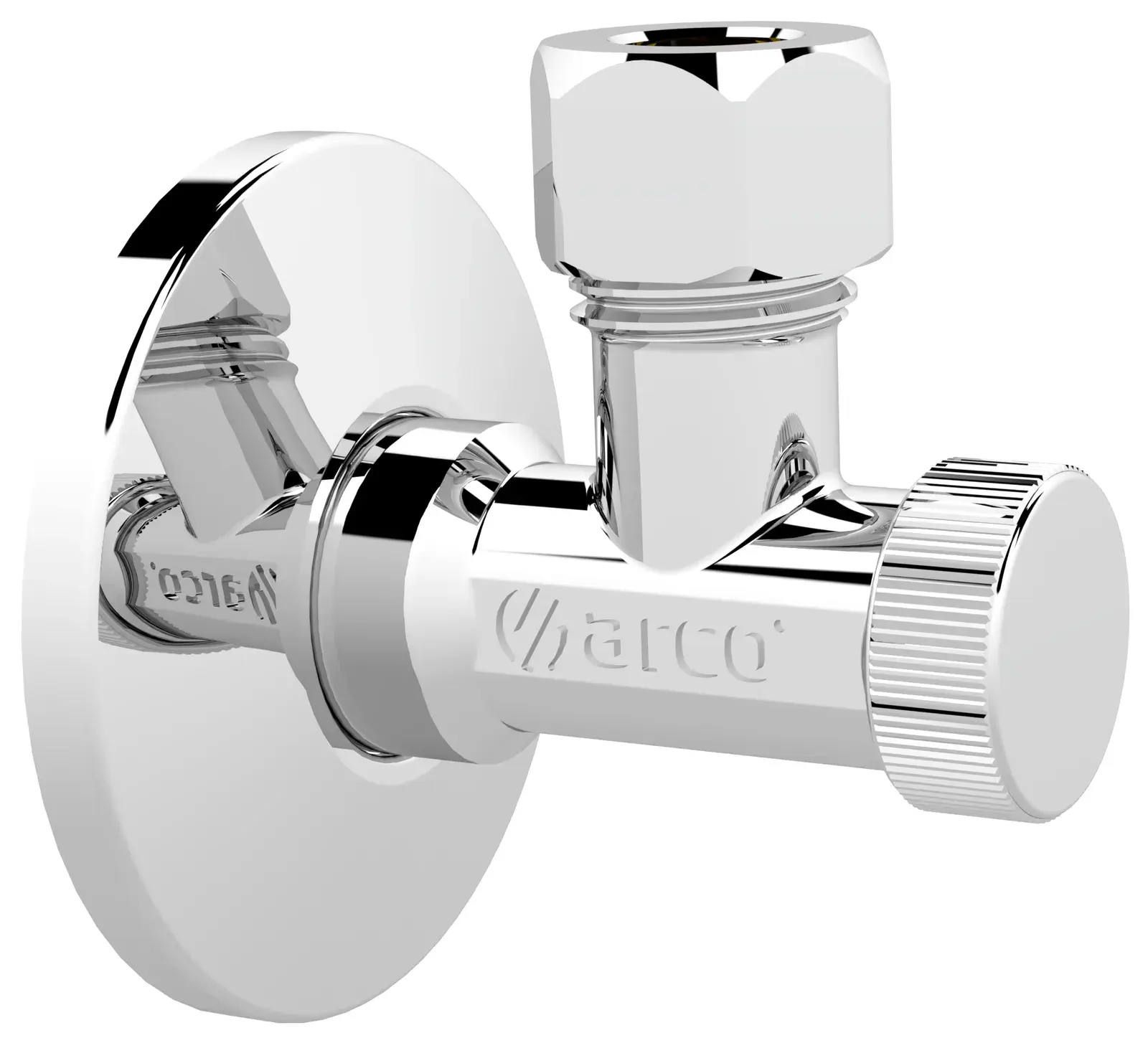

Multiturn angle valve with concealed handle Regula 1/2" M x 3/8" x 10 mm ZS600
The ARCO ZS600 from the Regula range is a multiturn angle valve with a concealed handle. Angle valves for surface mounting with regulation and manual operation. The spindle shutter allows fine flow regulation at the valve outlet. Its operation is not possible without the appropriate tool. Additionally, access to the spindle is protected by a metal cap providing greater durability.
This version has a 1/2" M x 3/8" x 10 mm connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- Hidden handle prevents manipulation in public spaces such as hotels, restaurants, hospitals and schools. Requires an Allen key for operation.
- Metal cap that strongly protects access to the operating stem.
- Safe, riveted body prevents spindle extraction.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring, ensures external leaktightness.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
The absence of a handle makes them ideal for use in public places where we want to avoid valve manipulation: hotels, restaurants, hospitals, schools.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | ZS600 |
| Brand | ARCO |
| Series | Regula |
| Connection | 1/2" M x 3/8" x 10 mm (supplier notation: 1/2M-3/8 X 10) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material rosette | Stainless steel |
| Material body | Brass CW617N, chrome plated |
| Dimension A | 60 mm |
| Dimension B | 39 mm |
| Dimension C | 33 mm |
| Packaging | Individual (outer box 100 pcs) |
| Technical sheet | Download PDF |
| Certificate | Acoustic certificate PAI-IX 046/IA |
| Certificate | DIN-DVGW type examination certificate NW-6115DL0356 |
| Certificate | Certificate of sanitary conformity (ACS) 24 ACC NY 233 |
| EAN code | 8428519074688 |
