Multiturn embedded valve Texas 3/4" F x 3/4" F 35110

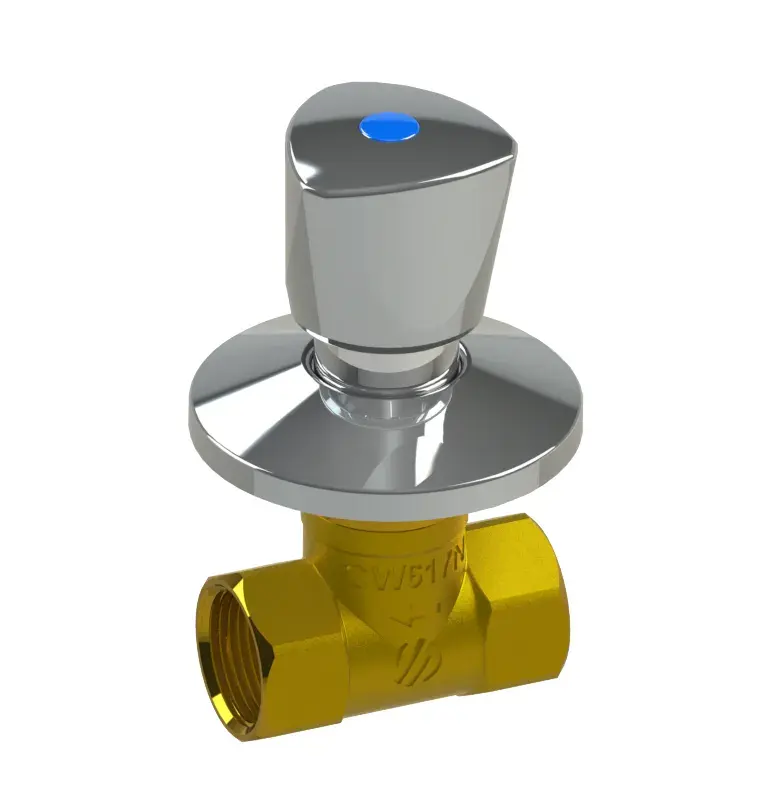

The ARCO 35110 from the Texas range is a multiturn embedded valve with a chrome-plated ABS triangular handle. Multiturn valves with manual operation for embedded installation in the wall. The connection to the pipe is made by threaded ends. The spindle shutter allows fine regulation of the outlet flow.
This version has a 3/4" F x 3/4" F connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 85 °C. The body is made of Brass CW617N, brass color.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- Valve-handle assembly regulation system for perfect fixing and adaptation to the wall.
- 100% valves are tested for inner leakage.
- Strong construction for safe installations.
- Nickel-free in the passage of water.
Application
Designed for drinking water and domestic hot water installations recessed in the wall, allowing regulation and shut-off of the water supply to the points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 35110 |
| Brand | ARCO |
| Series | Texas |
| Connection | 3/4" F x 3/4" F (supplier notation: 3/4F-3/4F) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 85 °C |
| Material body | Brass CW617N, brass color |
| Material nut | Stainless steel |
| Material flat joint | EPDM |
| Material closure | Brass CW617N, brass color |
| Material rosette | Stainless steel |
| Material handle | ABS, chrome plated |
| Material stem | Brass CW617N, brass color |
| Material o-ring | EPDM |
| Dimension A | 60 mm |
| Dimension B | 70 mm |
| Dimension C | 103 mm |
| Packaging | Supplier packaging: inner box 9 pcs, outer box 18 pcs |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| EAN code | 8428519072660 |
