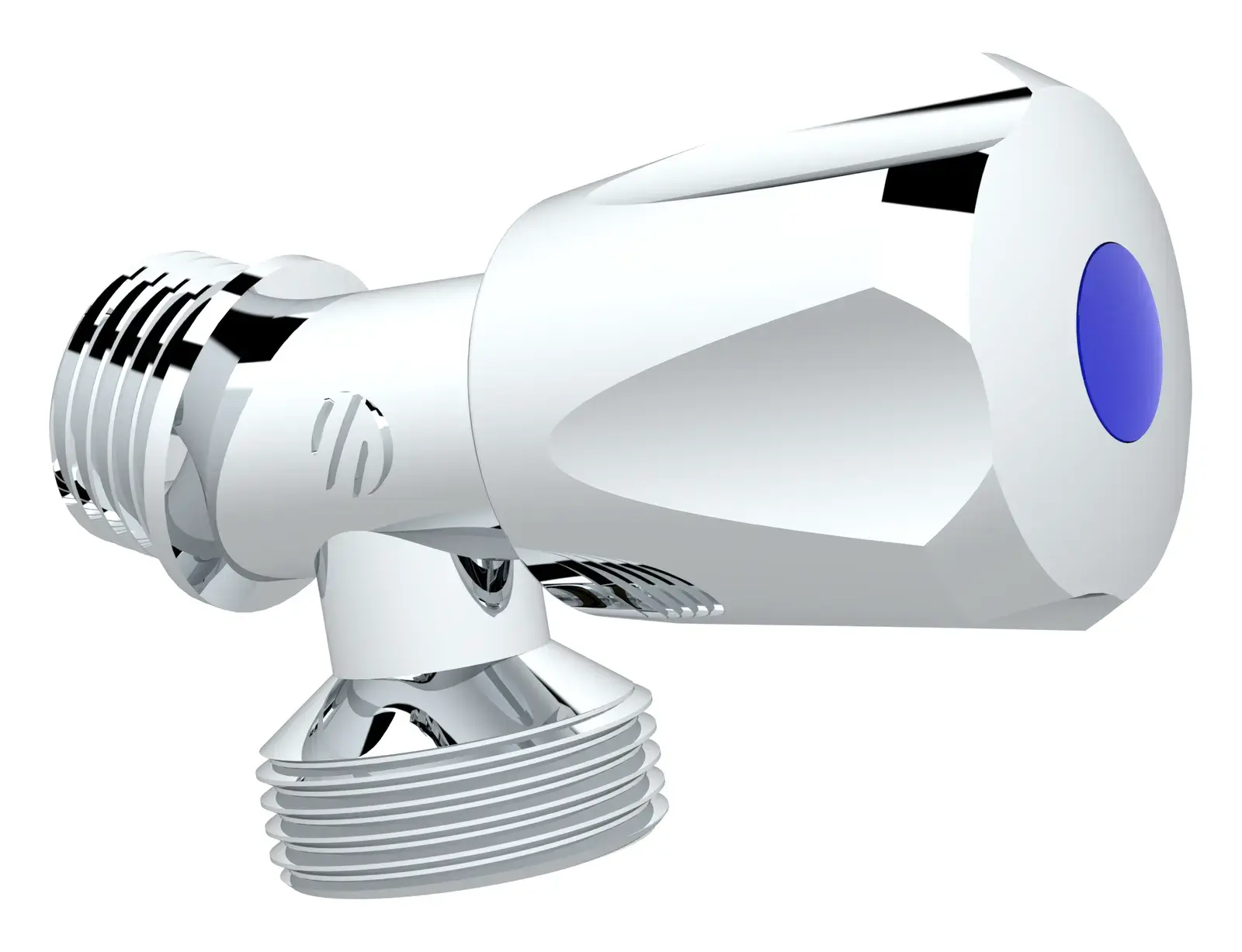

Multiturn inclined washing machine angle valve Regula 1/2" M x 3/4" M Z0800
The ARCO Z0800 from the Regula range is a multiturn inclined washing machine angle valve with a chrome-plated ABS handle. Regula is a manually operated angle regulating valve for surface mounting. The spindle shutter allows fine regulation of the outlet flow.
This version has a 1/2" M x 3/4" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- Extra big handle with curved faces for a better grip and easier operation.
- Double o-ring, ensures external leaktightness.
- 100% leak tested in the factory, double tested at low and high pressure.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to washing machines, dishwashers and any other water outlet point.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | Z0800 |
| Brand | ARCO |
| Series | Regula |
| Connection | 1/2" M x 3/4" M (supplier notation: 1/2M-3/4M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material seat | NBR |
| Material stem | Brass CW614N, brass color |
| Material o-rings | NBR |
| Material handle | ABS, chrome plated |
| Dimension A | 72 mm |
| Dimension B | 43 mm |
| Dimension C | 27 mm |
| Packaging | Supplier packaging: inner box 35 pcs, outer box 70 pcs |
| Technical sheet | Download PDF |
| Certificate | Acoustic certificate PAI-IX 046/IA |
| Certificate | Certificate of sanitary conformity (ACS) 24 ACC NY 233 |
| EAN code | 8428519085479 |
