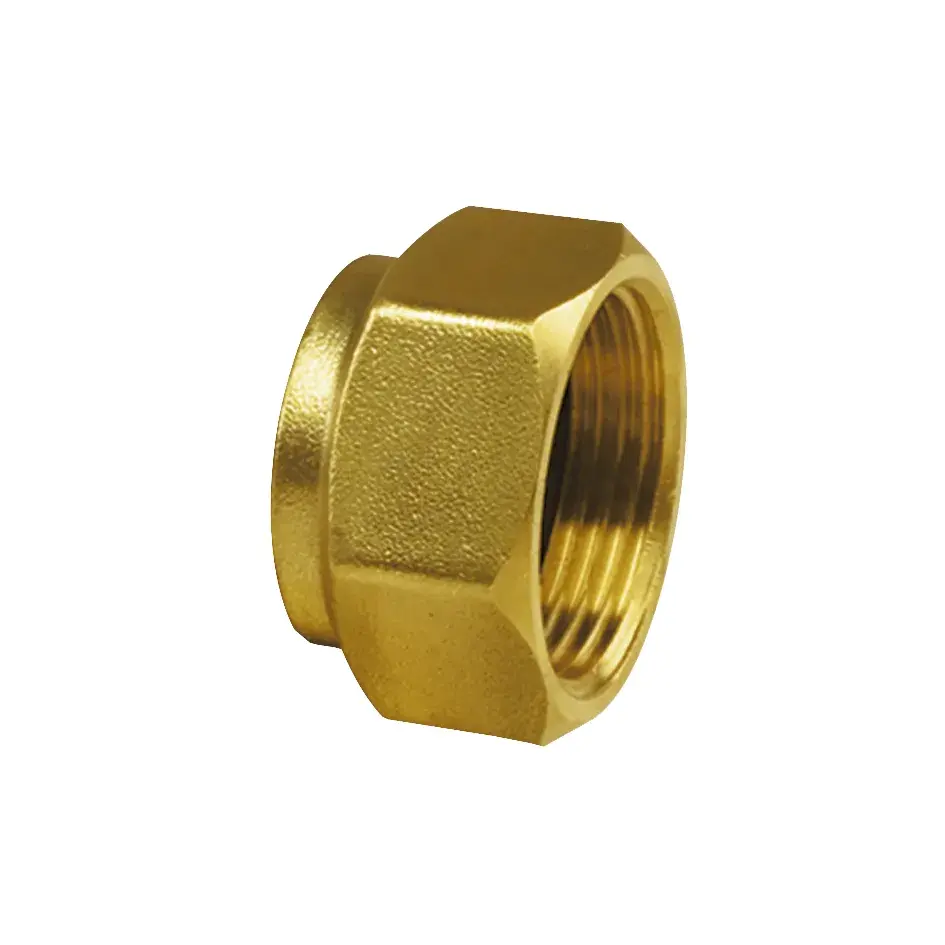

Nut with left-hand thread Sil 3/4" left-hand F x 7/8" F (10 pieces) 04554
The ARCO 04554 from the Sil range is a nut with left-hand thread. The series includes a wide range of angle and straight models. Designed according to UNE 19804.
This version has a 3/4" left-hand F x 7/8" F connection and a temperature range of 0 to 65 °C. The body is made of Brass CW617N, brass color.
This item is supplied in a bag of 10 pieces.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- Nickel-free water passage for greater healthiness.
- VITAQ system: more life, less limescale, depending on the model.
- 100% valves are tested for inner leakage.
- Double o-ring, ensures external leaktightness.
- Maximum thread length for demanding installations.
- Outlet models for water meters incorporate an internal check valve.
- Strong construction and safe installations.
Application
Due to their design and materials, they are suitable for use in cold water meter installations, in battery or single installations, service connections and drinking water networks.
And in general, all those applications that require a valve capable of shutting off the supply of a fluid, guaranteeing tightness in accordance with the specified service conditions.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 04554 |
| Brand | ARCO |
| Series | Sil |
| Connection | 3/4" left-hand F x 7/8" F (supplier notation: 3/4 Left F-7/8F) |
| Temperature | 0 to 65 °C |
| Material body | Brass CW617N, brass color |
| Packaging | Bag of 10 pcs (outer box 150 pcs) |
| Technical sheet | Download PDF |
