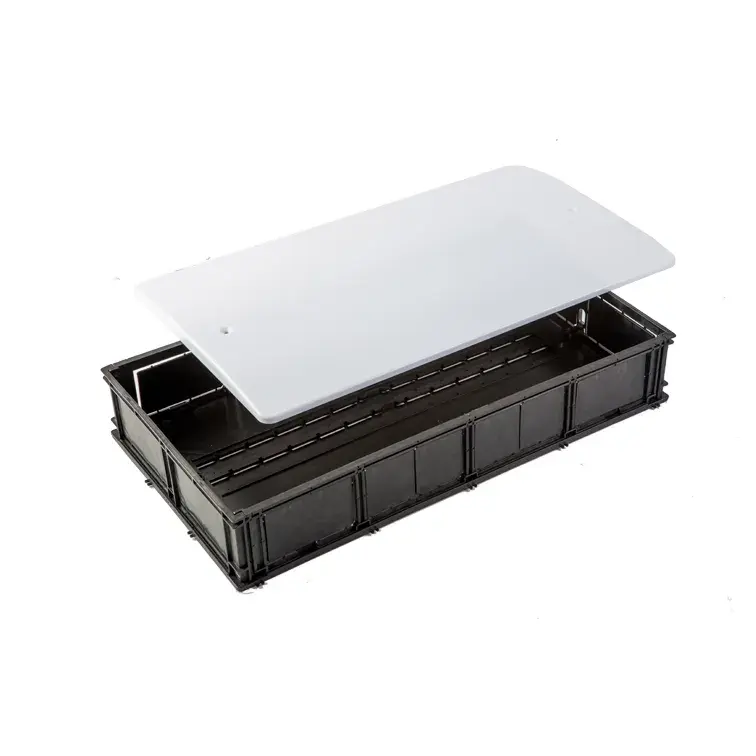

Plastic box 400x265x80 mm 38520
The ARCO 38520 is a plastic box. Modular manifolds with ball valves and manual operation for centralised plumbing installations. The outlet of each module is available for multilayer pipe or with threaded connection. The VITAQ system extends the life of the manifold and the flow comfort in areas with hard water.
This version has a maximum working pressure of PN 80 bar and a temperature range of 4 to 5 °C. The body is made of technical polymer.
Features
- Quick assembly thanks to the 'CLICK CLACK' system.
- 100% verified during production.
- Double O-ring ensures external watertightness.
- Robust construction in a single body for safe installation.
Application
Designed for drinking water and domestic hot water installations, allowing the water supply to be individually cut off to different consumption points.
As it is a modular system, it allows the number and type of collectors to be configured according to the installation needs.
It is recommended not to chain more than 8 modules on the same line, to avoid a significant pressure difference when more than 5 services are used simultaneously.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 38520 |
| Brand | ARCO |
| Connection | 400X265X80 |
| Max. pressure | PN 80 bar |
| Temperature | 4 to 5 °C |
| Material body | Technical polymer |
| Dimension A | 400 mm |
| Dimension B | 265 mm |
| Dimension C | 80 mm |
| Packaging | Supplier packaging: outer box 10 pcs |
| EAN code | 8428519057704 |
| Technical sheet | Download PDF |
