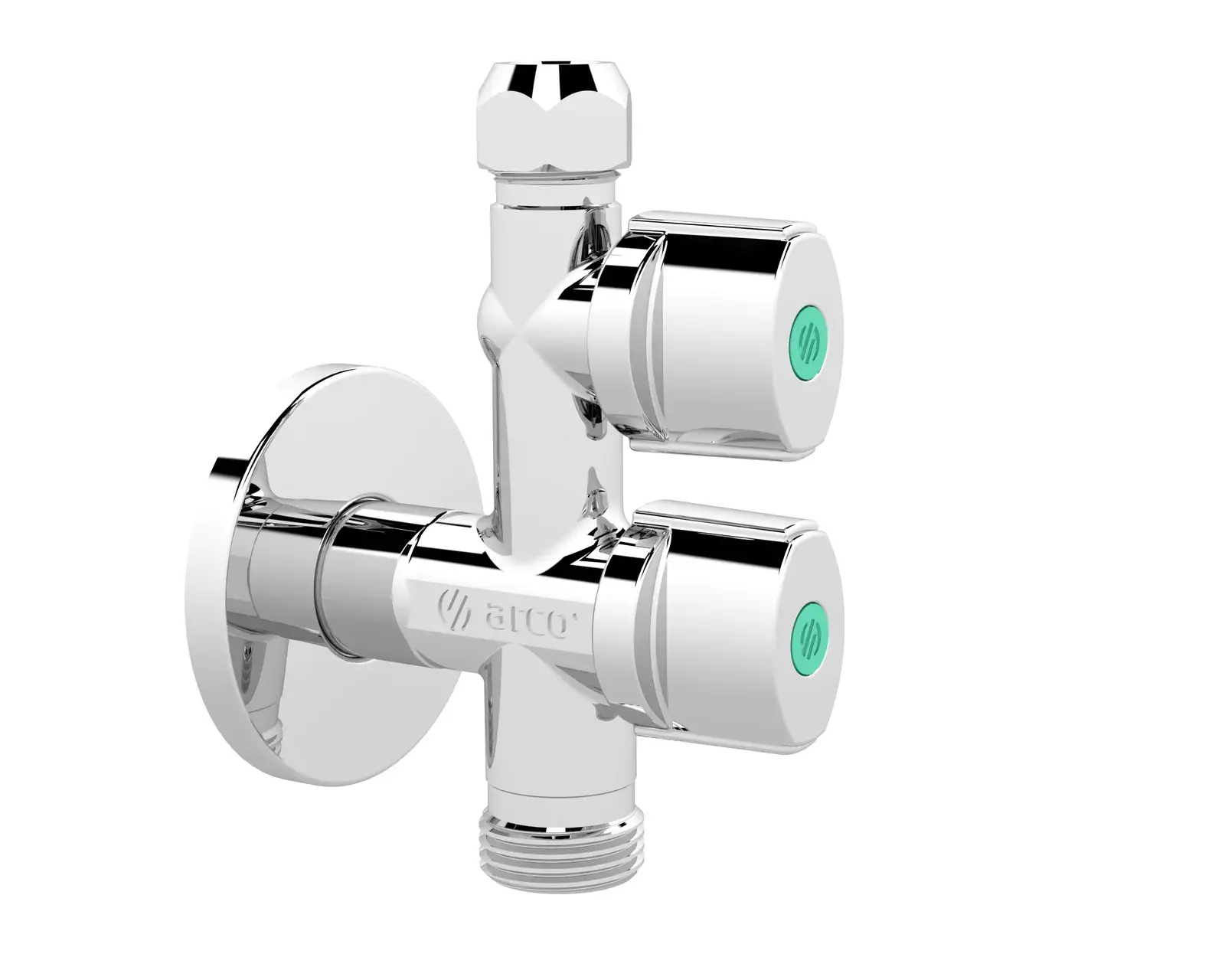

Polished chrome double angle valve A-80 Combi 1/2" M x 1/2" M x 3/8" x 10 mm COMB10MAC
The ARCO COMB10MAC from the A-80 Combi range is a polished chrome double angle valve with a metal Nova handle. COMBI are 2 independent quarter-turn angle ball valves in a single body for surface mounting. This valve allows the water supply to be cut off independently to the equipment connected at each of its two outlets, providing the following advantages: The VITAQ system increases the valve life span and flow comfort in hard water areas.
Great Arco Patent. Easy to install and very versatile for any application.
This version has a 1/2" M x 1/2" M x 3/8" x 10 mm connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- A single water inlet and two independent outlets in a single body.
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring.
- Metal handle.
- Some models include check valve.
- Avoids unnecessary work when there is only one water point and two services are required.
- Fewer threaded fittings.
- More than 80% reduction in installation time.
- Compact, less installation space needed.
- Increased reliability and safety of the installation thanks to fewer connections.
Application
Designed for indoor plumbing installations, allowing to individually cut off the water supply to each of the 2 services connected to each outlet.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | COMB10MAC |
| Brand | ARCO |
| Series | A-80 Combi |
| Connection | 1/2" M x 1/2" M x 3/8" x 10 mm (supplier notation: 1/2M-1/2M X 3/8-10) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material o-ring | NBR |
| Material stem-ball | Anti-lime polymer, VITAQ |
| Material handle | Zamak, chrome plated |
| Material seat | NBR |
| Material rosette | Stainless steel |
| Material body | Brass CW617N, chrome plated |
| Material sleeve | POM |
| Material nut | Brass CW614N, chrome plated |
| Dimension A | 86 mm |
| Dimension B | 50 mm |
| Dimension C | 67 mm |
| Dimension D | 35 mm |
| Packaging | Individual (outer box 40 pcs) |
| EAN code | 8428519060872 |
| Technical sheet | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 236 |
