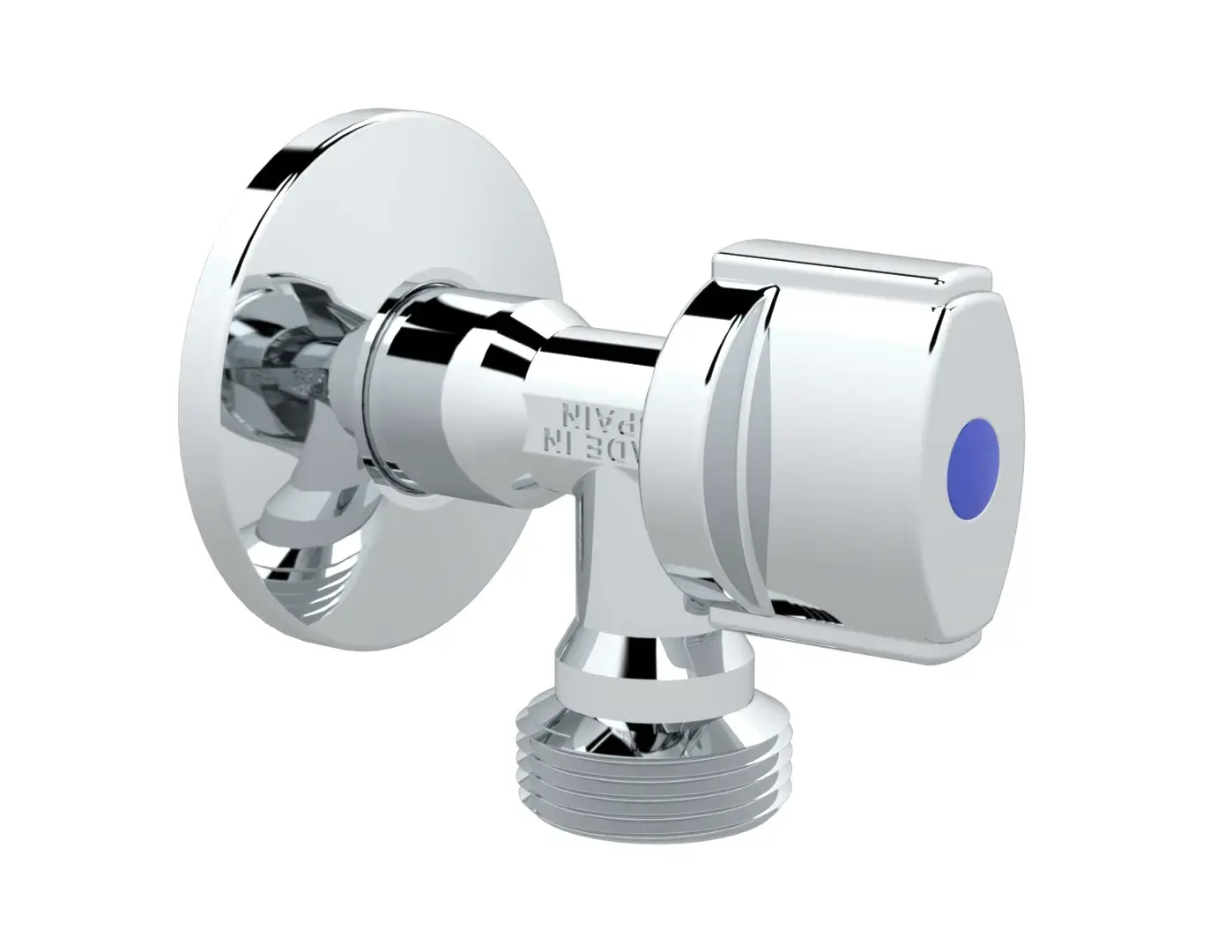

Polished chrome washing machine valve with check valve L-85 1/2" M x 3/4" M RT733
The ARCO RT733 from the L-85 range is a polished chrome washing machine valve with check valve and an ABS Nova handle. Quarter-turn angle ball valves for surface mounting with manual operation, where the connection is made by threaded ends. Some models have a built-in check valve to prevent contamination of drinking water by backflow.
This version has a 1/2" M x 3/4" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring, ensures external leaktightness.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to washing machines and dishwashers.
The L-86 model is compact and vertically operated, allowing access to the handle from the top, for example when the washing machine connection is behind it.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | RT733 |
| Brand | ARCO |
| Series | L-85 |
| Connection | 1/2" M x 3/4" M (supplier notation: 1/2M-3/4M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Dimension A | 79 mm |
| Dimension B | 45 mm |
| Dimension C | 38 mm |
| Packaging | Individual (outer box 60 pcs) |
| EAN code | 8428519025321 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate Belg 24/239/30b for anti-pollution protection equipment |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
