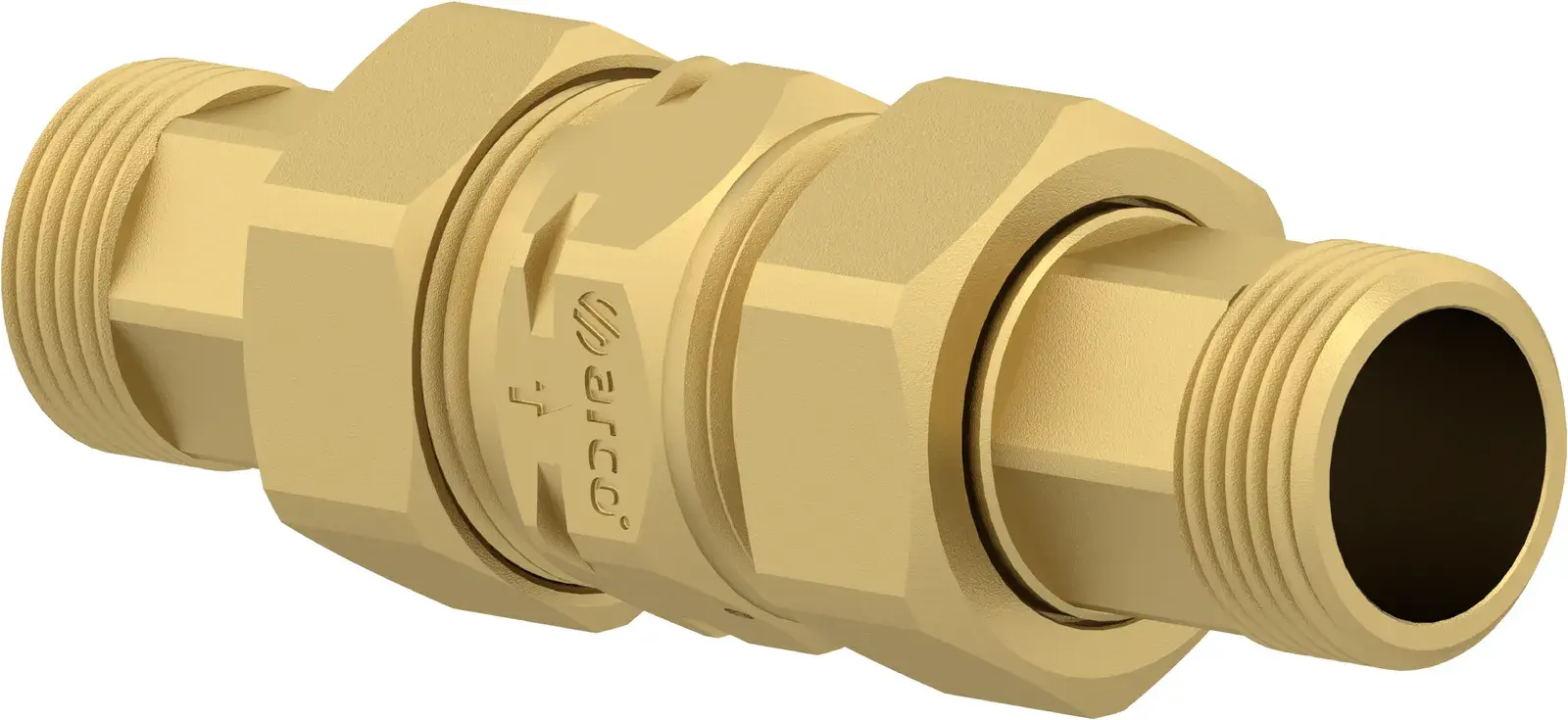

Pressure limiting valve Stop 1" M x 1" M VL030
The ARCO VL030 from the Stop range is a pressure limiting valve. The non-adjustable pressure limiter is suitable for indoor plumbing installations and limits the pressure 24 hours a day, even when no water is being used. Protects the indoor plumbing installations from the adverse effects of high pressure.
This version has a 1" M x 1" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 50 °C. The body is made of Brass CW617N, brass color.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- Limits the outlet pressure to between 3 and 5 bar.
- Compact.
- 100% valves are tested for inner leakage.
Application
Individual cold drinking water plumbing installations where the inlet pressure to the limiter is always between 5 and 16 bar. This device may not be used in installations where the inlet pressure may be less than 5 bar or more than 16 bar for some period. See installation instructions for more information.
The outlet pressure of the pressure limiter cannot be adjusted; it is set in the factory to a nominal value of 4 bar, with the tolerances shown in the graph 'Influence of inlet pressure' (between 3 and 5 bar).
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | VL030 |
| Brand | ARCO |
| Series | Stop |
| Connection | 1" M x 1" M (supplier notation: 1M-1M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 50 °C |
| Material nut | Brass CW617N, brass color |
| Material flat joint | NBR |
| Material o-ring | FKM |
| Material body | Brass CW617N, brass color |
| Material piston | POM |
| Material spring | Stainless steel |
| Dimension A | 118 mm |
| Dimension B | 60 mm |
| Packaging | Supplier packaging: inner box 12 pcs, outer box 24 pcs |
| EAN code | 8428519043899 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Hygienic Certificate B-BK-60110.1178.2023 |
