Safety relief valve 6 bar Stop 1/2" M x 1/2" F 504506
€ 7,02
(Incl. 21%)
€ 5,80
(Excl. 21%)

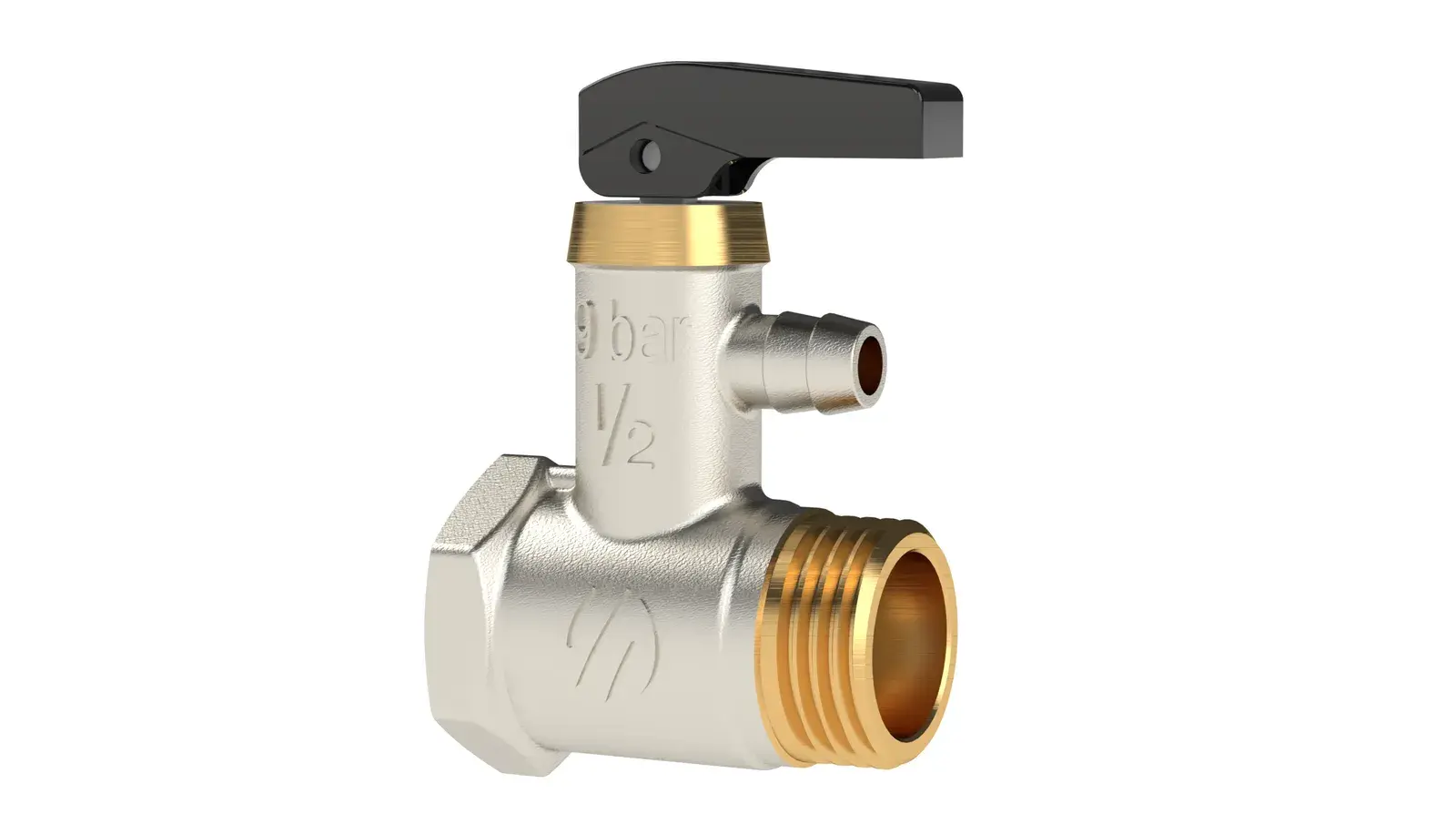

The ARCO 504506 from the Stop range is a safety relief valve 6 bar.
This version has a 1/2" M x 1/2" F connection, a maximum working pressure of PN 6 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- 6 bar, classical opening pressure for regular networks.
- 9 bar: avoids needless openings.
- Hot water backflow prevention system.
- Connection to the 8 mm pipe for discharge.
- Lever for manual discharge or checking, with locking device.
Application
Electric water heaters. The valve is fitted at the inlet of the electric water heater, protecting the heater and the water network from overpressure.
Loyalty Points
Earn from this purchase
+3
points
Max discount with points
3.51€
Using 351 points
Purchase this item to earn 3 points. As a loyalty member, you can use your points to save up to 3.51€ on this order!
Returns
14-day return policy
Secure Payment
Guarantee secure payments
24/7 Dedicated Support
Anywhere & anytime
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 504506 |
| Brand | ARCO |
| Series | Stop |
| Connection | 1/2" M x 1/2" F (supplier notation: 1/2M-1/2F) |
| Max. pressure | PN 6 bar |
| Temperature | 0 to 95 °C |
| Material spring | Stainless steel |
| Material flat joint | Silicone rubber |
| Material body | Brass CW617N, chrome plated |
| Material seat | POM |
| Material o-ring | NBR |
| Material stem | PA |
| Material handle | PA, black |
| Dimension A | 40 mm |
| Dimension B | 26 mm |
| Dimension C | 48 mm |
| Packaging | Supplier packaging: outer box 68 pcs |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Hygienic Certificate B-BK-60110.1673.2023 |
| EAN code | 8428519082782 |
