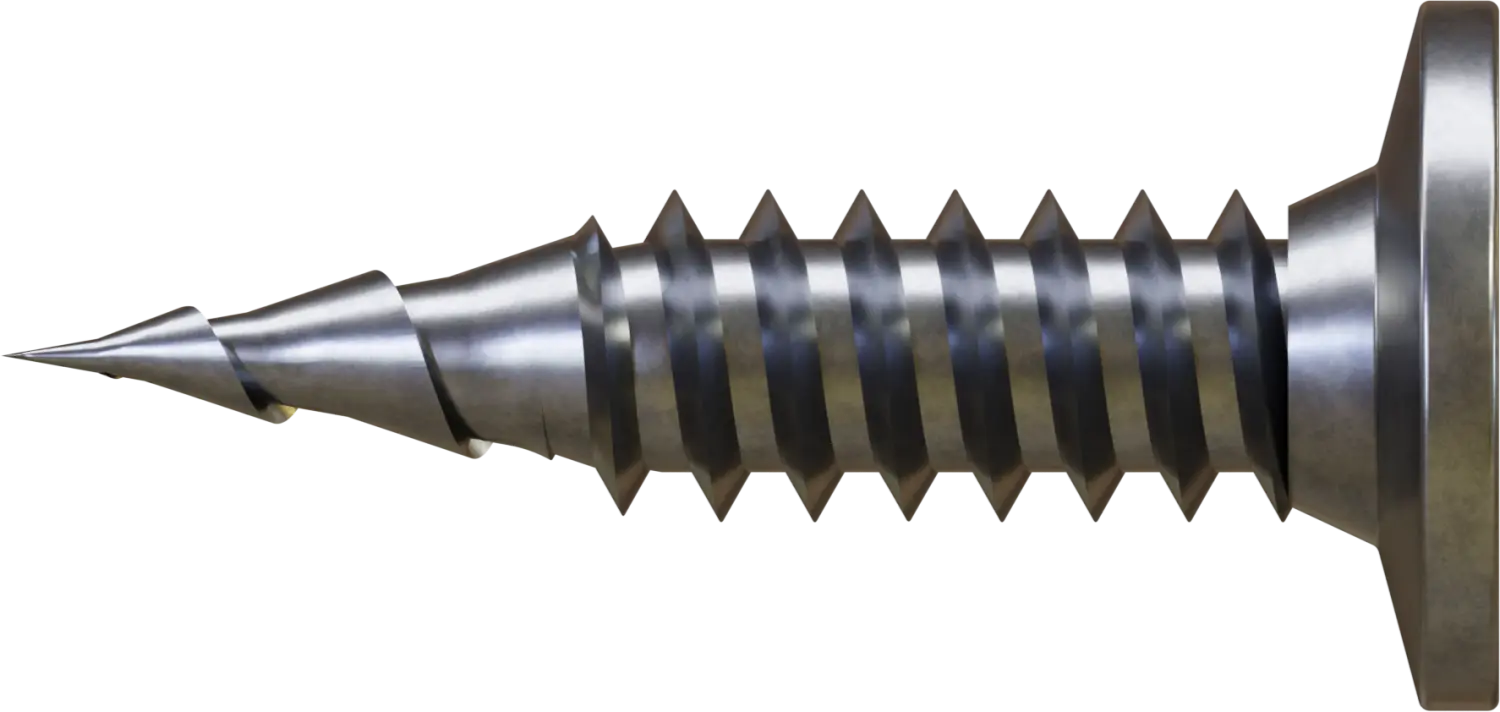

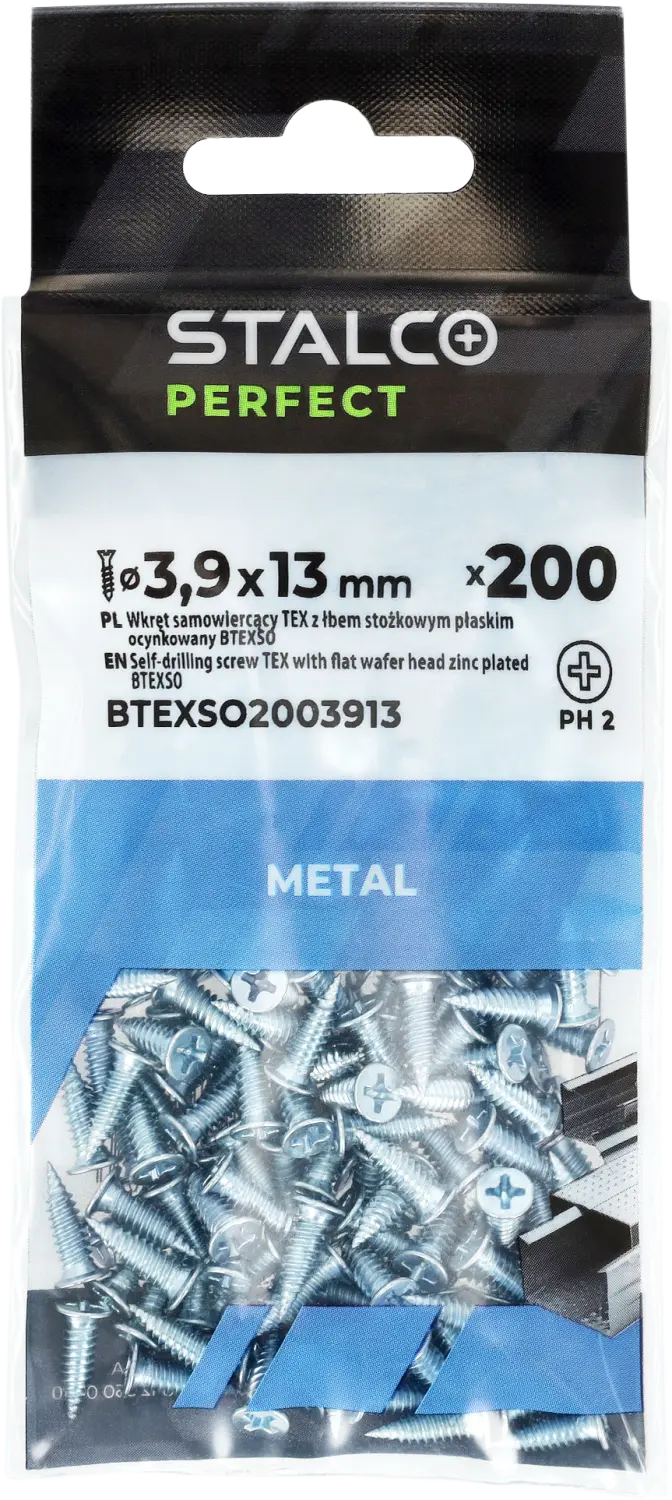

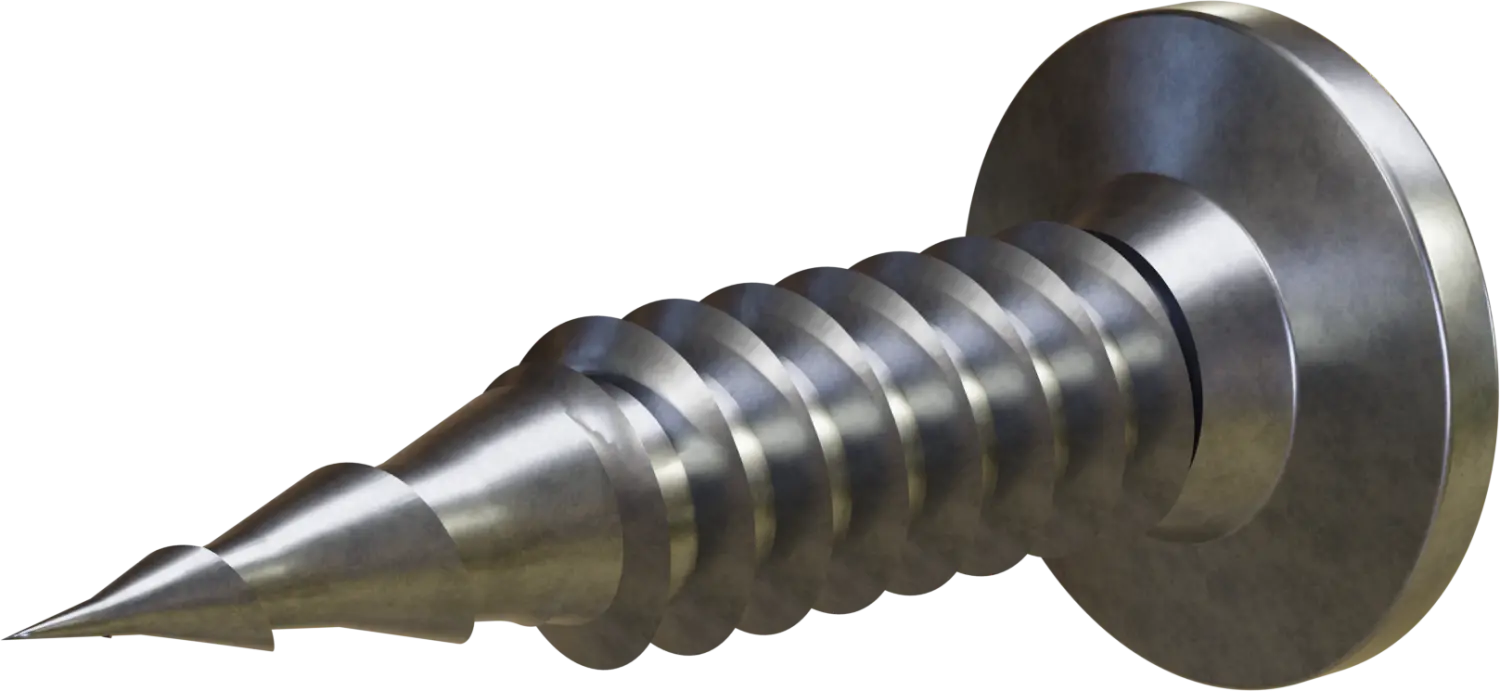

Self-Drilling TEX Screw Zinc-Plated Flat Countersunk (PH2) 3.9x13 100 pcs STALCO BTEXSO1003913
FEATURES:
- designed for connecting fastening elements in interior drywall systems, including hangers and profiles, as well as for fastening steel sheets and installations such as air-conditioning systems
- galvanic zinc coating provides increased corrosion resistance
- suitable for connecting steel elements with a combined thickness of up to 2 × 0.6 mm, with a maximum drilling thickness of 1.0 mm
- sharp tip enables quick installation without pre-drilling
- flat countersunk head sits flush with the mounted profile, reducing the risk of stresses that could cause plasterboard cracking after installation
- high strength ensures stable and durable connections between steel profiles, helping prevent unwanted displacement

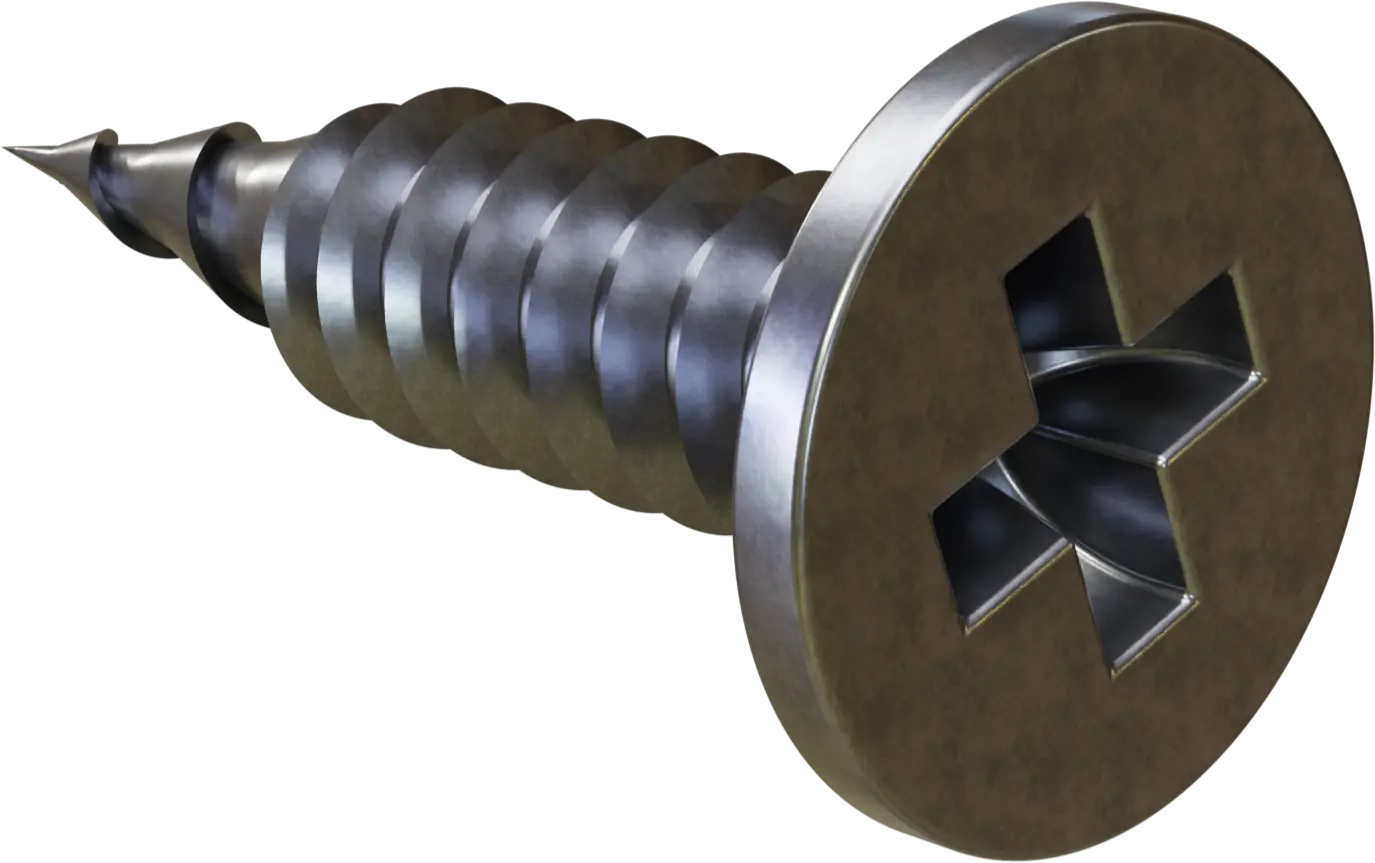

- deep PH2 Phillips recess enables quick and secure installation, including when using bits equipped with a depth limiter
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
TEXSO self-drilling screws are designed for connecting steel elements, including profiles and hangers used in drywall construction, as well as for fastening steel sheets and components in air-conditioning installations. They are suitable for connecting steel elements with a combined thickness of up to 2 × 0.6 mm and can drill through steel up to 1.0 mm thick. The sharp tip enables quick installation without pre-drilling, helping to improve efficiency during assembly work.
The screws feature a flat, countersunk head that sits flush with the surface of the mounted profile, reducing the risk of stress that could cause plasterboard cracking after installation. Their high strength ensures stable and durable connections, helping prevent unwanted movement of steel profiles. The galvanic zinc coating provides increased corrosion resistance, making the screws suitable for dry interiors and areas with increased humidity. The deep PH2 Phillips recess ensures secure bit engagement and efficient installation, including when using bits equipped with a depth stop.
CHARACTERISTICS:
- designed for connecting hangers and steel profiles in interior drywall systems, as well as for steel sheets and air-conditioning installations
- galvanic zinc coating provides increased corrosion resistance
- suitable for connecting steel elements with a combined thickness of up to 2 × 0.6 mm
- maximum drilling capacity of up to 1.0 mm in steel
- sharp tip enables quick installation without pre-drilling
- flat, countersunk head sits flush with the mounted surface, reducing the risk of plasterboard cracking
- high strength ensures stable and durable connections between steel profiles
- deep PH2 Phillips recess enables quick and secure installation, including with bits equipped with a depth stop
PRODUCT MATERIAL: galvanized steel
APPLICATION:
- connecting steel profiles and hangers in interior drywall systems
- assembling air-conditioning installations
- fastening steel sheets up to 1.0 mm thick
ASSEMBLY INSTRUCTIONS:
- Position the screw perpendicular to the surfaces of the steel profiles being connected.
- Drive the screw in until the head sits completely flush with the surface of the element being fastened.
- Avoid applying excessive pressure to prevent material damage or thread stripping.
