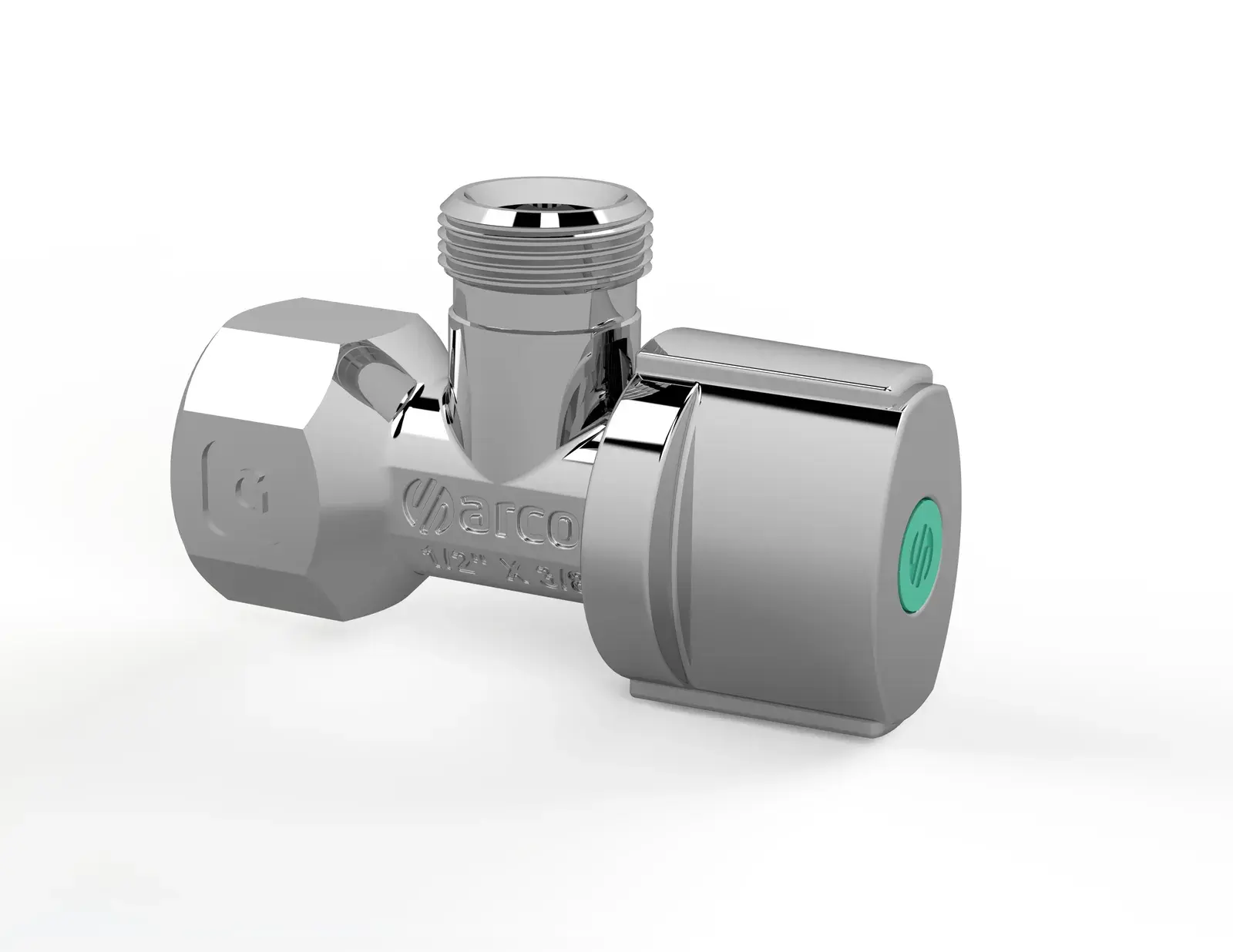

Short angle valve A-80 1/2" F x 1/2" M NV718AC
The ARCO NV718AC from the A-80 range is a short angle valve with a chrome-plated ABS Nova handle. Quarter-turn angle ball valves for surface mounting in tight spaces, with manual operation. The connection is made by threaded ends. The VITAQ system increases the valve life span and flow comfort in hard water areas.
Ideal for reduced spaces.
This version has a 1/2" F x 1/2" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
Compact size makes it easy to install in tight spaces.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | NV718AC |
| Brand | ARCO |
| Series | A-80 |
| Connection | 1/2" F x 1/2" M (supplier notation: 1/2F-1/2M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material nut | Brass CW617N, chrome plated (depending on model) |
| Material seat | NBR |
| Material handle | ABS, chrome plated |
| Material o-rings | EPDM |
| Material stem-ball | Anti-lime polymer, VITAQ |
| Material rosette | Stainless steel (depending on model) |
| Dimension A | 59 mm |
| Dimension B | 28 mm |
| Dimension C | 26 mm |
| Packaging | Individual (outer box 100 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
| EAN code | 8428519080023 |
