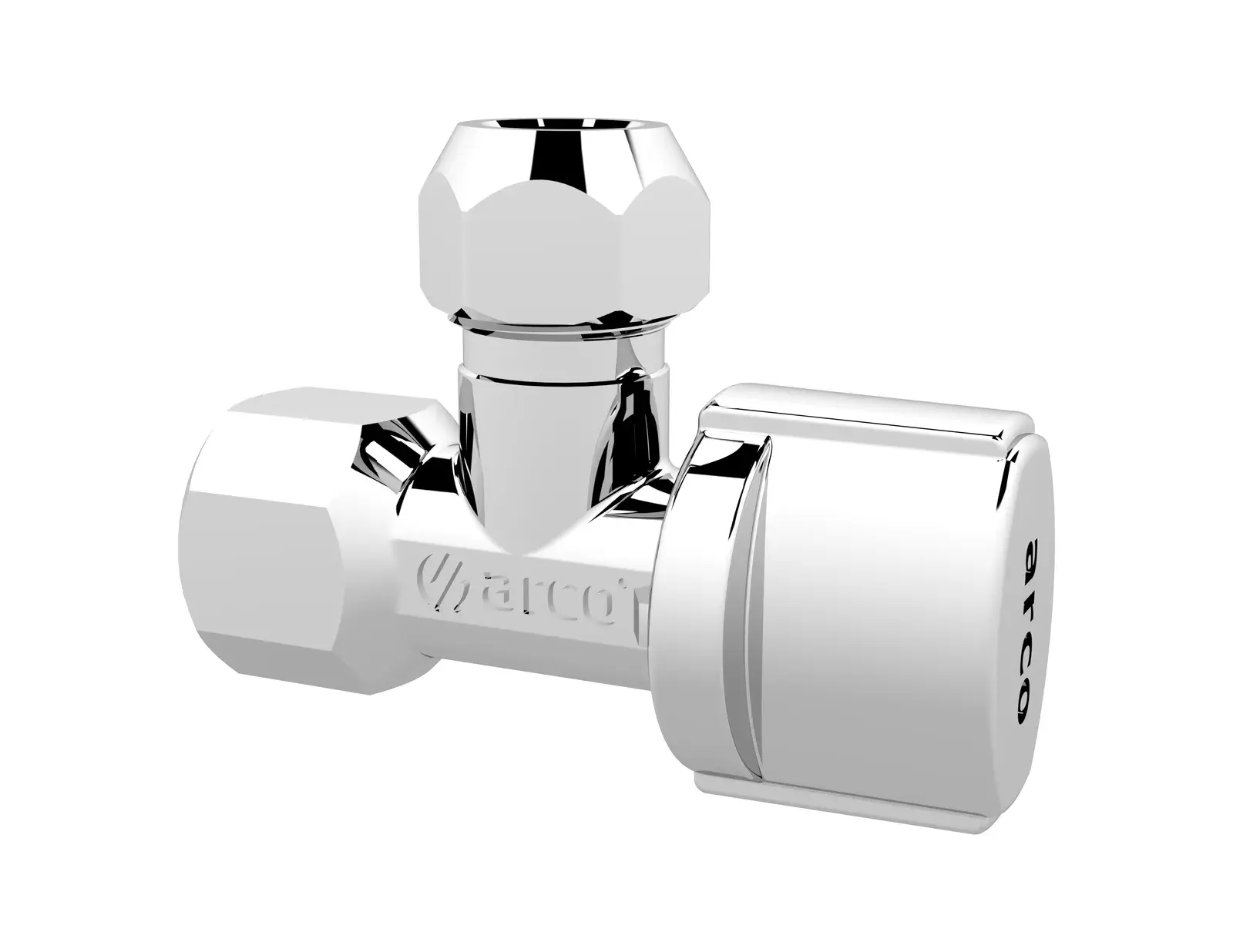

Short angle valve A-80 3/8" F x 3/8" x 10 mm NV715
The ARCO NV715 from the A-80 range is a short angle valve with a chrome-plated ABS Nova handle. Quarter-turn angle ball valves for surface mounting with manual operation where the connection is made by threaded ends.
This version has a 3/8" F x 3/8" x 10 mm connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring, ensures external leaktightness.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
Compact size makes it easy to install in tight spaces.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | NV715 |
| Brand | ARCO |
| Series | A-80 |
| Connection | 3/8" F x 3/8" x 10 mm (supplier notation: 3/8F-3/8 X 10) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material nut | Brass CW614N, chrome plated |
| Material sleeve | PA |
| Material seat | NBR |
| Material handle | ABS, chrome plated |
| Material o-rings | EPDM |
| Material stem-ball | Brass CW614N, brass color |
| Dimension A | 58 mm |
| Dimension B | 27 mm |
| Dimension C | 32 mm |
| Packaging | Individual (outer box 60 pcs) |
| Technical sheet | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 105 |
| EAN code | 8428519037089 |
