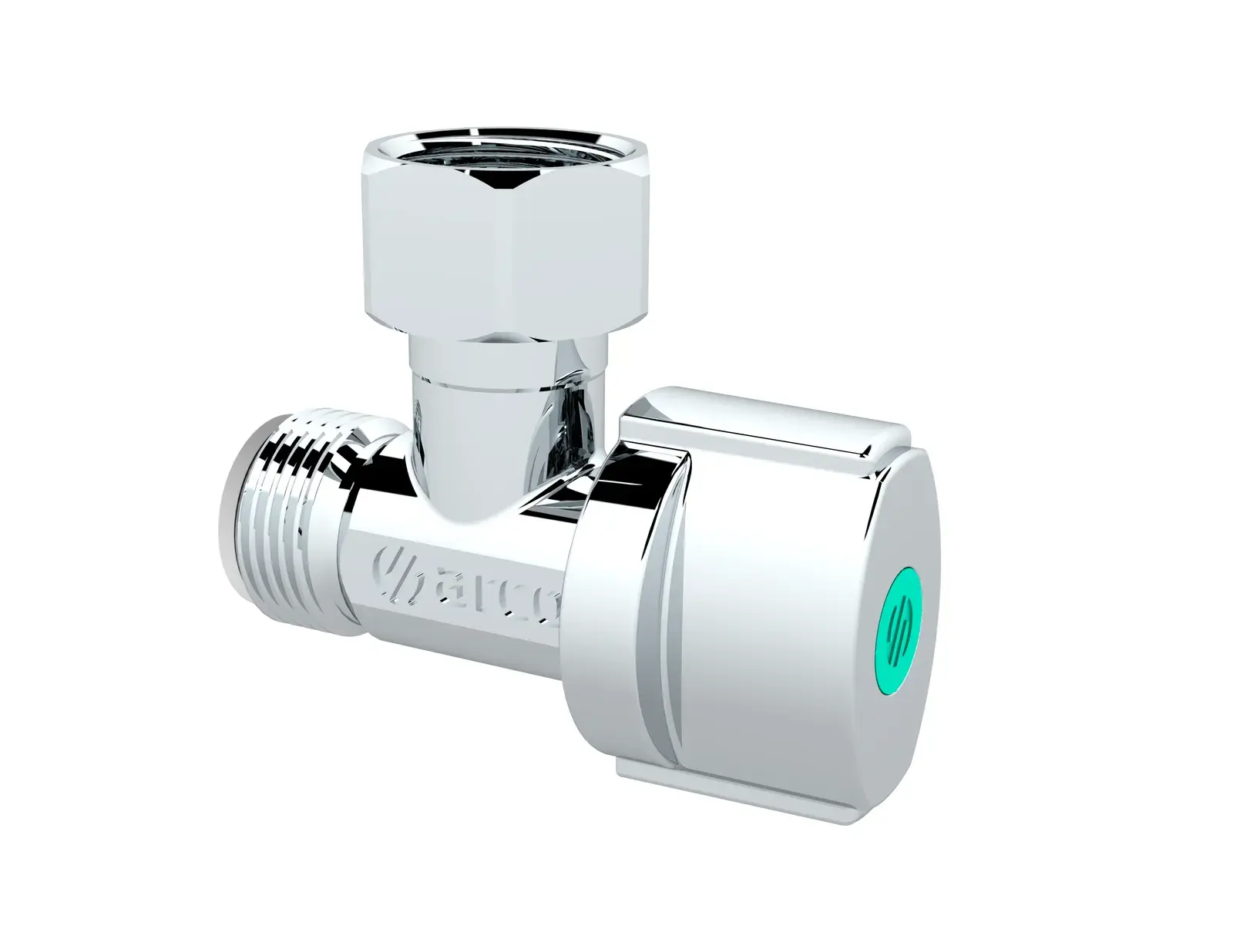

Short angle valve A-80 3/8" M x 3/8" loose nut VNF741
The ARCO VNF741 from the A-80 range is a short angle valve with a chrome-plated ABS Nova handle. A-80 NF VITAQ is a quarter-turn angle valve, manually operated, for visible installations. Its main features are its reduced size and the loose nut connection on the outlet, which make it easy to install in places with tight access. The VITAQ system increases the valve life span and flow comfort in hard water areas.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 3/8" M x 3/8" loose nut connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- NF certified according to referential NF077.
- VITAQ system, more life, less lime at higher temperatures.
- Double o-ring, ensures external leaktightness for more time.
- Bigger handle for a smoother operation, with VITAQ index.
- Easy installation thanks to the loose nut and its compact size.
- Adjustable: the loose nut allows the valve to be set in many positions.
- Inlet washer adapter: more contact surface and better tightness for washer connections. If not required, it is easy to remove.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | VNF741 |
| Brand | ARCO |
| Series | A-80 |
| Connection | 3/8" M x 3/8" loose nut (supplier notation: 3/8M-3/8LN) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material nut | Brass CW614N, chrome plated |
| Material handle | ABS, chrome plated |
| Material o-rings | EPDM |
| Dimension A | 50 mm |
| Dimension B | 20 mm |
| Dimension C | 29 mm |
| Packaging | Supplier packaging: outer box 100 pcs |
| Technical sheet | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 236 |
| Certificate | Certificate NF Sanitary tapware 339-M1-25/1 |
| EAN code | 8428519084687 |
