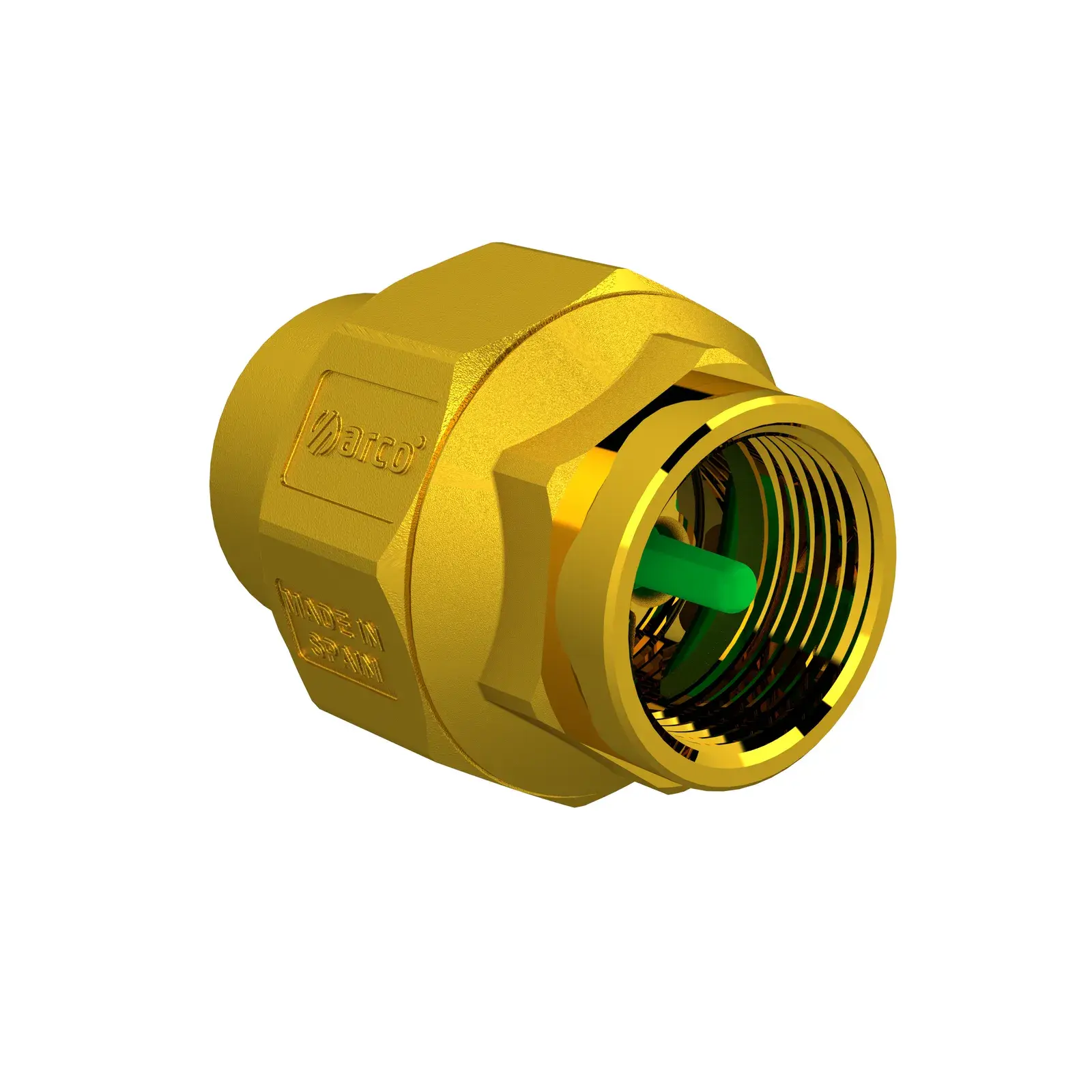

Spring check valve Stop 2" F x 2" F 191208
The ARCO 191208 from the Stop range is a spring check valve. VITAQ anti-pollution check valve with centred longitudinal axis EB type, with connection by threaded union. The VITAQ system increases the valve life span and flow comfort in hard water areas.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 2" F x 2" F connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 85 °C. The body is made of Brass CW617N, brass color.
Features
- VITAQ system: more life, less limescale at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- Piston with low friction.
- More flow with a larger passage section.
- Low noise level.
- Withstands 200,000 cycles (see test conditions).
Application
Recommended for water installations.
- Drinking water networks.
- Plumbing installations of cold water and sanitary hot water.
- Pumping groups.
- Heating installations.
- NOT for use with wastewater.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 191208 |
| Brand | ARCO |
| Series | Stop |
| Connection | 2" F x 2" F (supplier notation: 2F-2F) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 85 °C |
| Material piston | Anti-lime polymer, VITAQ |
| Material spring | Stainless steel |
| Material body | Brass CW617N, brass color |
| Dimension A | 80 mm |
| Packaging | Supplier packaging: inner box 3 pcs, outer box 6 pcs |
| EAN code | 8428519077597 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 193 |
