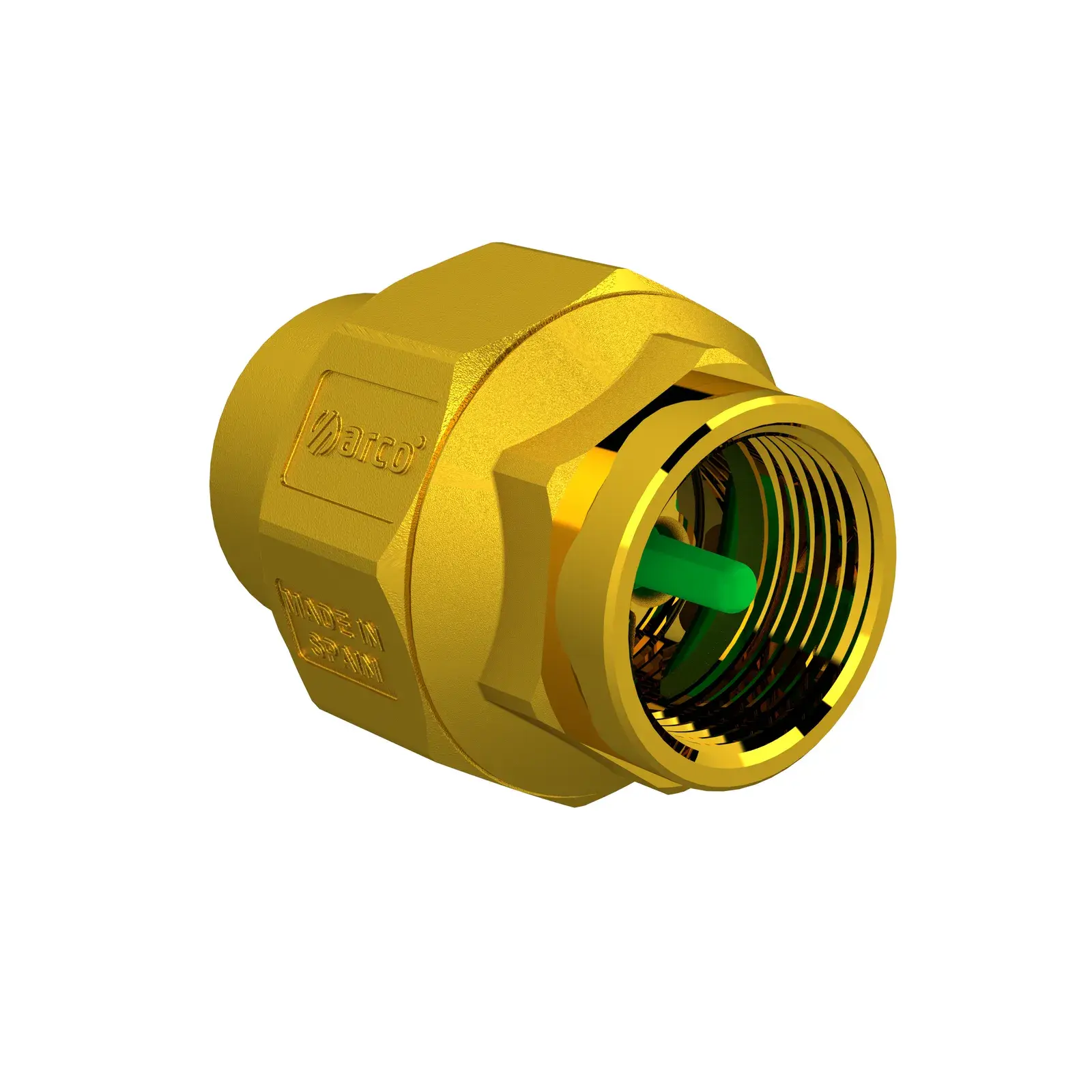

Spring check valve Stop 3/4" F x 3/4" F NPT 191304
The ARCO 191304 from the Stop range is a spring check valve. VITAQ anti-pollution check valve with centred longitudinal axis EB type, with connection by threaded union. The VITAQ system increases the valve life span and flow comfort in hard water areas.
With the renewed VITAQ anti-lime internal mechanism, with higher performance.
This version has a 3/4" F x 3/4" F NPT connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 85 °C. The body is made of Brass CW617N, brass color.
Features
- VITAQ system: more life, less limescale at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- Piston with low friction.
- More flow with a larger passage section.
- Low noise level.
- Withstands 200,000 cycles (see test conditions).
Application
Recommended for water installations.
- Drinking water networks.
- Plumbing installations of cold water and sanitary hot water.
- Pumping groups.
- Heating installations.
- NOT for use with wastewater.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 191304 |
| Brand | ARCO |
| Series | Stop |
| Connection | 3/4" F x 3/4" F NPT (supplier notation: 3/4F-3/4F [NPT]) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 85 °C |
| Material piston | Anti-lime polymer, VITAQ |
| Material spring | Stainless steel |
| Material body | Brass CW617N, brass color |
| Dimension A | 53 mm |
| Packaging | Supplier packaging: inner box 24 pcs, outer box 48 pcs |
| Technical sheet | Download PDF |
