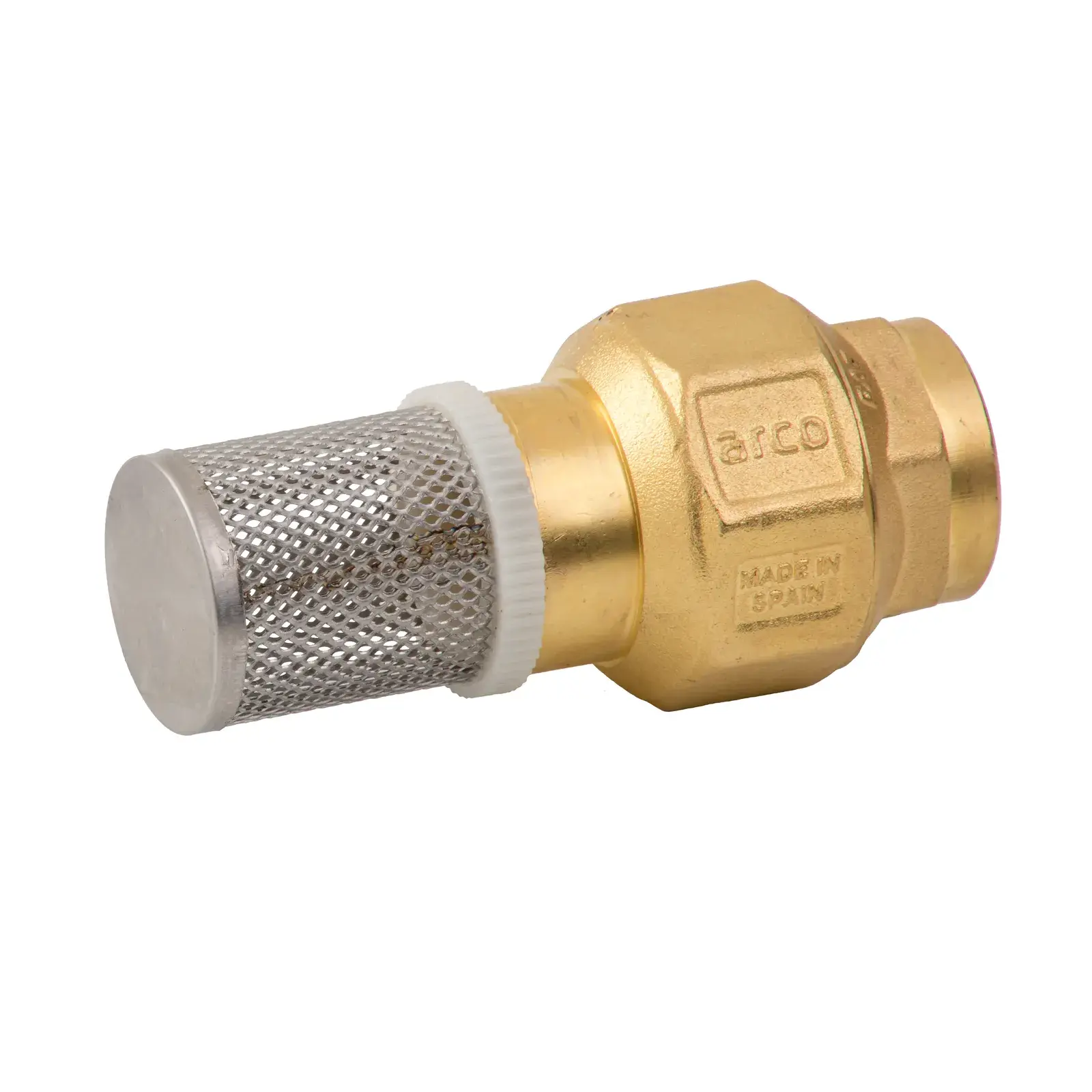

Spring check valve with filter Stop Filter-3/4" F RET02FL
The ARCO RET02FL from the Stop range is a spring check valve with filter. VITAQ anti-pollution check valve type EB with centred longitudinal axis and built-in stainless steel inlet filter. Filtration degree 1,200 micron. The VITAQ system increases the valve life span and flow comfort in hard water areas.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a maximum working pressure of PN 16 bar and a temperature range of 0 to 85 °C. The body is made of Brass CW617N, brass color.
Features
- VITAQ system: more life, less limescale at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- Piston with low friction.
- More flow with a larger passage section.
- Incorporates a 1,200 micron inlet filter.
- Low noise level.
- Withstands 200,000 cycles (see test conditions).
Application
Recommended for cold and hot sanitary water installations that require a check valve with filter on the suction side.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | RET02FL |
| Brand | ARCO |
| Series | Stop |
| Connection | Filter-3/4F |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 85 °C |
| Material filter | Stainless steel |
| Material body | Brass CW617N, brass color |
| Material piston | Anti-lime polymer, VITAQ |
| Material spring | Stainless steel |
| Dimension A | 86 mm |
| Dimension B | 33 mm |
| Packaging | Supplier packaging: outer box 24 pcs |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Hygienic Certificate B.BK.60110.0277.2026 |
