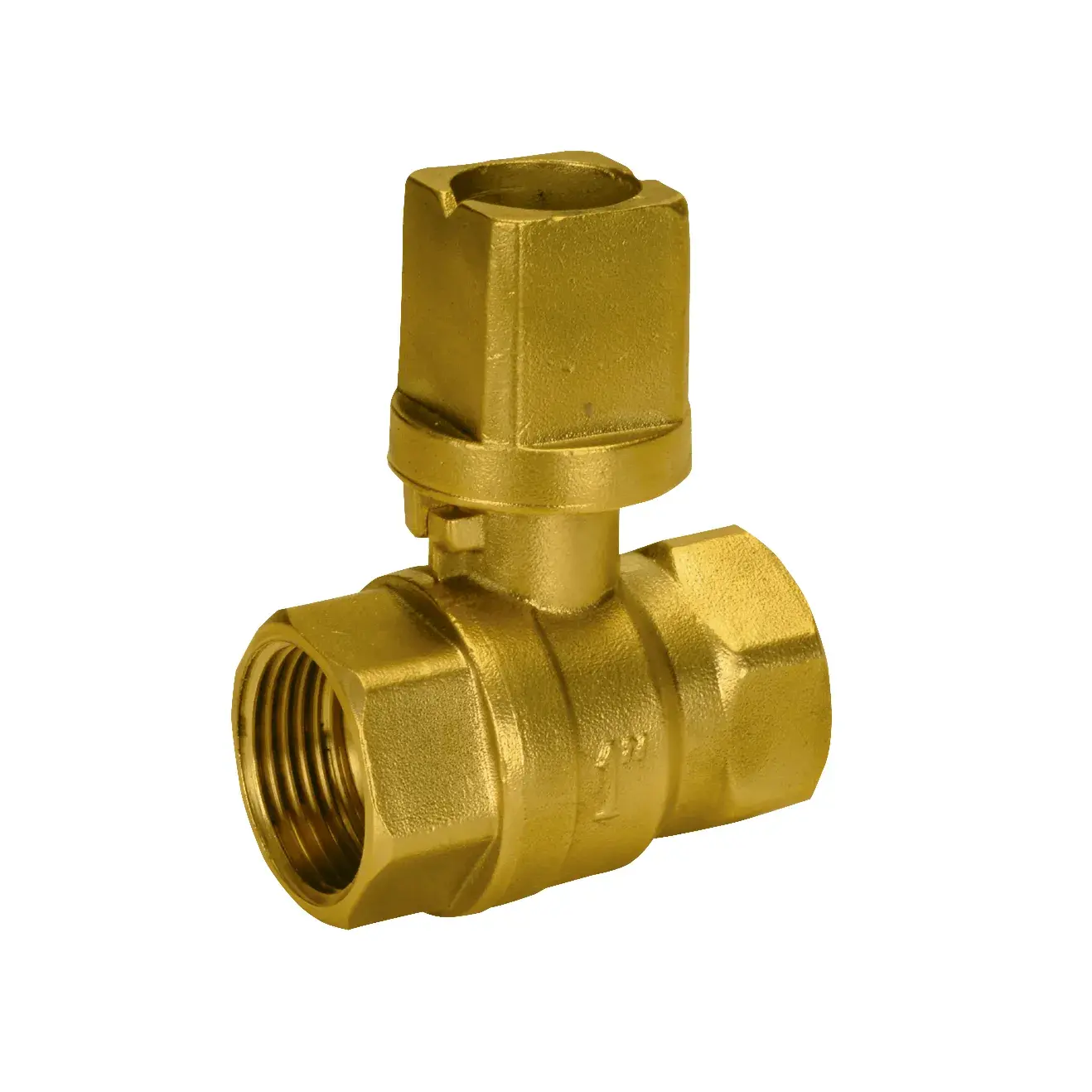

Straight ball valve Sil 1/2" F x 1/2" F C1233AC
The ARCO C1233AC from the Sil range is a straight ball valve with a square 30x30 handle. The series includes a wide range of angle and straight models. Designed according to UNE 19804.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 1/2" F x 1/2" F connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 65 °C. The body is made of Brass CW617N, brass color.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- Nickel-free water passage for greater healthiness.
- VITAQ system: more life, less limescale, depending on the model.
- 100% valves are tested for inner leakage.
- Double o-ring, ensures external leaktightness.
- Maximum thread length for demanding installations.
- Outlet models for water meters incorporate an internal check valve.
- Strong construction and safe installations.
Application
Due to their design and materials, they are suitable for use in cold water meter installations, in battery or single installations, service connections and drinking water networks.
And in general, all those applications that require a valve capable of shutting off the supply of a fluid, guaranteeing tightness in accordance with the specified service conditions.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | C1233AC |
| Brand | ARCO |
| Series | Sil |
| Connection | 1/2" F x 1/2" F (supplier notation: 1/2F-1/2F) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 65 °C |
| Material body | Brass CW617N, brass color |
| Dimension A | 60 mm |
| Dimension B | 29 mm |
| Dimension C | 54 mm |
| Packaging | Supplier packaging: inner box 18 pcs, outer box 36 pcs |
| Technical sheet | Download PDF |
| EAN code | 8428519047965 |
