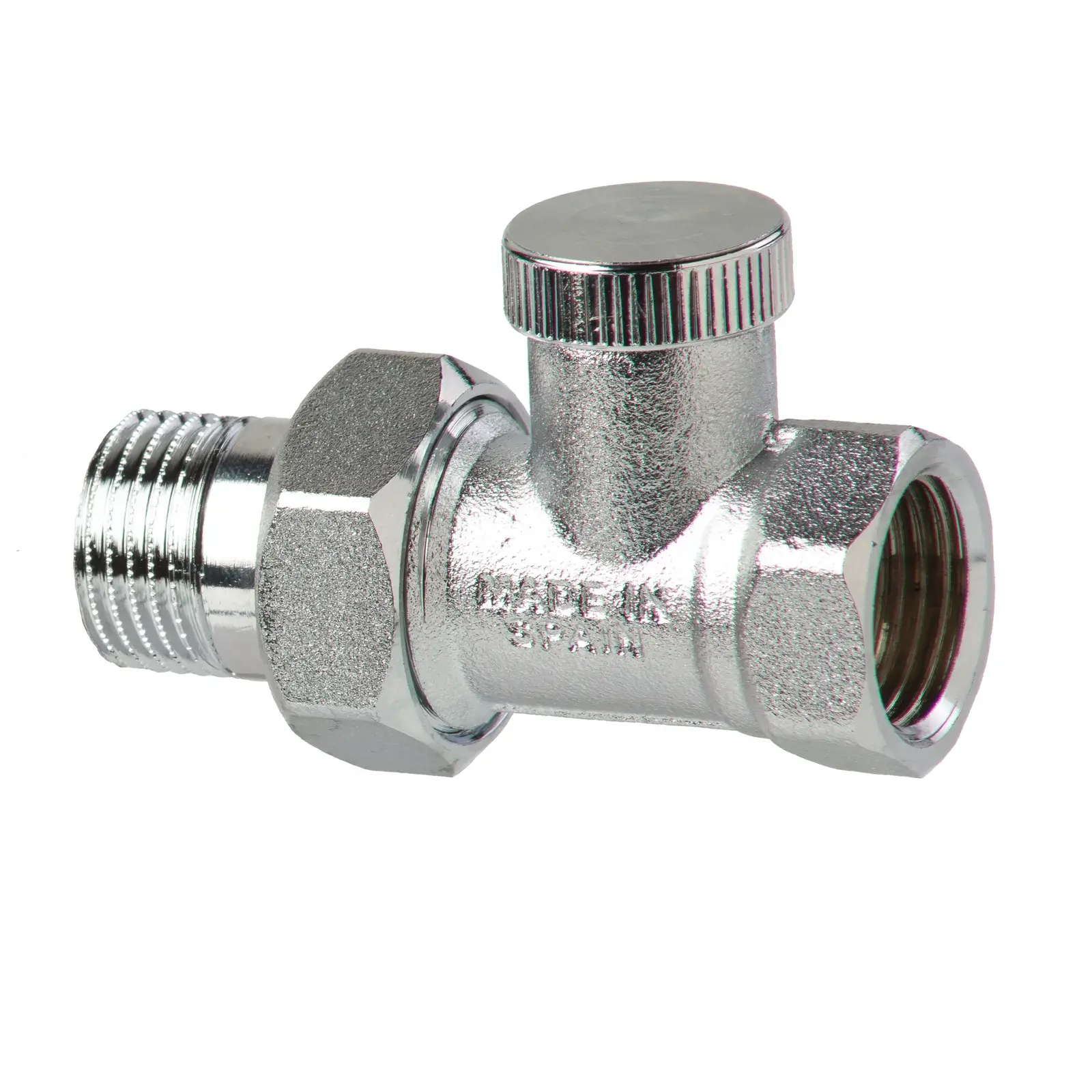

Straight lockshield Teide Plus with metal cap 1/2" F x 1/2" M 507365
The ARCO 507365 from the Teide Plus range is a straight lockshield with metal cap. Lockshield of the TEIDE PLUS series. The lockshield is used to balance the heating system; a double EPDM O-ring on the stem ensures external tightness.
This version has a 1/2" F x 1/2" M connection, a maximum working pressure of PN 10 bar and a temperature range of 0 to 110 °C. The body is made of brass.
Application
For individual or collective two-pipe heating systems. Nominal pressure 10 bar, hot water up to 110 °C.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 507365 |
| Brand | ARCO |
| Series | Teide Plus |
| Connection | 1/2" F x 1/2" M (supplier notation: 1/2F-1/2M) |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 110 °C |
| Material body | Brass |
| Dimension A | 68 mm |
| Dimension B | 45 mm |
| Dimension C | 30 mm |
| Packaging | Per piece (inner box 10 pcs, outer box 60 pcs) |
| EAN code | 8428519062197 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
