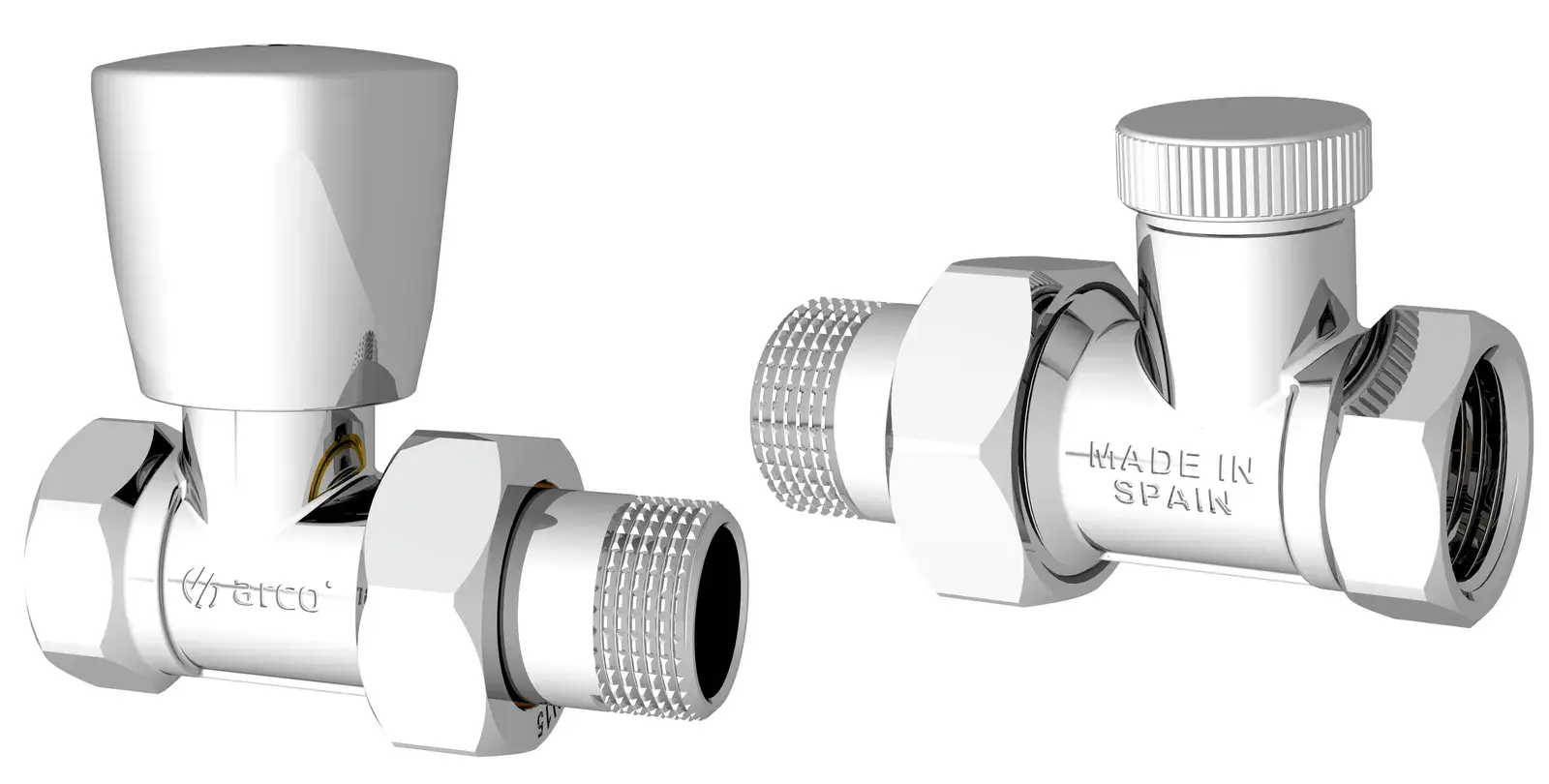

Straight radiator valve kit Teide Plus in extra polished chrome 1/2" F x 1/2" M KCM23
The ARCO KCM23 from the Teide Plus range is a straight radiator valve kit in extra polished chrome. Radiator valve kit of the TEIDE PLUS series, consisting of a manual radiator valve and a matching lockshield.
This version has a 1/2" F x 1/2" M connection, a maximum working pressure of PN 10 bar and a temperature range of 0 to 110 °C. The body is made of brass.
This set contains the ARCO articles 503565, 507565.
Application
For individual or collective two-pipe heating systems. Nominal pressure 10 bar, hot water up to 110 °C.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | KCM23 |
| Brand | ARCO |
| Series | Teide Plus |
| Connection | 1/2" F x 1/2" M (supplier notation: 1/2F-1/2M) |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 110 °C |
| Material body | Brass |
| Set contents (article codes) | 503565, 507565 |
| Packaging | Per piece (outer box 12 pcs) |
| EAN code | 8428519068038 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
