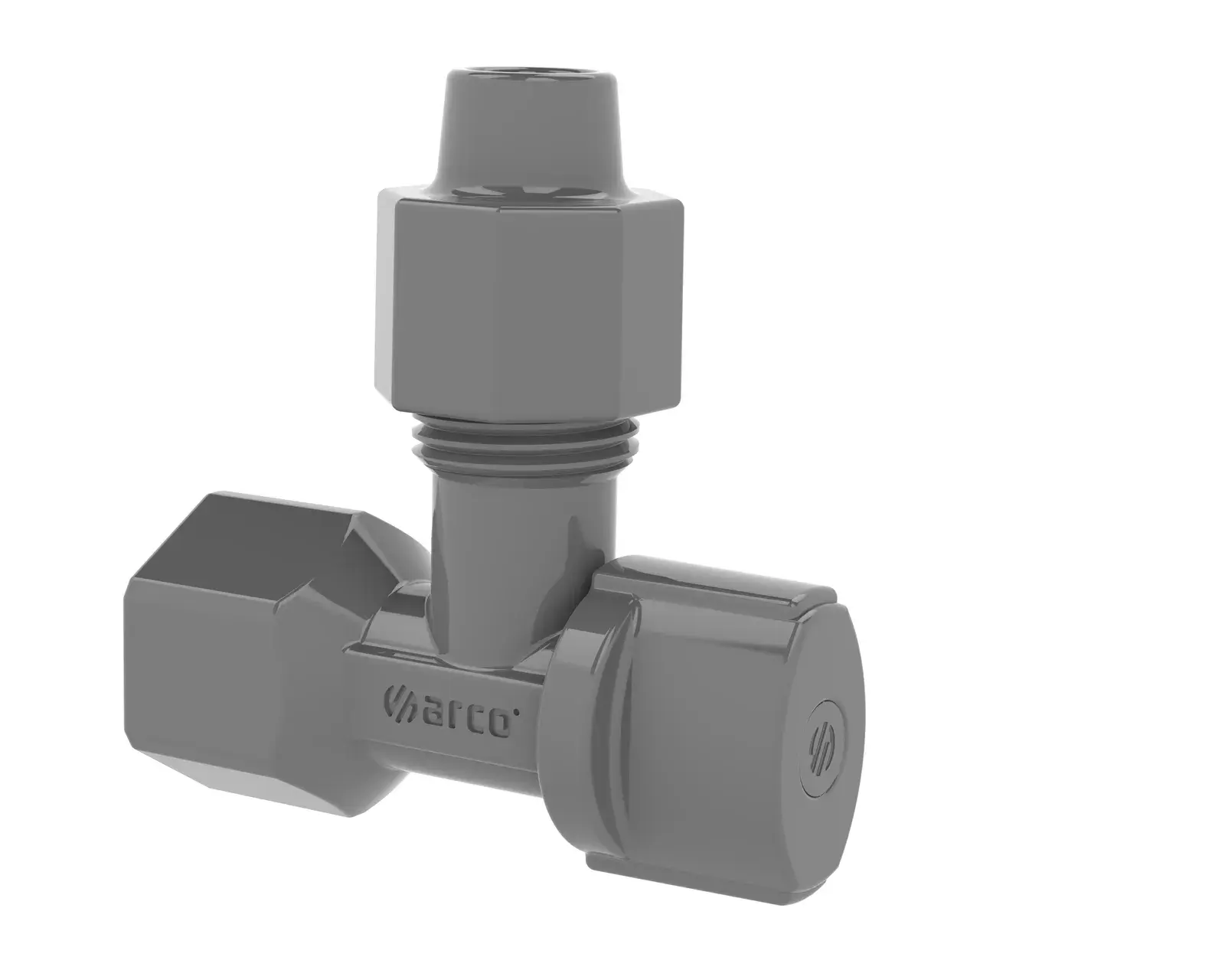

Technical polymer angle valve A-80 1/2" F x 1/2" x 10 mm 285020
The ARCO 285020 from the A-80 range is a technical polymer angle valve with a grey ABS Nova handle. Quarter-turn angle ball valves for surface mounting with manual operation. The supply pipe is connected by female thread and the appliance by male thread or by compression for 10 mm PEX pipe (not included).
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 1/2" F x 1/2" x 10 mm connection, a maximum working pressure of PN 10 bar and a temperature range of 0 to 65 °C. The body is made of POM, grey.
Features
- Excellent compatibility with treated seawater.
- 100% of the valves are tested for leakage.
- Double o-ring for double external leaktightness security.
- Bigger handle for a smoother operation.
- Strong one-piece body construction for a secure installation.
- Easy installation thanks to the compact size.
- No electroplated materials.
Application
Designed for indoor installations flushing with seawater. Allows individual shut-off of the water supply to sanitary fittings.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 285020 |
| Brand | ARCO |
| Series | A-80 |
| Connection | 1/2" F x 1/2" x 10 mm (supplier notation: 1/2F-1/2 X 10) |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 65 °C |
| Material sleeve | PA |
| Material body | POM, grey |
| Material nut | POM, grey |
| Material seat | NBR |
| Material o-ring | NBR |
| Material ball-stem | POM |
| Material handle | ABS, grey |
| Dimension A | 68 mm |
| Dimension B | 37 mm |
| Dimension C | 58 mm |
| Packaging | Individual (outer box 74 pcs) |
| Technical sheet | Download PDF |
| Certificate | Water Supplies Certificate WSD 3321/2025 T/J (25/2025) |
