Thermostatic angle radiator valve kit Teide Termo Plus 1/2" F x 1/2" M, head connection M30 KCT01

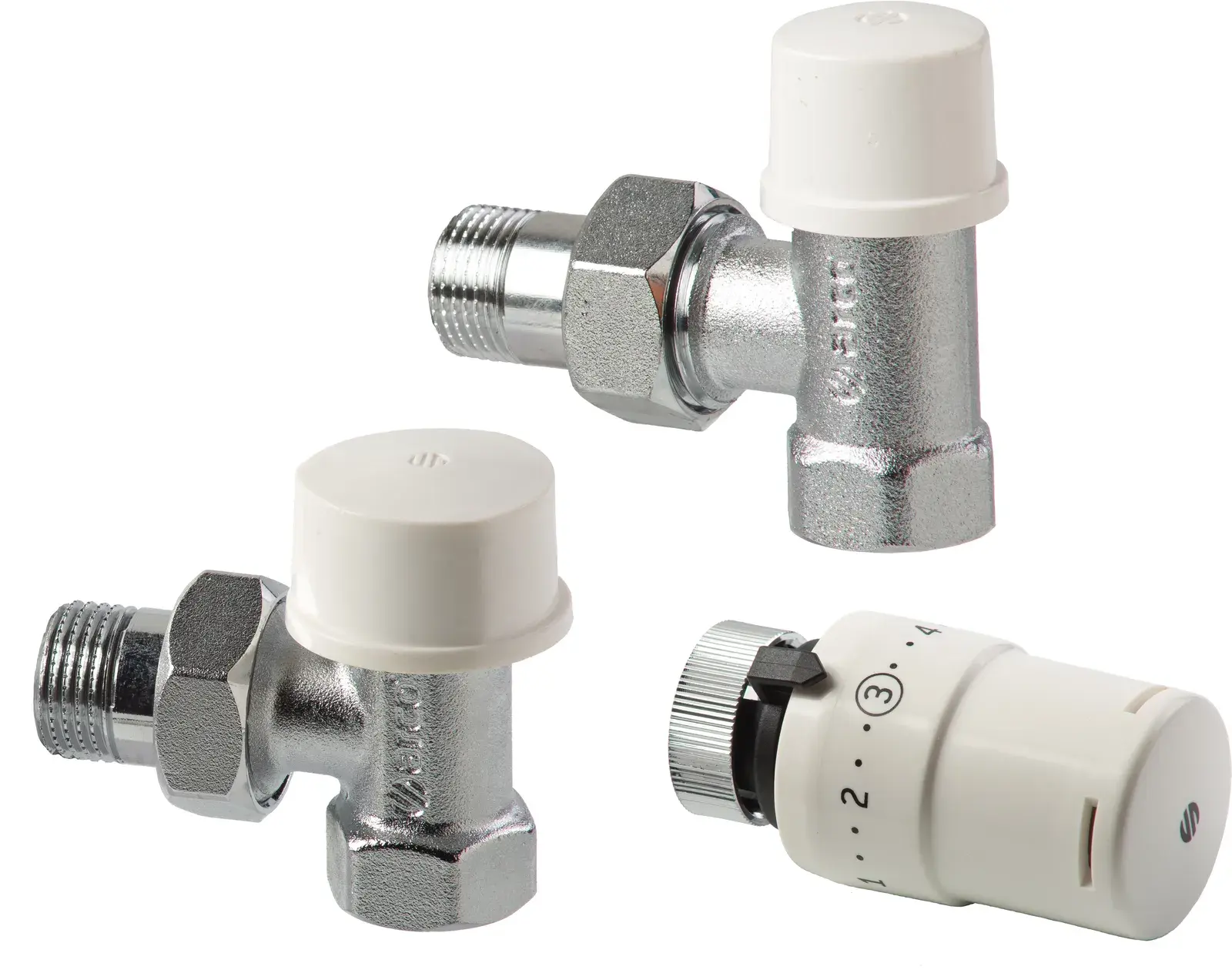

The ARCO KCT01 from the Teide Termo Plus range is a thermostatic angle radiator valve kit. Thermostatic radiator valve kit of the TEIDE TERMO PLUS series, consisting of a thermostatic radiator valve, a lockshield and a thermostatic head or fitting (see set contents).
This version has a 1/2" F x 1/2" M, head connection M30 connection, a maximum working pressure of PN 10 bar and a temperature range of 0 to 110 °C. The body is made of brass.
This set contains the ARCO articles 507205, 501275, 880040.
Application
For individual or collective two-pipe heating systems. Nominal pressure 10 bar, hot water up to 110 °C, room setting 6 to 28 °C.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | KCT01 |
| Brand | ARCO |
| Series | Teide Termo Plus |
| Connection | 1/2" F x 1/2" M, head connection M30 (supplier notation: 1/2F-1/2M - M30) |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 110 °C |
| Material body | Brass |
| Set contents (article codes) | 507205, 501275, 880040 |
| Packaging | Per piece (outer box 18 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
