Thermostatic angle radiator valve kit Teide Termo Plus for copper pipe 12 mm x 3/8" M, head connection M28 KCT12

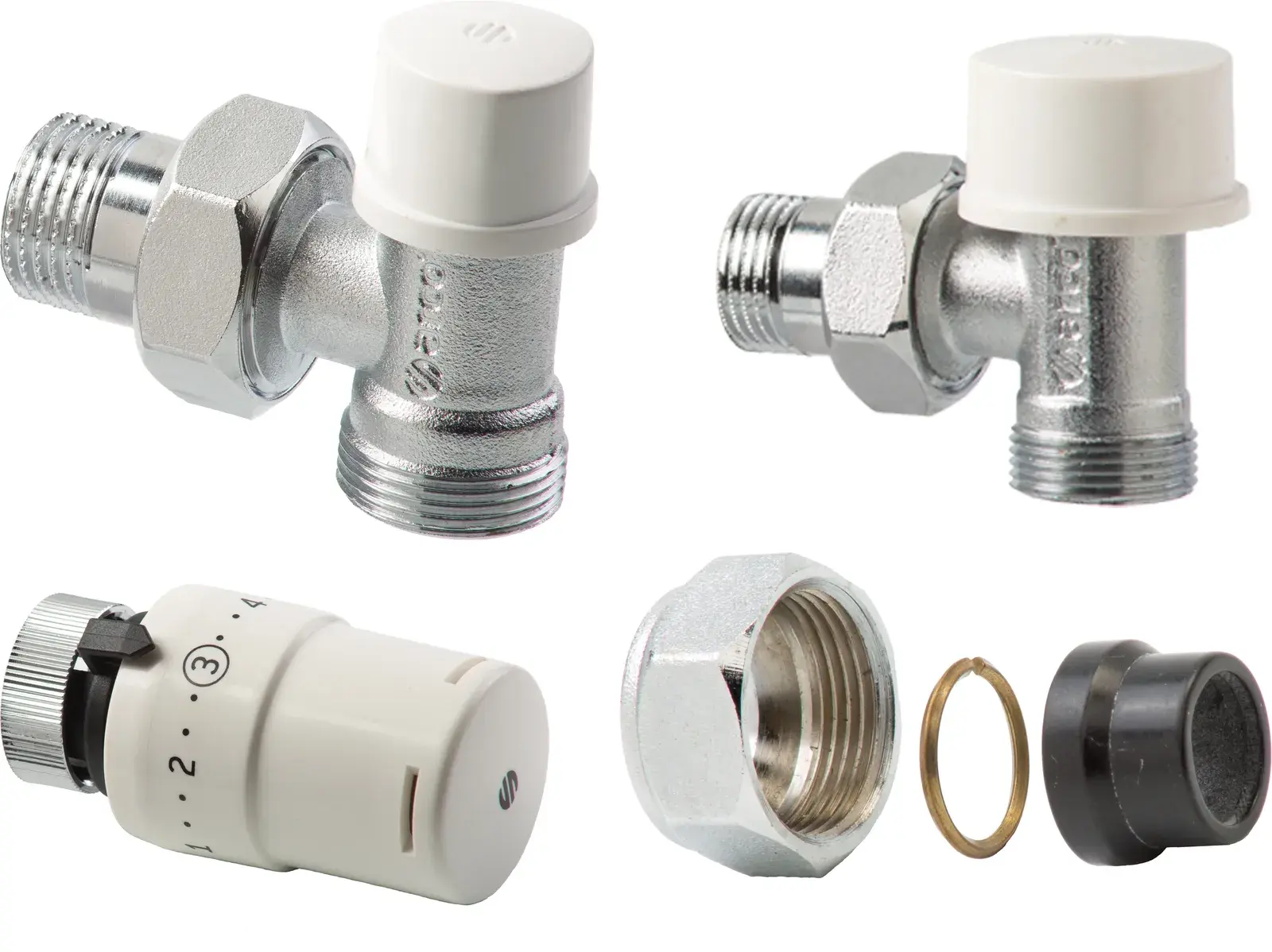

The ARCO KCT12 from the Teide Termo Plus range is a thermostatic angle radiator valve kit for copper pipe. Thermostatic radiator valve kit of the TEIDE TERMO PLUS series, consisting of a thermostatic radiator valve, a lockshield and a thermostatic head or fitting (see set contents).
This version has a 12 mm x 3/8" M, head connection M28 connection, a maximum working pressure of PN 10 bar and a temperature range of 0 to 110 °C. The body is made of brass.
This set contains the ARCO articles 507215, 501210, 880030, C4378.
Application
For individual or collective two-pipe heating systems. Nominal pressure 10 bar, hot water up to 110 °C, room setting 6 to 28 °C.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | KCT12 |
| Brand | ARCO |
| Series | Teide Termo Plus |
| Connection | 12 mm x 3/8" M, head connection M28 (supplier notation: 12-3/8M - M28) |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 110 °C |
| Material body | Brass |
| Set contents (article codes) | 507215, 501210, 880030, C4378 |
| Packaging | Per piece (outer box 18 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
